Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Deye
-
Model Number:
-
SUN-3.6/5/6/7.6/8K-SG01LP1-EU
-
Input Voltage:
-
125-500VDC
-
Output Voltage:
-
220/230/240Vac
-
Output Current:
-
18-40A
-
Output Frequency:
-
50/60HZ
-
Size:
-
330W x 580H x232D
-
Certificate:
-
CEI 0-21, IEC 62116, RD 1699, C10-11, IEC 62116,G99, VDE 0126-1-1, RD 1699
-
Warranty:
-
5/10Years, 5/10Years
-
Weight:
-
24kg
-

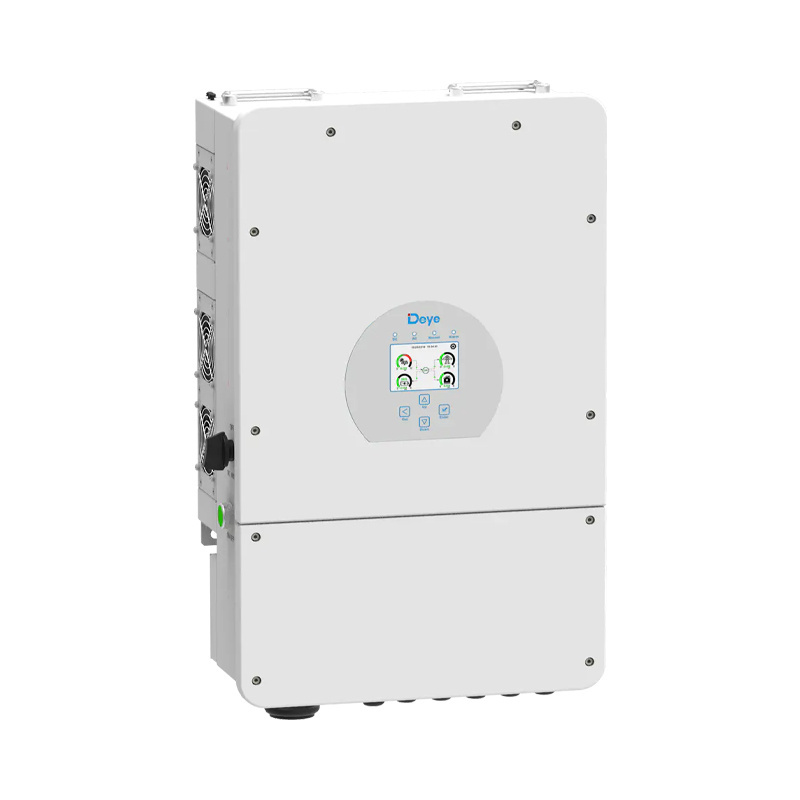

Product name:
-
solar hybrid inverter
-
Application:
-
Solar Power System Home
-
Protection:
-
IP65
-
Max PV Input Power:
-
4.68-10.4KW
-
Communication:
-
RS485; CAN
-
MPPT Efficiency:
-
99.9%
-
Cooling:
-
Fan
-
Brand:
-
Deye
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
97.60%
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Deye
-
Model Number:
-
SUN-3.6/5/6/7.6/8K-SG01LP1-EU
-
Input Voltage:
-
125-500VDC
-
Output Voltage:
-
220/230/240Vac
-
Output Current:
-
18-40A
-
Output Frequency:
-
50/60HZ
-
Size:
-
330W x 580H x232D
-
Certificate:
-
CEI 0-21, IEC 62116, RD 1699, C10-11, IEC 62116,G99, VDE 0126-1-1, RD 1699
-
Warranty:
-
5/10Years, 5/10Years
-
Weight:
-
24kg
-
Product name:
-
solar hybrid inverter
-
Application:
-
Solar Power System Home
-
Protection:
-
IP65
-
Max PV Input Power:
-
4.68-10.4KW
-
Communication:
-
RS485; CAN
-
MPPT Efficiency:
-
99.9%
-
Cooling:
-
Fan
-
Brand:
-
Deye
Specification
|
Model
|
SUN-3.6K
-SG05LP1-EU |
SUN-5K
-SG05LP1-EU |
SUN-8K
-SG05LP1-EU |
|||
|
Battery Input Data
|
|
|
|
|||
|
Battery Type
|
Lead-acid or Li-lon
|
|
|
|||
|
Battery Voltage Range (V)
|
40~60
|
|
|
|||
|
Max. Charging Current (A)
|
90
|
120
|
190
|
|||
|
Max. Discharging Current (A)
|
90
|
120
|
190
|
|||
|
External Temperature Sensor
|
Yes
|
|
|
|||
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
|
|
|||
|
PV String Input Data
|
|
|
|
|||
|
Max. DC Input Power (W)
|
4680
|
6500
|
10400
|
|||
|
Rated PV Input Voltage (V)
|
370 (125~500)
|
|
|
|||
|
MPPT Voltage Range (V)
|
150-425
|
|
|
|||
|
Full Load DC Voltage Range (V)
|
300-425
|
|
200-425
|
|||
|
PV Input Current (A)
|
|
|
|
|||
|
No.of MPP Trackers
|
2/1
|
|
2/2
|
|||
|
AC Output Data
|
|
|
|
|||
|
Rated AC Output and UPS Power (W)
|
3600
|
5000
|
8000
|
|||
|
Max. AC Output Power (W)
|
3690
|
5500
|
8800
|
|||
|
AC Output Rated Current (A)
|
16.4
|
22.7
|
36.4
|
|||
|
Max. AC Current (A)
|
18
|
25
|
40
|
|||
|
Max. Continuous AC Passthrough (A)
|
35
|
|
50
|
|||
|
Peak Power (offff grid)
|
2 time of rated power, 10 S
|
|
|
|||
|
Output Frequency and Voltage
|
50/60Hz; L/N/PE 220/230Vac (single phase)
|
|
|
|||
|
Grid Type
|
Single Phase
|
|
|
|||
|
General Data
|
|
|
|
|||
|
Operating Temperature Range (℃)
|
-45~60℃, >45℃ derating
|
|
|
|||
|
Cooling
|
Natural cooling
|
|
|
|||
|
Noise (dB)
|
<30 dB
|
|
|
|||
|
Communication with BMS
|
RS485; CAN
|
|
|
|||
|
Size (mm)
|
330W x 580H x232D
|
|
|
|||
|
Weight (kg)
|
24
|
|
|
|||
|
Protection Degree
|
IP65
|
|
|
|||
|
Warranty
|
5 years
|
|
|
|||
