Laser Spot Jewellery Laser Welding Machine For Gold And Silver soldering machine jewelry laser welder for gold

Laser Spot Jewellery Laser Welding Machine For Gold And Silver soldering machine jewelry laser welder for gold

FOB Reference Price: Get Latest Price

≥1 Sets

US $2550

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Hubei, China

Brand Name:: Toch Tech

Single Pulse Energy:: 100j

Pulse Width:: 0.1-10ms

Wavelength:: 1064nm, 1064nm

Focal Spot Diameter:: 0.1-3mm

Dimensions:: 588x350x290 mm

Weight (KG):: 51 KG

Laser type:: YAG laser

Rated power:: 60w 100w 150w 200w

Peak power:: 2kw

Laser energy:: 100j

Pulse width:: 0.1-15ms

Pulse frequency:: 1-10KHZ

Cooling way:: Water cooling

Observation system:: Microscope + camera system

Control system:: LCD touch control panel

Quick Details

Max. Output Power:: 60w 100w 150w 200w

Usage:: Jewelry welding

Laser Source Brand:: YAG

Place of Origin:: Hubei, China

Brand Name:: Toch Tech

Single Pulse Energy:: 100j

Pulse Width:: 0.1-10ms

Wavelength:: 1064nm, 1064nm

Focal Spot Diameter:: 0.1-3mm

Dimensions:: 588x350x290 mm

Weight (KG):: 51 KG

Laser type:: YAG laser

Rated power:: 60w 100w 150w 200w

Peak power:: 2kw

Laser energy:: 100j

Pulse width:: 0.1-15ms

Pulse frequency:: 1-10KHZ

Cooling way:: Water cooling

Observation system:: Microscope + camera system

Control system:: LCD touch control panel

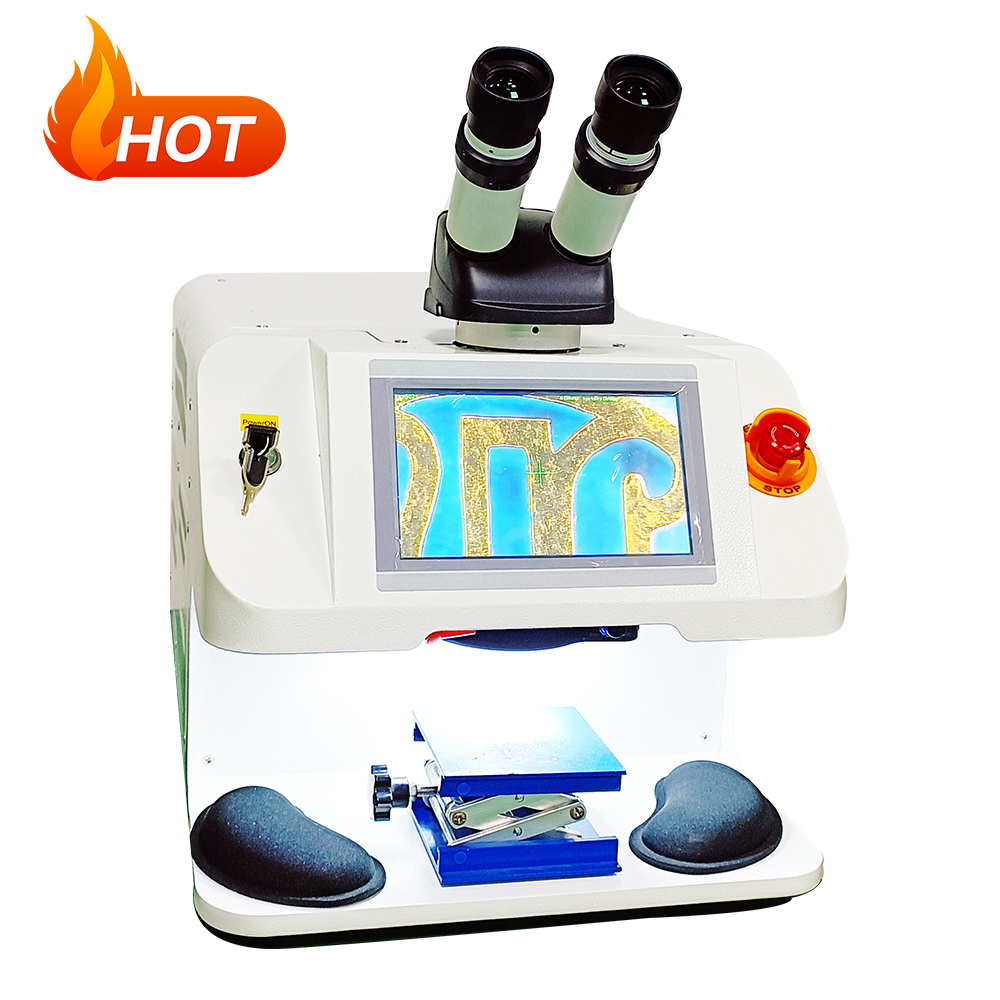

60W 100W 150W 200W Jewelry laser welding machine

60W 100w 150w 200w

Jewelry laser spot welding machine is a laser equipment professionally used for welding in the metal jewelry industry. It is mainly used for filling holes, spot welding and repairing gold, silver, stainless steel, titanium alloy and other alloy jewelry.

It has the advantages of high precision, low loss, super-fast speed and so on. The new built-in water-cooled vertical jewelry welding machine has a more compact structure and an automatic water addition function, which is easier to operate.

100W machine referring welding parameters

number	materials	current(A)	PW(ms)	Freq.(HZ)	Spot(mm)
1	18K	40 to 55	1.5 to 3	3 to 6	0.8-1.5
2	Silver(925)	85 to 95	2	2 to 5	0.2-0.6
3	Stainless	35	1.5	3 to 10	0.8-2.0
4	Red Copper	100 to 120	2	2 to 3	0.2-0.6
5	Aluminium	55 to 85	2 to 5	3 to 6	0.5-1.5

150W machine referring welding parameters

number	materials	current(A)	PW(ms)	Freq.(HZ)	Spot(mm)
1	18K	25 to 40	1.5 to 3	3 to 8	0.8-2.0
2	Silver(925)	65 to 75	2	3 to 6	0.2-0.6
3	Stainless	25	1.5	3 to 10	0.8-2.0
4	Red Copper	80 to 100	2	2 to 3	0.2-0.6
5	Aluminium	75 to 65	2 to 5	3 to 6	0.5-1.5
