Quick Details
-
Brand Name:
-
Fine-boon
-
Treatment:
-
Mo-Mn metalization
-
Finishing:
-
Nickel coating
Quick Details
-
Material:
-
Alumina Ceramic
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
Customized
-
Brand Name:
-
Fine-boon
-
Treatment:
-
Mo-Mn metalization
-
Finishing:
-
Nickel coating

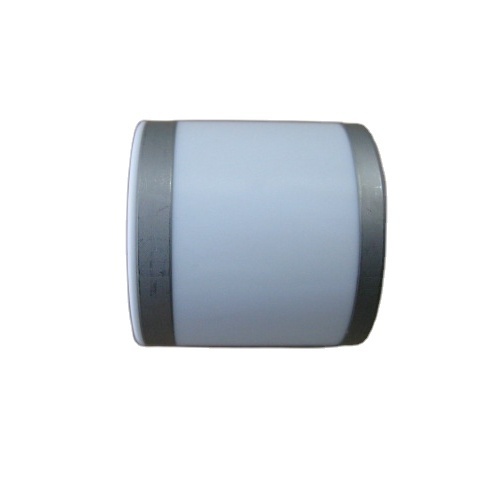

Custom Advanced Metalized Vacuum Ceramic Parts for Brazing with Metal
Material : 96.0% alumina or 99.5% high purity alumina with Metallization treatment and nickel coating
- Either Cold Iso-static Press or dry press formed bodies with secondary fine-machining
- High precision and good appearance after metalization
- Tightly hermetic sealing result, no air leakage
- Easy for brazing with kovar alloy directly
- High bonding strength after brazing with kovar parts
- Good insulation, anti-magnetic, static electricity-free character for feedthrough use
- Excellent thermal shock resistance and good thermal stability after brazing
- Outstanding bending strength and toughness
- Anti corrosion & abrasion resistance in harsh working environments
- Professional ceramic R&D team is available for your requests of various metalized ceramic parts
|
Product Name
|
Custom Advanced Metalized Vacuum Ceramic Parts for Brazing with Metal
|
|
Compositions
|
96.0% alumina or 99.5% high purity alumina (Al
2
O
3
)
|
|
Metalization
|
Sintered with Molybdenum & Manganese (Mo+Mn), then Nickel plating
|
|
Mo+Mn Layer
|
25 +/-10μm in thickness
|
|
Nickel Layer
|
2 -10μm in thickness
|
|
Material Density
|
3.90 g/cm
3
|
|
Tolerance
|
+/- 0.005mm
|
|
Finishing
|
Ra 0.02
|
|
Max. Using Temperature
|
1650
o
C
|
|
Using Fields
|
Feedthrough, Fuel cell, PVD or CVD machines, Measuring Pump, cotrolling valves, Motor, ventilation fan
|
Belows are the Various Standard Alumina Performance Characters Data Sheets
& Various Zirconia Performance Comparison sheets with other ceramic materials
Press Machines
We can provied extrusion, dry press and CIP press forming for ceramics green bodies.
Sinter Furnaces
We have many electric sintering furance with different size available for green body sintering use.
Quality Control
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
Factory Birdview
Workshops View
Our workshops for various advanced vacuum ceramic parts production
Packing Details: Individual bubble bags for each advanced metallized ceramic part, seaworthy package
Delivery Details: 30 days after purchase order of metallized ceramic parts was issued
1. Shockproof bubble bags for each vacuum ceramic part separately in carton
2. All cartons are loaded in ply-wood standard pallets with plastic films wraped
3. All shipping methods are available for your choice
Q: Are you trading company or manufacturer?
A: We are a professional advanced ceramic factory with our own exporting office in Shanghai.
Q: How long is your delivery time for metalized vacuum ceramic parts?
A: Generally it is 30 days for our metalized ceramic parts after your purchase order was issued to us
Q: Do you provide samples of metalized ceramic parts? is it free or charged?
A: Yes, we could offer the sample of our own metalized ceramic parts for free, but don't afford freight.
Q: What is your terms of payment for metalized ceramic parts?
A: Payment<=1000 USD, 100% in advance before shipping.
Payment>=1000 USD, 30% T/T in advance ,balance before shipment.
