Quick Details
-
Power:
-
66kw
-
use:
-
farm tractor/palm transportation
-
colour:
-
Yellow green
-
by wheel:
-
4wd 90hp farm plam tractor
-
cabin:
-
door can be choosed ,fan MP3
-
tyre:
-
professional ming tyre
-
gear box:
-
EQ140+130
-
horse power:
-
60hp~90hp farm plam tractor
-
carriage:
-
customized farm plam tractor
-
brake system:
-
oil brake/air brake
Quick Details
-
Brand Name:
-
HuiLi
-
Model Number:
-
HL134-V
-
Place of Origin:
-
Guangxi, China
-
Power:
-
66kw
-
use:
-
farm tractor/palm transportation
-
colour:
-
Yellow green
-
by wheel:
-
4wd 90hp farm plam tractor
-
cabin:
-
door can be choosed ,fan MP3
-
tyre:
-
professional ming tyre
-
gear box:
-
EQ140+130
-
horse power:
-
60hp~90hp farm plam tractor
-
carriage:
-
customized farm plam tractor
-
brake system:
-
oil brake/air brake

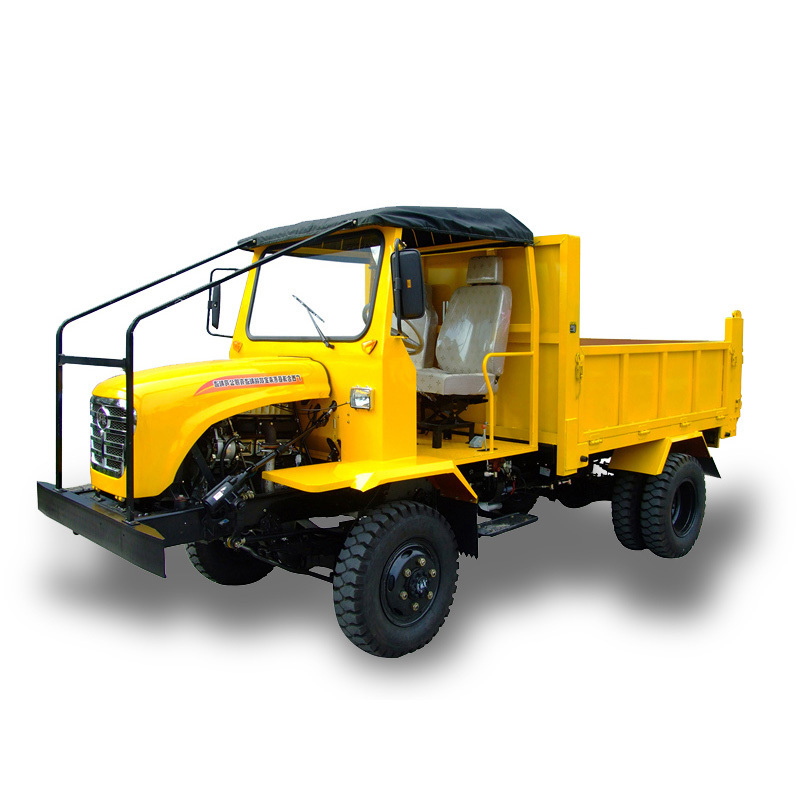

China Huili brand 10T 90hp farm plam tractor
| HL134-V palm tractors dimensions | Overall dimensions (LxWxH)mm | 5100*1900*2300 | |
| Carriage dimension (LxWxH)mm | 2600*1900*600 | ||
| Driving type | 4x4 | ||
| Wheel base (mm) | 2800mm | ||
| Wheel track (front/rear) (mm) | 1470 / 1620 | ||
| Min. ground clearance (mm) | 190 mm | ||
| Weight data | Curb weight (kg) | 2830kg | |
| Rated payload ( kg ) | 5000kg | ||
| Persons in cab (persons) | 2 | ||
|
palm tractors
performance |
Max. speed ( km/h ) | 60 | |
| Max. slope of climb ( % ) | 25 | ||
|
Engine of
palm tractors
|
Model | YN4102 | |
| Type | Four-cylinder, water cooling, Four-stroke diesel engine | ||
| Displacement ( L ) | 2.493 | ||
| Rated power ( kw/rpm ) | 70KW | ||
| Horse power | 95hp | ||
| Gearbox | Model | EQ140F+130 (5+1)*4 | |
| Suspension | Front suspension/Leaf spring number |
front 9pcs,thickness 8mm;
rear 10+7pcs,thickness 10mm |
|
| Wheels and tyre size (front and rear) | 7.50-16*2/7.50-16*4 | ||
| Electric device | Rated voltage | 12 | |
| Battery | 80Ah*2 | ||
| Option | |||
a.Our brand have been widely in China,such as some great prvince Guangxi,GuangDong,HaiNan,Guizhou and so on.
b.Although we are new in internation trade,it is a good choose to cooperate if you are interested in opening the tractor market .
c.Order production is our enterprise's institution,the customer can put forward demand to change the specification if the engineer agree with that.A new manager means a new life as you know.
d.For benifit each other ,we promise to make the good quality product,all of the tractor will be test at least two times befoe being sale.Becasue we own the best QC team.
