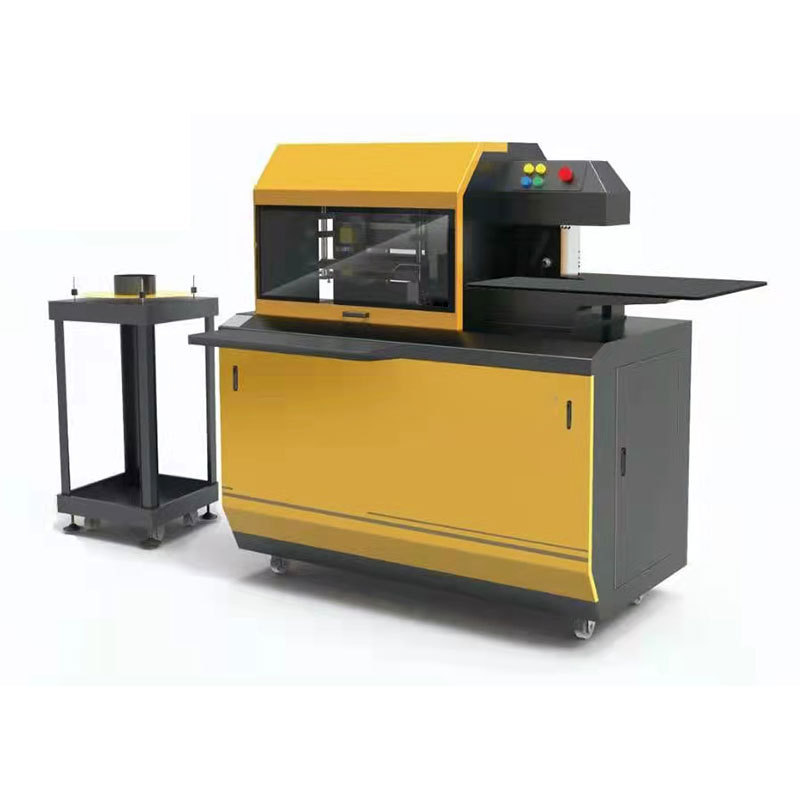

AK130 advertising acrylic sign board outdoor led display aluminum coil CNC tools bender 3D Channel letter bending machine

AK130 advertising acrylic sign board outdoor led display aluminum coil CNC tools bender 3D Channel letter bending machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $6800

≥10 Sets

US $6500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material width:: 10mm-130mm

Machine Type:: Beading Machine

Main Accessories:: Servo motor,Integrated Panel

Application:: Making 3D Sign Channel Letters

Keyword:: Channle Letter Bending Machine

The min bending arc diameter:: 15mm

Precision:: 0.05mm

Type:: Metal Bender Tools

Feeding speed:: 60mm/s(it takes only 48 seconds to finish a letter"S"of 30cm)

Quick Details

Place of Origin:: China

Weight (KG):: 480

Product name:: Letters Bending Machine

Material width:: 10mm-130mm

Machine Type:: Beading Machine

Main Accessories:: Servo motor,Integrated Panel

Application:: Making 3D Sign Channel Letters

Keyword:: Channle Letter Bending Machine

The min bending arc diameter:: 15mm

Precision:: 0.05mm

Type:: Metal Bender Tools

Feeding speed:: 60mm/s(it takes only 48 seconds to finish a letter"S"of 30cm)

Product Description

Applier material	S.S; Iron sheet; Flat aluminum
Material thickness	iron, S.S, aluminum:0.3-1.2mm
Material width	10mm-130mm
Power	2000W
Voltage	AC220V,50HZ
Size	1700mm800mm1650mm
Weight	480kg
Motor	Two servo motors (one for cutting and one for bending) and tepper motor with nice stability
Precision	0.05mm
Cutting/Bending way	Double side cutting and bending
Input file format	dxf , ai
Feeding speed	60mm/s (it takes only 48 seconds to finish a letter “S” of 30cm)
Slotting angle	45°-135°
The min bending arc diameter	15mm
Roller	Rubber roller for feeding; copper roller for bending, which can protect the surface of material and make finished letter more beautiful
Working Principle	Auto-feeding; auto-slotting; auto-bending;auto-depth adjusting

Product advantages 1. The progressive clamping and feeding of double manipulators make the feeding more stable and precise. 2. The slotting drive and bending system are driven by high-power servo motors, and the bending is equipped with a 1:16 reducer, which greatly increases the bending torque. 3. The stainless steel and galvanized sheet adopt the cutting mode of imported planer granules, and the aluminum profile and flat aluminum material use a specially customized 90-degree milling cutter head. 4. After the cutting blade is worn out, it can be quickly replaced, which greatly improves the work efficiency. 5. Automatically detect the cutting depth, which can realize the function of multiple feeding and prolong the service life of the blade. 6. The original pneumatic clamping feeding structure can adjust the clamping force according to the thickness of the profile to reduce material indentation without adjusting parameters. 7. The fuselage adopts humanized design, which is convenient to operate. 8. The control system adopts Chengdu Lechuang dual-card system, which has strong stability and anti-interference ability. The integrated circuit board independently developed and designed by the power panel according to the equipment performance greatly reduces the probability of equipment failure caused by regional voltage instability. 9. Low energy consumption, the total power is 5000w, and the actual power used does not exceed 2000w. 10. Compatible with more software's DXF/AI file format, support. ARTCAM, CASMATE, TYPE3, CORELDRAW, ILLUSTRATOR, FLEXISIGN, ENROUTER, etc., match with engraving machine, plasma cutting machine, laser cutting machine. 11. Automatically identify the inner and outer frames of the graphics, automatically calculate the length, interrupt at any point, and change the overlapping form. 12. Dimensions: length 1760mm*width 700mm*height 1500mm 13. Processing materials: stainless steel, iron sheet, aluminum profiles. Processing width: 30mm-128mm. Processing thickness: 0.4mm-1.2mm. 14.Special specifications and requirements can be customized.
