Quick Details
-
Model Number:
-

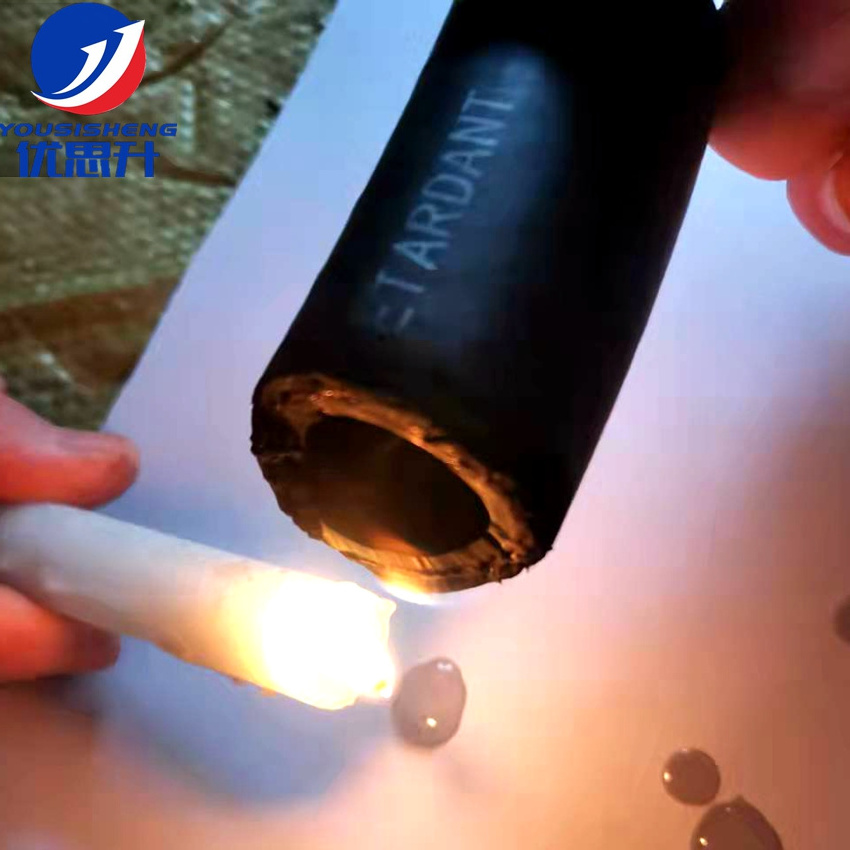

FLAME-RESISTANT YSS
-
Working temperature:
-
-30 to 100 ℃
-
Manufacture Standard:
-
yss-003
-
Application:
-
Suitable for conveying air, hot and cold water, and mild chemicals.
-
Working pressure:
-
300psi ,500psi
-
inner rubber layer:
-
inner rubber layer: black smooth EPDM synthetic rubber.
-
Reinforcement:
-
high-strength polyester fiber thread.
-
Outer layer:
-
yellow or black glossy fireproof EPDM synthetic rubber
Quick Details
-
Processing Service:
-
Cutting
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Yousisheng
-
Model Number:
-
FLAME-RESISTANT YSS
-
Working temperature:
-
-30 to 100 ℃
-
Manufacture Standard:
-
yss-003
-
Application:
-
Suitable for conveying air, hot and cold water, and mild chemicals.
-
Working pressure:
-
300psi ,500psi
-
inner rubber layer:
-
inner rubber layer: black smooth EPDM synthetic rubber.
-
Reinforcement:
-
high-strength polyester fiber thread.
-
Outer layer:
-
yellow or black glossy fireproof EPDM synthetic rubber
| Standard | yss-003 |
| Application | suitable for conveying air, hot and cold water, mild chemicals. |
| Working Temperature | -30°C (min) ~ +100°C (max) |
| Size | From ID 1/2'' to ID 2-1/2'' |
| Working pressure | W.P. 300 / 5000 bar |
| Colour |
black. yellow |
| Hose Identification |
003 FLAME-RESISTANT HOSE 300 bar ,500psi WP Ω (-30 ℃ ~ 100 ℃) |
Application:
suitable for conveying air, hot and cold water, mild chemicals.
Feature:
The product will not be damaged, clean and environment-friendly, pollution-free, safe and reliable.
Structure:
1. Inner rubber layer: black smooth EPDM synthetic rubber.
2. Reinforcement: high-strength polyester fiber thread..
3. Protective coating: ellow or black glossy fireproof EPDM synthetic rubber.
Size:
Diy ICE HOSE TYPE:
| Standard | HG/ t3037-2008 |
| Application |
Conveying dry ice for spraying, cleaning and deburring. Resistance to low temperature 60 ℃, ultraabrasion resistant, antistatic, low temperature flexibility
|
| Working Temperature | -60°C (min) ~ +90°C (max) |
| Size | From ID 3/8'' to ID 2'' |
| Working pressure | W.P. 10 / 20 bar |
| Safety factor |
4 times |
| Appearance |
Smooth, black. 1-1/4" above the cloth |
| Hose Identification | 004-13 DRY ICE HOSE 1/2 "(12.7 mm) 20 bar WP Ω (60 ℃ ~ 90 ℃) |
Application:
Conveying dry ice for spraying, cleaning and deburring. Resistance to low temperature 60 ℃, ultraabrasion resistant, antistatic, low temperature flexibility.
The cryogenic nitrogen dioxide crystal dry ice granule was sprayed by high - speed jet cleaning without any chemical cleaning agent.
Feature:
The product will not be damaged, clean and environment-friendly, pollution-free, safe and reliable.
Structure:
1. Inner rubber layer: black, smooth, wear-resistant, anti-static special synthetic rubber.
2. Reinforcement: High strength polyester fiber thread.
3. Protective coating: Super low temperature resistance, wear resistance, anti-aging and anti-static special synthetic rubber.
SIZE:
