Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Insulation (when cold):
-
5 Min Ohmios 500 Watts minimun
-
Heat intensity:
-
Not exceeding 30Wcm2
-
Cold areas:
-
Depends on length and diameter
-
Working temperature:
-
950Deg.C Max
-
Resistance wire:
-
Ni80Cr20, FeCrAl etc
-
Resistance tolerance:
-
-5% +5%
-
Max temperature:
-
750 Deg.C
-
Sheath material:
-
Seamless SS304 / SS316/SS321 / Incoloy800
-
Standard leads length:
-
300mm
-
Application:
-
air, liquid,mould
Quick Details
-
Type:
-
Immersion Heater
-
Power Source:
-
Electric
-
Voltage:
-
customized
-
Place of Origin:
-
Jiangsu, China
-
Insulation (when cold):
-
5 Min Ohmios 500 Watts minimun
-
Heat intensity:
-
Not exceeding 30Wcm2
-
Cold areas:
-
Depends on length and diameter
-
Working temperature:
-
950Deg.C Max
-
Resistance wire:
-
Ni80Cr20, FeCrAl etc
-
Resistance tolerance:
-
-5% +5%
-
Max temperature:
-
750 Deg.C
-
Sheath material:
-
Seamless SS304 / SS316/SS321 / Incoloy800
-
Standard leads length:
-
300mm
-
Application:
-
air, liquid,mould
Cartridge heaters are most frequently used for heating metal parts by insertion into drilled holes. For easy installation, the heaters are made slightly undersize relative to their nominal diameter.
Cartridge heaters can be easily specifed to meet the demands of special applications. Simply select from a variety of standard options and features to customize the heater to your specifc needs. For customized engineering or alternative options, contact vinson's sales representative for fast turnaround on your specifcations.
• Leadwire Types
• End Seal Options
• Lead Options
• Mounting Options
• Built-In Thermocouple
Typical Applications.
• Semiconductor chamber heating
• Semiconductor wire and die bonding
• Freeze protection and deicing of equipment in cold
climates or applications
• Humidity control
• Patient comfort heating used in medical devices
• Mold die and platen heating
• Seal bars used in packaging equipment
• Test sample heating in gas chromatography equipment
Resistance.
Resistance changes with temperature. There are three
circumstances under which resistance can be measured:
1. Room temperature (before use): nominal ohms are
90% of Ohm's law calculation.
2. Room temperature (after use): nominal ohms are
95% of Ohm's law calculation.
3. At temperature (during use): depending on application
nominal ohms are approximately 100% of Ohm's law.
Note: Resistance and wattage values are approximate
depending on application conditions
Customized information of Injection molding cartridge heaters with T/C.
• Diameter and length of the tube
• Watt and volatge
• Where to use
• Material of the tube
• Material and length of lead wire
• Size of thread

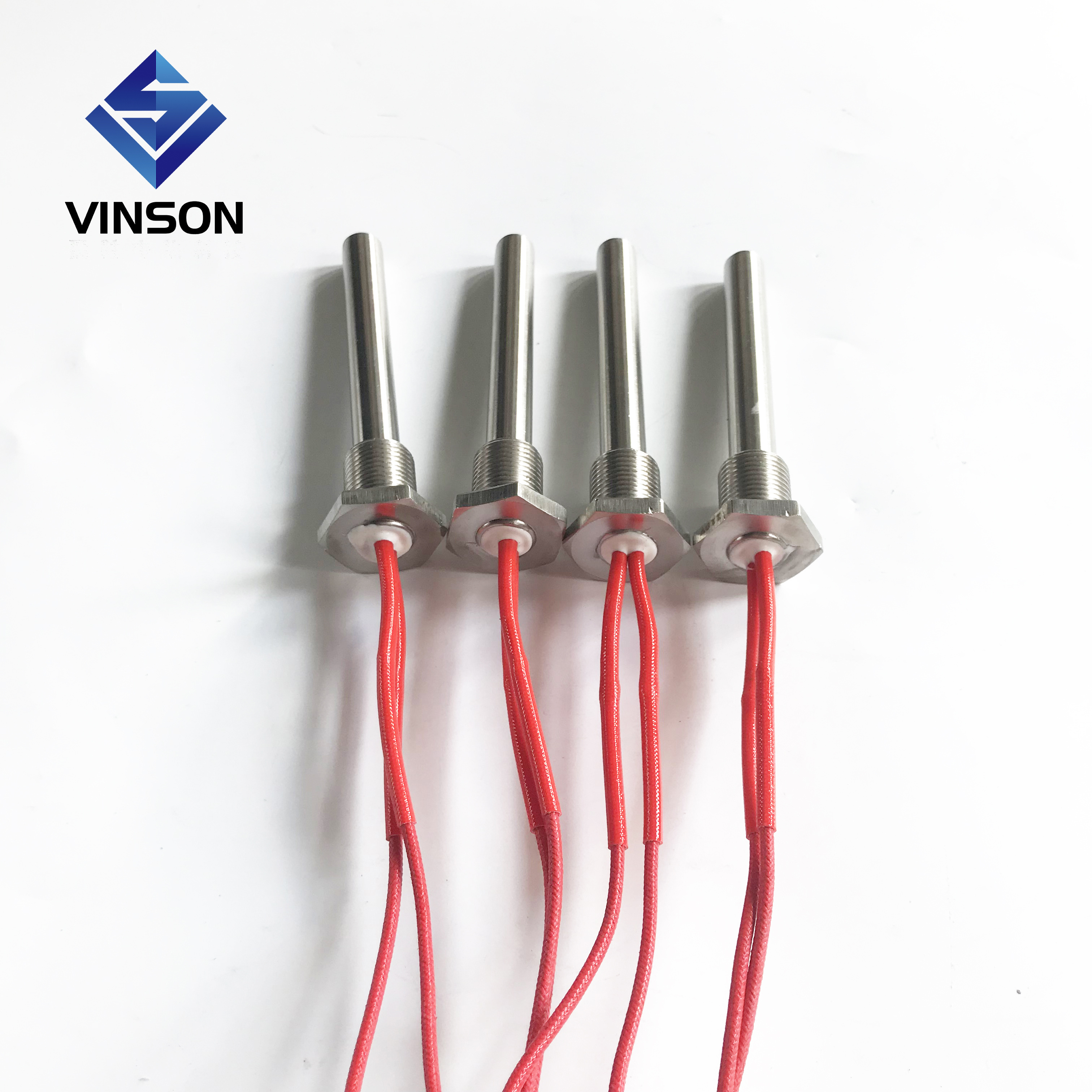

Cartridge heater in Industrial heater
* High-Density swaged Cartridge Heater
* Many diameters offered as standard
* Alloy sheath for high corrosion resistance
Cartridge heater in Industrial heater
* We support OEM order,and print Brand or Logo on surface.
* We can custom cartridge heaters specially(According to your size,voltage,power etc.)
