- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
WiFi NVR IPC Kits
-
Resolution:
-
2.0 Megapixel 1080P Full HD
-
Connection:
-
2.4Ghz WiFi Connection
-
Video Input:
-
8-CH * 1080P / 960P / 720P
-
Audio output/Output:
-
1 Channl RCA output and two way Talk
-
Interface:
-
Mouse, USB*3, Network , VGA and HDMI
-
Two-way Talk:
-
Support
-
Mobile Remote Viewing:
-
Support
-
Plug and Play:
-
Support
-
Onvif:
-
Support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TT
-
Model Number:
-
TT-NWK082M
-
Product name:
-
WiFi NVR IPC Kits
-
Resolution:
-
2.0 Megapixel 1080P Full HD
-
Connection:
-
2.4Ghz WiFi Connection
-
Video Input:
-
8-CH * 1080P / 960P / 720P
-
Audio output/Output:
-
1 Channl RCA output and two way Talk
-
Interface:
-
Mouse, USB*3, Network , VGA and HDMI
-
Two-way Talk:
-
Support
-
Mobile Remote Viewing:
-
Support
-
Plug and Play:
-
Support
-
Onvif:
-
Support
Related Products
Product Description
|
Product Name
|
8CH WIFI H.265 NVR KITS
|
|
Model
|
TT-NWK082M
|
|
Function
|

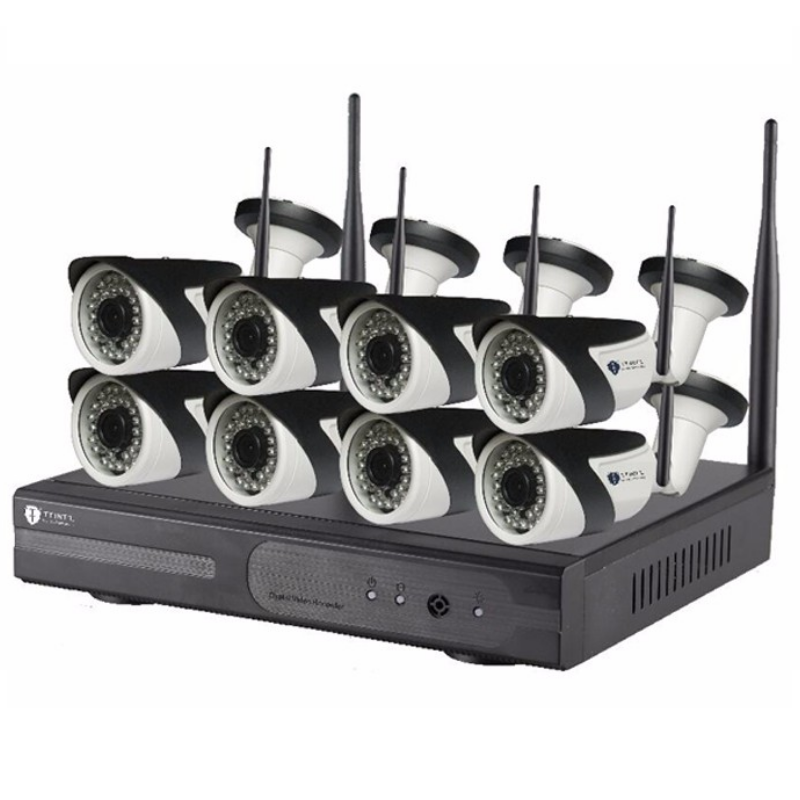

8 Channel H.265 2.0mp WiFi NVR and 8pcs 2.0mp 1080P Metal Bullet Camera
|
Major Features:
WIFI NVR IPC Kits
1*8 channel H.265 WIFI NVR 1080P (support 1 HDD)
1* power adapters (for WIFI NVR)
1* Mouse (for WIFI NVR)
8 * 2.0mp bullet WIFI h.265 IR Camera with 3.6mm lens and 36 Leds
8* power adapters (for WIFI Camera)
Product Specifications
|
Model
|
TT-X2MY6W
|
|
|
Image Sensor
|
1/2.7" Progressive Scan CMOS
|
|
|
Min. Illumination
|
0.01Lux @(F1.2,AGC on)
0Lux with IR |
|
|
Shutter time
|
1/50 s ~ 1/10,000s
|
|
|
Lens
|
3.6mm Mega Pixel Fixed Lens
|
|
|
Day& Night
|
Auto Switch IR Cutter Filter
|
|
|
Wide Dynamic
|
120 dB
|
|
|
DNR
|
3D DNR
|
|
|
Compression Standard
|
|
|
|
Compression
|
H.265 + / H.264 / MPEG
|
|
|
H.264 Code
|
Main Profile
|
|
|
Video Bit Rate
|
32Kbps~16Mbps
|
|
|
|
|
|
|
Resolution
|
1920*1080
|
|
|
Frame Rate
|
1920*1080 (25/30fps)
|
|
|
Image Enhancement
|
AGC, 3D DNR, WDR, Sharpness
|
|
|
Image Settings
|
Motion Detection, Privacy Mask, Video Tampering
|
|
|
Day/Night Switch
|
Auto/Outside Trigger/Color/Black White
|
|
|
Network
|
|
|
|
Network Storage
|
NVR & CMS
|
|
|
Protocols
|
TCP/IP, UDP, ICMP, HTTP, VPN, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTMP
|
|
|
General Function
|
Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask
|
|
|
System Compatibility
|
ONVIF2.4, PSIA, CGI, SPR
|
|
|
Browser
|
IE
|
|
|
Interface
|
|
|
|
Interface
|
1* RJ-45 10M/100MEthernet Port
|
|
|
General
|
|
|
|
Operating Temp.
|
-30 °C ~ 60 °C (-22 °F ~ 140 °F)
|
|
|
Operating Humidity
|
Humidity 95% or less (non-condensing)
|
|
|
Power Supply
|
12 VDC ± 25%,
|
|
|
PoE
|
PoE (IEEE 802.3af Class3) (Optional)
|
|
|
Power Consumption
|
Max. 6W
|
|
|
IR Range
|
25-30 Meters
|
|
|
Dimensions(mm)
|
200mm*60mm*65mm
|
|
|
Net Weight (kg)
|
0.5kg
|
|
|
Video Output
|
1 VGA, 1 HDMI interface
|
|
|
Network Interface
|
1 RJ45 10 / 100M adaptive Ethernet interface
|
|
|
Alarm Interface
|
N/A
|
|
|
485 Interface
|
N/A
|
|
|
USB interface
|
2 USB 2.0 ports
|
|
|
Hard disk interface
|
2 SATA 2.0 interface; SATA interface supports a maximum capacity of 6T
|
|
|
Other
|
|
|
|
PTZ control
|
Control PTZ via network
|
|
|
ONVIF
|
Support
|
|
|
power supply
|
DC12V 3A
|
|
|
Power consumption
|
≤18W
|
|
|
working environment
|
-10℃～+50℃ 10%～95%RH
|
|
Company Introduction
TT INT'L / HTW has performed a remarkable achievement in Security Field since its established in 2004, based in Shenzhen China over the decades, we experienced from the traditional CCD CVBS/SDI analogue camera period went through to the HD CMOS camera period, and till current popular 4K IP camera system and HD Cloud Home Wi-Fi Camera.
Our Services & Strength
With 15 years of manufacturing and exporting experiences in surveillance monitoring, TT/HTW has been focusing on its quality and services with best competitive prices ever since, with highly experienced R&D team, advanced SMT machines and professional management teams, combined together to guarantee the quality control system in order to deliver the only qualified products to our customers.
