Quick Details
-
Weight:
-
500 KG
-
chicken cage layer:
-
3, 4, 5
-
chicken cage type:
-
A type and H type
-
one set cage size:
-
1.88m*2.0m*1.5m
-
system:
-
auto drinking, feeding, cleaning dung, cooling and heating system
-
Design:
-
according to chicken house length and width
-
Feature:
-
easily install, durable, good design, save time and labor
-
Market:
-
all over the world
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
BY
-
Model Number:
-
BYAUTO-01
-
Weight:
-
500 KG
-
chicken cage layer:
-
3, 4, 5
-
chicken cage type:
-
A type and H type
-
one set cage size:
-
1.88m*2.0m*1.5m
-
system:
-
auto drinking, feeding, cleaning dung, cooling and heating system
-
Design:
-
according to chicken house length and width
-
Feature:
-
easily install, durable, good design, save time and labor
-
Market:
-
all over the world
Automatic Chicken Farming Equipment
- Automatic Feeding Equipment
- Automatic cleaning Equipment
- Automatic Egg collection system
- Fan Ventilation System
- Cooling, heating system

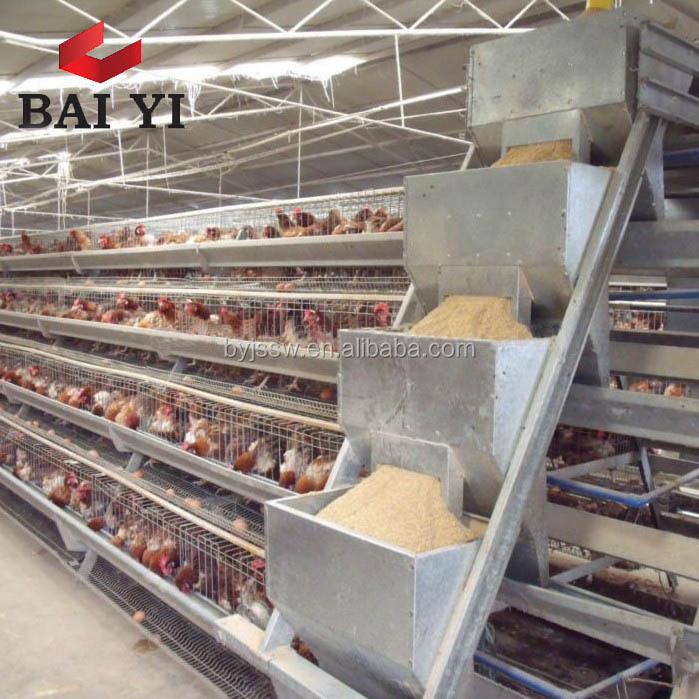

Automatic Feeding Equipment:
It including bracket, walking output system, walking system, down feed system, feed capacity adjust system, electrical system
Automatic feeding main advantages:
1. each layer of sowing feed rate can be controlled, the down feed evenly.
2. The automatic feeding machine material is large, It heavy about 300-400 kgs than usual machine.
3. smooth operation, not derailed. According to the size of the hen house can provide three columns and four columns.
|
Technical date |
||
|
NO. |
Item |
Specification |
|
1 |
Source Type |
AC, 3-Phase |
|
2 |
Rated Power |
0.75KW - 0.11KW |
|
3 |
Rated Voltage |
220V/380V |
|
4 |
Outline Size |
L by W by H = (2.3-2.7) by (1.2-1.5) by (2.0-2.25)m |
|
5 |
Hopper Size |
L by W by H = 0.66m by 0.256m by 0.5m |
|
6 |
Working Average Rate of the Hopper |
Around 15 g/m |
|
7 |
Feed Capacity of each Hopper |
35KGS - 100 KGS/piece |
|
8 |
Working Speed |
10 - 15 Meters/Min |
|
9 |
Structure Weight |
550KG |
|
10 |
Supporting Orbits |
Thickness = 3.0mm, Diam = 50mm |
|
11 |
Orbits Material |
Hot deep galvanized Pipe |
|
12 |
Transverse Auger Conveying Feeding Equipment |
Diameter = 75mm to 150mm |
|
13 |
Connected with the Silo |
5,000KGS to 15,000KGS |
H type Automatic Feeding Equipment:
Automatic Cleaning Machine
We have two types:
1) Scraper Type Manure Removal
2) Conveyor Belt Type Manure Removal;
Automatic Egg Collection System:
Fan Ventilation System:
| Fan Item | poultry fan | 1380 | 900 |
| Size | mm | 1380*1380*400 | 900*900*400 |
| L*H*W | mm | 1270 | 700 |
| Blde Dia | mm | 1270 | 770 |
| Air Volume | m3/h | 44500 | 28000 |
| Power | HP/KW | 1.5/1.1 | 0.5/0.37 |
| Voltage | v | 415/380/220 | 415/380/220 |
| Frequency | HZ | 50/60 | 50/60 |
| Propeller Rotation Speed | r/min | 450 | 520 |
| Noise | dB | 65 | 55 |
| Weight | kg | 85 | 50 |
Cooling pad for temperture:
We also have many other poultry equipment. Welcome you check our website or contact us, 24 hours service.
