Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZBTK
-
Dimension(L*W*H):
-
700x1400x600mm
-
Weight (KG):
-
60 KG
-
Core Components:
-
galvo scanner, laser source, water chiller
-

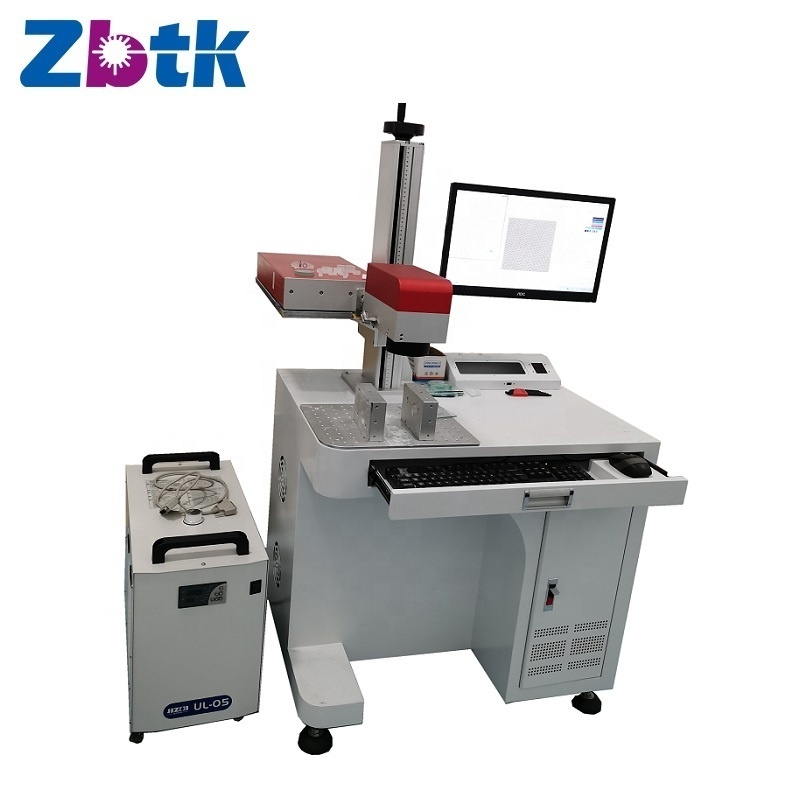

Product name:
-
Glass drilling machine
-
Laser type:
-
1064nm/532nm
-
Material:
-
Sheet metal case
-
Operating voltage:
-
±15VDC/5A
-
Operating Temperature:
-
10~50 Degree
-
Laser source:
-
JPT /orion/inngu
Quick Details
-
Engraving Area:
-
80mm * 80mm
-
Laser Type:
-
1064nm/532nm
-
Engraving Speed:
-
4000m/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZBTK
-
Dimension(L*W*H):
-
700x1400x600mm
-
Weight (KG):
-
60 KG
-
Core Components:
-
galvo scanner, laser source, water chiller
-
Product name:
-
Glass drilling machine
-
Laser type:
-
1064nm/532nm
-
Material:
-
Sheet metal case
-
Operating voltage:
-
±15VDC/5A
-
Operating Temperature:
-
10~50 Degree
-
Laser source:
-
JPT /orion/inngu
Product Description
Why Choose Us
QUALITY ASSURANCE
Alibaba trade credit guarantee, TUV certified manufacturer is trustworthy
R&D CAPABILITIES
The company has a series of industry overall solutions with completely independent intellectual property rights
INNOVATION
INNOVATION A technical team with 15 years of industry experience and more than 20 national invention patents
OEM / ODM
Accpet LOGO branding on prodcts and.average production time 7-10 days.
TECHNICAL TEAM
A high-level scientific research production and quality control team can ensure every product.
BEST SERVICE
To provide you with value-for-money 2-year warranty and lifetime technical support.
Product Paramenters
|
SPECIFICATIONS FOR ZBGD3D14 SERIES
|
|
|
|
Reflection Wavelength
|
1064nm,532nm
|
|
|
Input Aperture
|
14mm
|
|
|
Scan depth
|
±15mm,@F163 Field lens
±35mm,@F254 Field lens
±50mm,@F290 Field lens
|
|
|
Typical Scan Angle
|
±0.35rad
|
|
|
Z axis repeat positioning accuracy
|
<1um
|
|
|
X/Y axis tracking time
|
0.24ms
|
|
|
X/Y repeat accuracy (RMS)
|
<2urad
|
|
|
Linearity
|
>99.9%
|
|
|
Z axis drift for a long time
(After 30 minutes warm-up ) |
<5um
|
|
|
X/Y axis long time drift
(After 30 minutes warm-up) |
<0.1mrad
|
|
|
Marking Speed
|
<4000mm/s
|
|
|
Positioning Speed
|
<7000mm/s
|
|
|
Digital Interface
|
xy2-100
|
|
|
Power Requirements
|
±15VDC,≥10A
|
|
|
Outline Dimension
|
LWH(mm):230x108x116
|
|
|
Weight
|
60kg
|
|
|
Operation Temperature
|
10℃ ~50℃
|
|
