Quick Details
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Color:
-
DIY
-
Overall length:
-
14.5m
-
Overall width:
-
2.3m
-
Overall height:
-
3.7m
-
Power Supply:
-
380V/50HZ
-
Certification:
-
ISO9001
Quick Details
-
Rated Loading Capacity:
-
3t,2t,1t
-
Max. Lifting Height:
-
25m
-
Place of Origin:
-
Jiangsu, China
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
-
Color:
-
DIY
-
Overall length:
-
14.5m
-
Overall width:
-
2.3m
-
Overall height:
-
3.7m
-
Power Supply:
-
380V/50HZ
-
Certification:
-
ISO9001

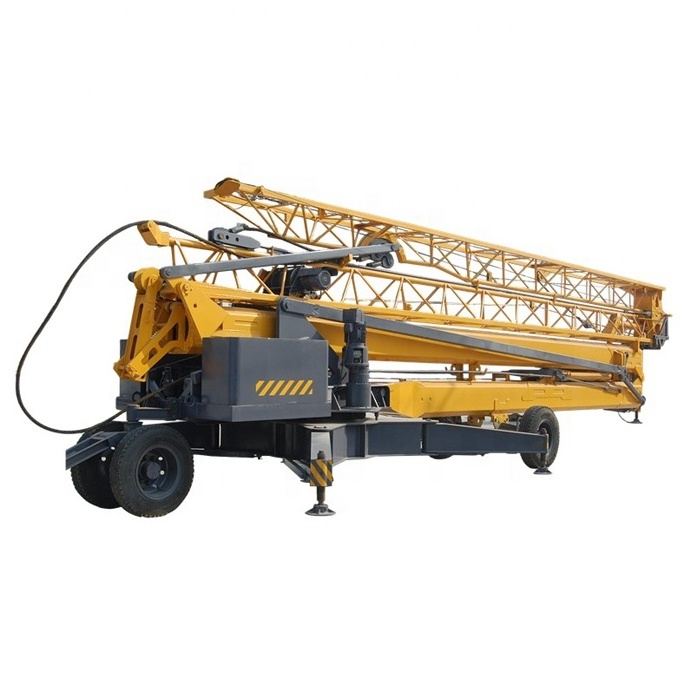

China Xuzhou Manufacture mini folding travelling tower crane low price
Advantages of self erecting tower crane:
1.Without foundation, saving construction cost, low requirement for site conditions.
2.Erecting and starting rapidly.
3.None working on the high level during erecting and dismounting.
4.Mast locked automatically, jib sections connected automatically in the air.
5.No require professional operator,operating simply, mastering easily.
6.Wireless remote operating,reducing working labor strength,having wide operating view.
Transporting wholly.
| Category | Item | Unit | TCK-10 | TCK-20 | TCK-30 |
| Hoisting parameters | Max.hoisting height | m | 17 | 25 | 25 |
| Max.working radius | m | 20 | 27 | 27 | |
| Max.hoisting weight | Kg | 1000 | 2000 | 3000 | |
| Hoisting speed | m/min | 16/32 | 13/26 | 13/26 | |
| Trolleying speed | m/min | 19 | 20/40 | 20/40 | |
| Slewing speed | r/min | 0.8 | 0.25/0.8 | 0.25/0.8 | |
| Erecting time | min | 6 | 10 | 10 | |
| Outrigger span | m | 3.5x3.5 | 4.2x4.2 | 4.2x4.2 | |
| Dead weight | Kg | 14500 | 26000 | 32000 | |
| Travel paraments | Max.towing speed | Km/h | 15 | 15 | 15 |
| Hydraulic system | Hydraulic system | Mpa | 28 | 28 | 28 |
| Power supply | Rated Power | Kw | 11.4 | 23.1 | 23.1 |
| Power supply | 380/50HZ | ||||
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely.
