Quick Details
-
Row Distance(mm):
-
1000 - 1200 mm
-
Place of Origin:
-
Germany
-
Brand Name:
-
Combine Harvester
-
Dimension(L*W*H):
-
130*107*65cm
-
Weight:
-
2000 KG
-
Product name:
-
Combine Rice Wheat Harvester
-
After-sales Service Provided:
-
Video Technical Support
-
Function:
-
Combined Grain Harvester
Quick Details
-
Number of Rows:
-
3
-
Working Width(mm):
-
1500 mm
-
Tractor Power(HP):
-
45 - 90 HP
-
Row Distance(mm):
-
1000 - 1200 mm
-
Place of Origin:
-
Germany
-
Brand Name:
-
Combine Harvester
-
Dimension(L*W*H):
-
130*107*65cm
-
Weight:
-
2000 KG
-
Product name:
-
Combine Rice Wheat Harvester
-
After-sales Service Provided:
-
Video Technical Support
-
Function:
-
Combined Grain Harvester
|
Product Description |

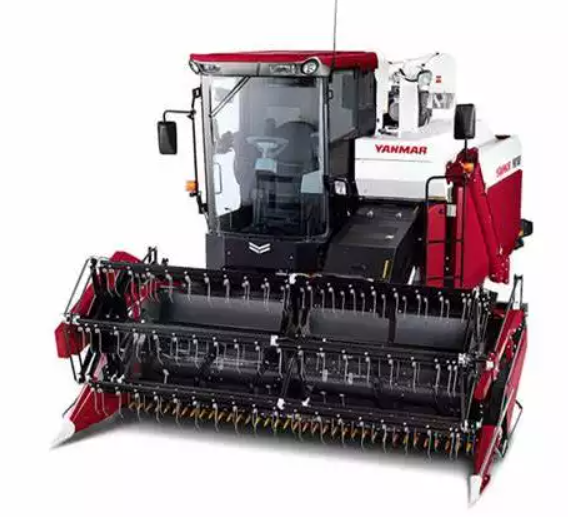

A. Rice & Wheat Combine Harvesters
Type: 4LZ-2.0D
Time of delivery: about 30 days
Type of Payment: T/T
1. 75 HP diesel engine, 2 meters cutting width, Auto Transmission, high efficiency.
2.Double axial flow threshing cylinders and adjustable front & rear sieving plates ensure the grain
more clean, less breakage and less loss.
3.Big width conveyer groove with innovated cutter bar lifting system can provide a more efficient
feeding and a higher lifting level, convenient for working in paddy field and maintenance, and
lower noise and vibration.
4.Lower ground pressure, better for passing in paddy field.
5.Extremely strong Chassis; Excellent waterproof suspension wheel system; Easier turning & control with friction disc brake and special heavy-duty gearbox for hydraulic steering combine harvester
C. Technical Specifications
| Model | 4LZ-2.0D | Lifting of Reel | Hydraulic |
| Working Efficiency |
0.53 ~ 0.80Ha./H
(1.32 ~ 2.00Acre/H) |
Steering | Hydraulic |
|
Overall Dimensions (L x W x H)mm |
4700×2300×2700 | Conveyor | Chain rack tooth type |
| Weight | 2400 kg | Threshing Cylinder |
Tangential Flow +
Dual Spike-tooth type |
| Engine | Diesel Engine | Cleaning |
Fan (front blowing +
Sieving+re-thresher |
| Model | 498BZT | Paddy fill Method | Grain Tank & Bag |
| Rated Power |
75 HP (55kw) / 2400 rpm |
Grain Tank | 1.1 CBM/ (500-550 kg) |
|
Fuel consumption per hectare |
≤30 Kg/Ha. | Rice | ≤3% |
| Rubber Track | 400x90x48 | Wheat | ≤1.2% |
| Transmission | HST F:3 / R:3 | Breakage | ≤1.5% |
| Ground Pressure | ≤18 Kpa | Impurity | ≤2.0% |
|
Min. Ground Clearance |
240 mm | Payment term: | T/T |
| Cutting Width | 2000 mm | Delivery time | About 30 days |
| Type of Lifting | Hydraulic | Container load QTY |
1 set/20GP container, 3 sets/40 HQ container |
