Quick Details
-
Material:
-
Aluminum case, Aluminum
-
Function:
-
Charging
-
Brand Name:
-
YXLN
-
Model Number:
-
YX-1200W Waterproof
-
Input voltage and current:
-
100-130Vac / 200-240Vac 50HZ/60HZ
-
output voltage and current:
-
48V/20A
-
Maximum Output Power:
-
1200W
-
Place of Origin:
-
Guangdong, China
-
Warranty:
-
12Months
-
Net weight:
-
5 Kg
-
Application:
-
electric truck;electric forklift, electric cars ev cars
-
Size:
-
280*197*85mm
-
LED indicator: Charging state::
-
Red--charging; Green--full
-
Efficiency:
-
≥90%(full Loading)
-
MOQ:
-
20pcs
-
OEM/ODM:
-
Spport Custom
-
Certification:
-
CE ROHS UKCA
Quick Details
-
Type:
-
Electric
-
Port:
-
AC
-
Use:
-
standard battery
-
Material:
-
Aluminum case, Aluminum
-
Function:
-
Charging
-
Brand Name:
-
YXLN
-
Model Number:
-
YX-1200W Waterproof
-
Input voltage and current:
-
100-130Vac / 200-240Vac 50HZ/60HZ
-
output voltage and current:
-
48V/20A
-
Maximum Output Power:
-
1200W
-
Place of Origin:
-
Guangdong, China
-
Warranty:
-
12Months
-
Net weight:
-
5 Kg
-
Application:
-
electric truck;electric forklift, electric cars ev cars
-
Size:
-
280*197*85mm
-
LED indicator: Charging state::
-
Red--charging; Green--full
-
Efficiency:
-
≥90%(full Loading)
-
MOQ:
-
20pcs
-
OEM/ODM:
-
Spport Custom
-
Certification:
-
CE ROHS UKCA
PRODUCT DESCRIPTION

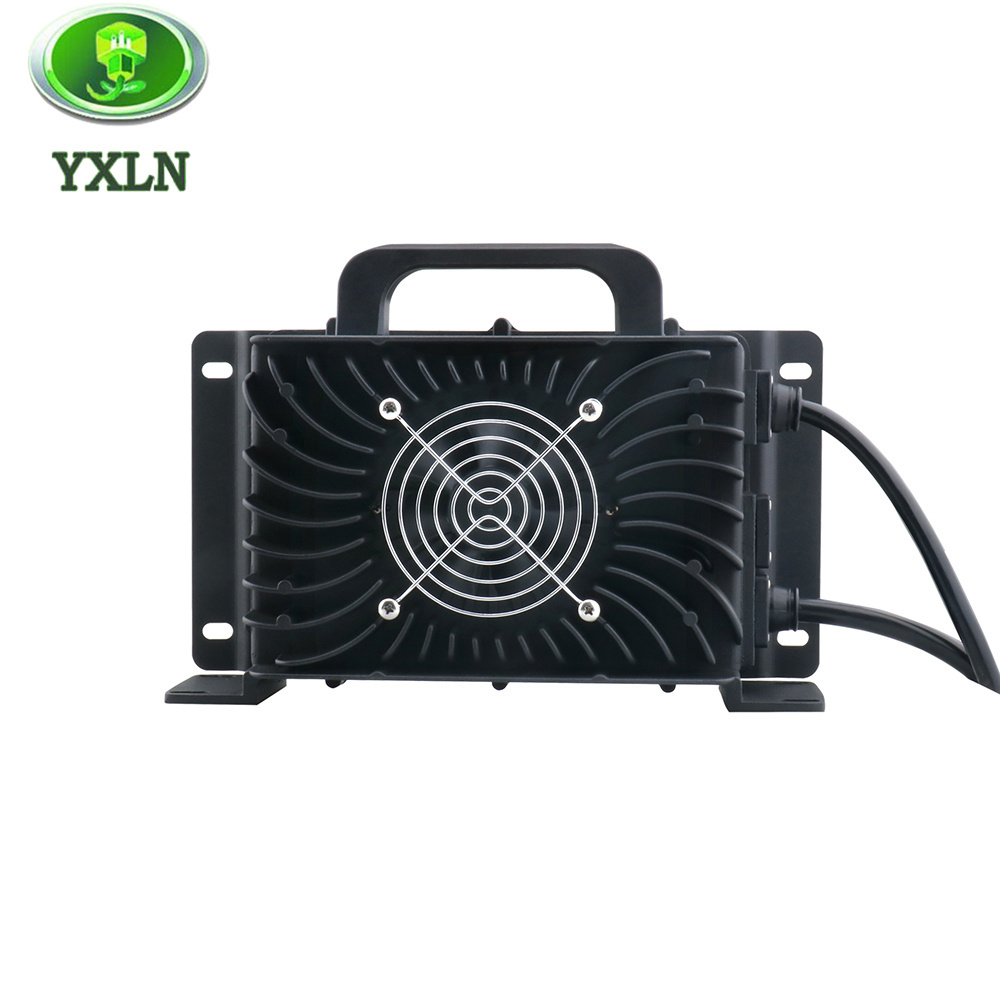

Factory Waterproof 48V 12s 50.4v 20a lithium li ion battery charger waterproof for electric boat vehicles
| Specification of YX-1200W Waterproof Series Battery Charger | |||||||||
| NO. | Model | CV | CC | Transition/cut-off Current | Net Weight | Size | |||
| Lead Acid | Li-ion | LiFePO4 | A | Lead Acid(A) | Li(A) | (kg) | (mm) | ||
| 1 | YX-1200W-12 | 14.7V | 16.8V | 14.6V | 35 | 7.0 | 1.75 | 3.9 | 280*197*85 |
| 2 | YX-1200W-24 | 29.4V | 29.4V | 29.2V | 30 | 6.0 | 1.5 | ||
| 3 | YX-1200W-36 | 44.1V | 42.0V | 43.8V | 25 | 5.0 | 1.25 | ||
| 4 | YX-1200W-48 | 58.8V | 54.6V | 58.4V | 20 | 4.0 | 1.0 | ||
| 5 | YX-1200W-60 | 73.5V | 67.2V | 73.0V | 15 | 3.0 | 0.75 | ||
| 6 | YX-1200W-72 | 88.2V | 84.0V | 87.6V | 12 | 2.4 | 0.6 | ||
| Features |
1 |
IP67 Waterproof battery charger.
|
|||||||
| 2 | All aluminum case，black and silver optional. | ||||||||
| 3 |
High efficiencv≥90%，Eco-friendly.
Silent cooling fan，good heat dissipation.
|
||||||||
| 4 |
3 or 2 stage charging mode：cc cv(floating).
|
||||||||
| 5 |
Multi-functions protection:over voltage,over current ，over temperature，short circuit，reverse polarity etc.
|
||||||||
| 6 | With LED indicator: Red Flashing-Charging<80%， Yellow Flashing-Charging>80%Solid Green-Fully charged. | ||||||||
| Apply to battery type | Lithium ion, Lead-Acid, LiFePO4 for option |
| Material | aluminum alloy shell (heat disspation) |
| Color | black and silver for option |
| Dimension | 280*197*85 mm |
| N.W. | 3.9KG |
| MOQ | 20PCS |
| Warranty | 12 months |
| Port | Guangzhou |
| Main Market | USA, Europe,and Austrilia, Mid East, Africa, Oceania, Asia |
Charging Mode
:
CC, CV, Trickle(constant currrent-constant voltage-trickle float)
Apply to EV:
Electric forklift, Electric boat, Electric cars, Electric Vehicles, electric burden carrier, etc.
LED indicator:
Charging state: Red--charging; Green--full
Operating Temperature:
-5℃~+40℃
Storage Temperature:
-40℃~+70℃
Apply to:
Lithium/Li-ion/LiFePO4/Lead Acid battery
Input voltage:
100-130Vac / 200-240Vac 50HZ/60HZ
YX-1200W Waterproof Battery Charger Curve
APPLICATION
Apply to EV:electric truck;Electric forklift, Electric boat, Electric cars, Electric Vehicles, electric burden carrier, etc.
INPUT&OUTPUT PLUG
Input Plug from A to L, Output Plug from 1 to 16, choose according to your demand.
If you have any special requirement, please contact us!
If you have any special requirement, please contact us!
CERTIFICATIONS
OUR COMPANY
OUR ADVANTAGES
PACKING&DELIVERY
FAQ
Q: What's certificate?
A: We have CE, ROHS
Q: What is Accepted Payment Currency?
A: We accept USD, EUR, CAD, AUD,HKD, GBP, JPY, NZD, SGD, CHF, THB, etc
Q: What about the payment term ?
A: Mostly 30%T/T in advanced, the rest need paid before shipping.
Q: Do you offer guarantee for the products?
A: Yes, we offer 12 month warranty to our products.
A: We have CE, ROHS
Q: What is Accepted Payment Currency?
A: We accept USD, EUR, CAD, AUD,HKD, GBP, JPY, NZD, SGD, CHF, THB, etc
Q: What about the payment term ?
A: Mostly 30%T/T in advanced, the rest need paid before shipping.
Q: Do you offer guarantee for the products?
A: Yes, we offer 12 month warranty to our products.
