Quick Details
-
Dimension(L*W*H):
-
4200*1680*2170mm
-
Weight:
-
5000 KG
-
Marketing Type:
-
New Product 2024
-
Mobility:
-
yes
-
Max. Speed:
-
40 m/min
-
Torque:
-
3200 Nm
-
Max. rotation speed:
-
230 r/min
-
Pushing Force:
-
135KN
-
Pulling Force:
-
135KN
-
Maximum entry angle:
-
18°
-
Maximum flow rate of mud pump:
-
100 L/min
-
Engine power:
-
81KW
-
Application:
-
Construction works
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hengwang
-
Voltage:
-
380V or diesel engine
-
Dimension(L*W*H):
-
4200*1680*2170mm
-
Weight:
-
5000 KG
-
Marketing Type:
-
New Product 2024
-
Mobility:
-
yes
-
Max. Speed:
-
40 m/min
-
Torque:
-
3200 Nm
-
Max. rotation speed:
-
230 r/min
-
Pushing Force:
-
135KN
-
Pulling Force:
-
135KN
-
Maximum entry angle:
-
18°
-
Maximum flow rate of mud pump:
-
100 L/min
-
Engine power:
-
81KW
-
Application:
-
Construction works
The listing price is just deposit price and excluding freight fee. If you want to get the specific price, please contact me or send an inquiry, then we will send you formal quotation, thanks！
1, Hydraulic pilot control, provide comfortable operating performance and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the machine hydraulic system.
2, Carriage and clamp using double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
3, High-speed sliding systems, piston motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.
4, Optional full-automatic pipeloader, drilling box can accommodate 40 piece of drill pipes, ensure one time reached 120 meters, efficient automation construction, reduce construction costs and labor intensity.
5, Support the diverse needs of customers, the machine can option configuration with the automatic (semi-automatic) full-automatic pipe loader, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing,mud throttling and other devices, can also be optioned more eco saving Dongfeng Cummins.
|

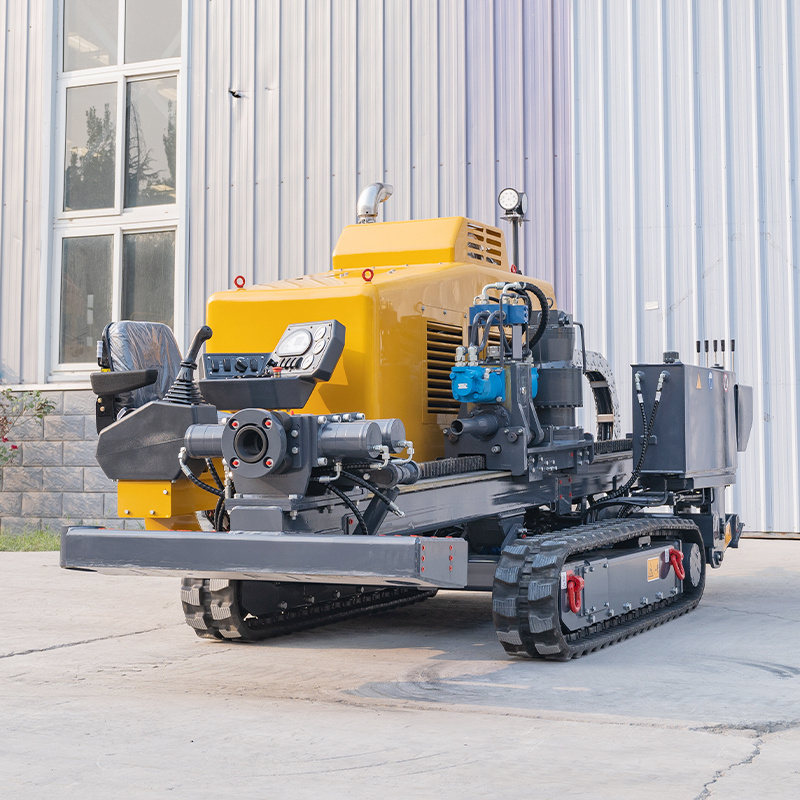

Specification for HWF130 Horizontal Directional Drilling Rig
|
|
|
|
Model
|
HWF130
|
|
|
Engine
|
Cummins
|
|
|
Dimensions（mm )
|
4200*1680*2170
|
|
|
Rated power（KW)
|
81
|
|
|
Rotary Speed（rpm)
|
2200
|
|
|
Pushing Force（KN）
|
135
|
|
|
Pulling Force（KN）
|
135
|
|
|
Torque（N·m )
|
3200
|
|
|
Maximum speed（r/min )
|
230
|
|
|
Maximum flow rate of mud pump（L/min )
|
100
|
|
|
Maximum entry angle（° )
|
18
|
|
|
Overall weight（kg)
|
5000
|
|
|
Drill pipe diameter（mm)
|
52/60
|
|
|
Drill pipe length（m )
|
1.8
|
|
