Quick Details
-
Brand Name:
-
-
-
Model Number:
-
CE16800-X4-AH, CE16800-X4-DC
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Data center switch
-
Forwarding Performance:
-
26,100 Mpps
-
Slots:
-
4*Service slots,9*SFU slots
-
Warranty:
-
1 Year / 12 Months
-
Dimensions (H x W x D):
-
438mm*483mm*985mm(10 U)
-
Weight:
-
94.1 kg
-
Maximum power supply:
-
18,000 W
-
Model:
-
CE16800-X4-AH
Quick Details
-
Transmission Rate:
-
10GE/25GE/40GE/100GE/200GE/400GE
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
179/387 Tbps, 179/387 Tbps
-
Brand Name:
-
-
-
Model Number:
-
CE16800-X4-AH, CE16800-X4-DC
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Data center switch
-
Forwarding Performance:
-
26,100 Mpps
-
Slots:
-
4*Service slots,9*SFU slots
-
Warranty:
-
1 Year / 12 Months
-
Dimensions (H x W x D):
-
438mm*483mm*985mm(10 U)
-
Weight:
-
94.1 kg
-
Maximum power supply:
-
18,000 W
-
Model:
-
CE16800-X4-AH
Product Description

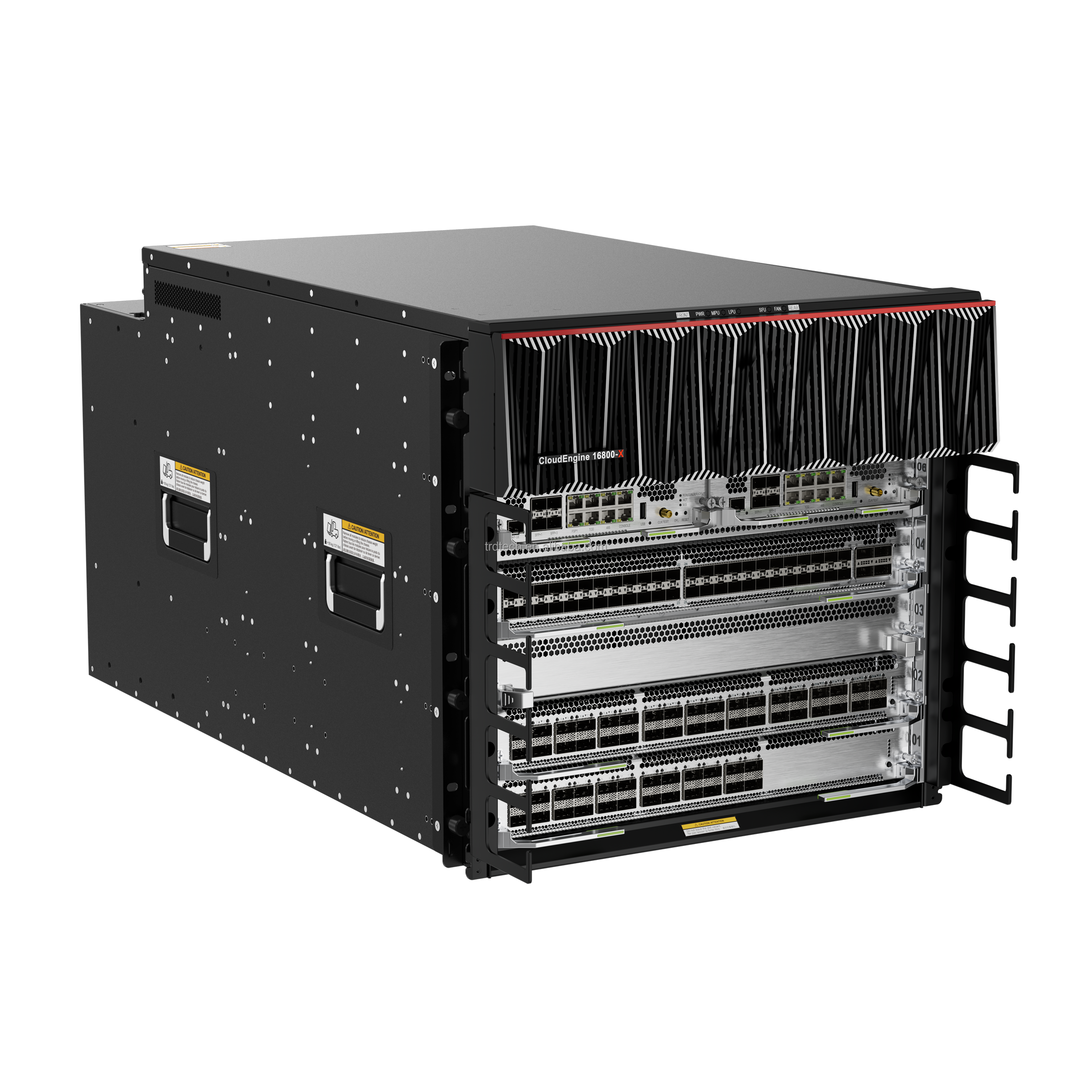

Brand new enterprise switches CE16800-X4-AH 48 port poe switch price network switches fs
|
Product Features
|
|
1.VXLAN works with EVPN to enable service deployment within and across DCs.
2.Automatic and simplified deployment of VXLAN dual-stack network services
3.Inter-Device Link Aggregation, Ensuring High Efficiency and Reliability
4.Standard Interfaces, Enabling Open Interconnection
5.Zero Touch Provisioning, Enabling Automatic O&M
6.Simplified DCN Deployment via Collaboration with iMaster NCE-Fabric
7.Intelligent O&M Through Collaboration with iMaster NCE-FabricInsight
|
|
Item
|
CloudEngine 16800-X4
|
|
Type
|
Data center switch
|
|
Switch Capacity
|
179/387 Tbps
|
|
Forwarding Performance
|
26,100 Mpps
|
|
Service slots
|
4
|
|
Dimensions (W x D x H)
|
438 mm (9.8U) x 483 mm x 985 mm
|
|
Weight in full configuration
|
94.1 kg
|
|
Maximum power supply capability of the system
|
18,000 W
|
|
Switching fabric module slots
|
8(Scalable to 9 for future expansion)
|
|
switch architecture
|
Clos orthogonal architecture, cell switching, VoQ
|
|
Air duct type
|
Standard front-to-rear airflow
|
|
Environment requirements
|
Operating temperature: 0°C to 40°C (0 m to 1800 m)
Storage temperature: –40°C to +70°C Relative humidity: 5% RH to 95% RH (noncondensing) |
|
Operating voltage
|
AC: 176 V to 290 V, 45 Hz to 65 Hz
High-voltage DC (HVDC): 188 V to 288 V/260 V to 400 V |
Product Paramenters
|
Item
|
CloudEngine 16800-X4
|
|
Device virtualization
|
M-LAG
|
|
Interface
|
Jumbo frames
|
|
Network virtualization
|
VXLAN routing and VXLAN bridging
|
|
|
BGP-EVPN
|
|
SDN
|
iMaster NCE-Fabric
|
|
Network convergence
|
PFC and AI ECN
|
|
|
RDMA and RoCE (RoCE v1 and RoCE v2)
|
|
Programmability
|
OpenFlow
|
|
|
OPS programming
|
|
Traffic analysis
|
NetStream
|
|
VLAN
|
Access, trunk, and hybrid ports
|
|
|
Default VLAN
|
|
MAC address table
|
Automatic MAC address learning and aging
|
|
|
Static, dynamic, and blackhole MAC address entries
|
|
|
Source MAC address filtering
|
|
|
MAC address learning limiting based on ports and VLANs
|
|
IP routing
|
IPv4 dynamic routing protocols such as RIP, OSPF, IS-IS, and BGP
|
|
|
IPv6 dynamic routing protocols such as RIPng, OSPFv3, IS-ISv6, and BGP4+
|
|
IPv6
|
VXLAN over IPv6
|
|
|
IPv6 VXLAN over IPv4
|
|
|
IPv6 neighbor discovery (ND)
|
|
|
Path MTU discovery (PMTU)
|
|
|
TCP6, IPv6 ping, IPv6 tracert, IPv6 socket, UDP6, and raw IPv6
|
|
Reliability
|
LACP
|
|
|
STP, RSTP, VBST, and MSTP
|
|
|
BPDU protection
|
|
|
Smart link and multi-instance
|
|
|
Hardware-based Bidirectional Forwarding Detection (BFD), with a minimum packet sending
interval of 3.3 ms |
|
|
VRRP, VRRP load sharing, and BFD for VRRP
|
|
|
BFD for BGP, IS-IS, OSPF, and static routing
|
|
|
BFD for VXLAN
|
|
|
Traffic classification based on Layer 2 headers, Layer 3 headers, and Layer 4 protocol priorities
|
|
QoS
|
ACL, CAR, re-marking, and scheduling
|
|
|
Queue scheduling modes such as PQ, DRR, and PQ+DRR
|
|
|
Congestion avoidance mechanisms such as WRED and tail drop
|
|
|
Traffic shaping
|
|
|
1588v2
|
|
Intelligent O&M
|
Network-wide path detection
|
|
|
Telemetry
|
|
|
Enhanced ERSPAN
|
|
|
In-situ Flow Information Telemetry (IFIT)
|
|
|
Packet Event: packet loss visualization and ultra-long latency visualization
|
|
|
VXLAN OAM: VXLAN ping and VXLAN tracert
|
