Quick Details
-
Model Number:
-
CYX23 series
-
Pressure type:
-
oil filled isolated diaphragm piezoresistive pressure sensor
-
Range:
-
-100kPa~100MPa
-
Response Time:
-
≤1ms
-
Packing Medium:
-
Silicon Oil / Fluorine Oil
-
Shell & Diaphragm Material:
-
316L Stainless Steel
-
Measuring Medium:
-
The fluid which is compatible with 316L, viton, nitrile rubber
-
Storage Temperature:
-
40~+125℃
-
Excitation Current:
-
1.5(Max input voltage is 10VDC) mA
-
Long-term Stability:
-
0.1%FS/year
-
Power supply:
-
≤ 3.0mA; DC ≤ 10V DC
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Gansu, China
-
Brand Name:
-
HUATIAN
-
Model Number:
-
CYX23 series
-
Pressure type:
-
oil filled isolated diaphragm piezoresistive pressure sensor
-
Range:
-
-100kPa~100MPa
-
Response Time:
-
≤1ms
-
Packing Medium:
-
Silicon Oil / Fluorine Oil
-
Shell & Diaphragm Material:
-
316L Stainless Steel
-
Measuring Medium:
-
The fluid which is compatible with 316L, viton, nitrile rubber
-
Storage Temperature:
-
40~+125℃
-
Excitation Current:
-
1.5(Max input voltage is 10VDC) mA
-
Long-term Stability:
-
0.1%FS/year
-
Power supply:
-
≤ 3.0mA; DC ≤ 10V DC
Recommend Products
China Huatian CYX23 series OEM 1MPa pressure range absolute stainless steel capacitive pressure sensor
Product Paramenters
|
Parameters
|
Typical value
|
Maximum
|
Unit
|
|
|
Zero output
|
+ 1
|
+ 2
|
MV
|
|
|
Nonlinearity
|
0.2
|
0.5
|
%FS
|
|
|
Hysteresis
|
0.05
|
0.08
|
%FS
|
|
|
Repeatability
|
0.05
|
0.08
|
%FS
|
|
|
Input / output impedance
|
2.6
|
5.0
|
K Ω
|
|
|
Zero temperature drift note 1
|
±0.4
|
±1.0
|
%FS, @25℃
|
|
|
Sensitivity temperature drift note 2
|
±0.4
|
±1.0
|
%FS, @25℃
|
|
|
Long term stability
|
0.2
|
0.3
|
%FS / year
|
|
|
Exciting current
|
1.5(the maximum input voltage can be 10V)
|
|
mA
|
|
|
Insulation resistance
|
500 (100VDC)
|
|
M Ω
|
|
|
Compensation temperature note 3
|
0～50; -10℃～70℃
|
|
℃
|
|
|
Working temperature
|
-40～+125
|
|
℃
|
|
|
Storage temperature
|
-40～+125
|
|
℃
|
|
|
Response time
|
≤1
|
|
ms
|
|
|
Housing and diaphragm material
|
316L stainless steel
|
|
|
|
|
Ed seal ring
|
18.5× 23.9 × 1.5mm
Fluororubber note 4, nitrile rubber |
|
|
|
|
Measuring medium
|
Fluids compatible with 316L, nitrile rubber or fluoroelastomer
|
|
|
|
|
Life (25 ℃)
|
> 1 × 108 pressure cycle (80% FS)
|
|
times
|
|
|
Filling medium
|
silicone oil
|
|
|
|
Products Description
CYX series Pressure Sensor
The piezoresistive pressure sensor
imported high precision, high stability force sensitive chips, adopted advanced technology, military industry production conditions and equipment manufacturing delicately.
Application: Widely used in petroleum, chemical, metallurgy, electric power, aviation, medical equipment.
NOTICE:

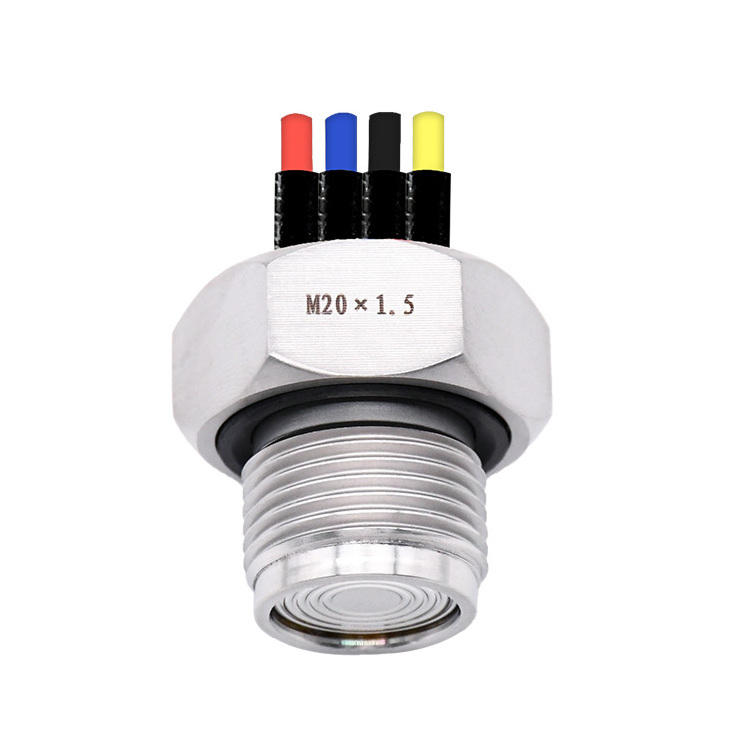

CYX23 series oil filled pressure sensor
CYX23 & CYX23P Model
The joint type flat film sensitive device.
It is produced by selecting international advanced highly stable and high precision silicon pressure chip, adopting stress-optimized design of sintering base, through SMD, gold wire bonding, diaphragm welding, high vacuum oil injection, pressure cycle stress relief, high temperature aging, temperature compensation and other processes.
Details Images
Product features:
Structure performance:
diaphragm material: stainless steel 316L
housing material: stainless steel 316L
pressure pipe material: stainless steel 316L
pin lead: Gold Plated Kovar
sealing ring: NBR, fluororubber (optional)
net weight: About 50g (CYX23), 70g (CYX25)
|
Range
|
Overload Pressure
|
Full Scale Output(mV)
|
Typical Value(mV)
|
Pressure Form
|
|
0~10 kPa
|
300%
|
35~60
|
45
|
G/D
|
|
0~20 kPa
|
300%
|
70~110
|
90
|
G/D
|
|
0~35 kPa
|
300%
|
55~80
|
70
|
G/A/D
|
|
0~70 kPa
|
300%
|
55~80
|
60
|
G/A/D
|
|
0~100 kPa
|
300%
|
60~85
|
75
|
G/A/D
|
|
0~200 kPa
|
300%
|
65~85
|
75
|
G/A/D
|
|
0~400 kPa
|
300%
|
60~80
|
70
|
G/A/D
|
|
0~600 kPa
|
200%
|
90~120
|
100
|
G/A/D
|
|
0~1.6 MPa
|
200%
|
80~120
|
100
|
G/A/D
|
|
0~1.0 MPa
|
200%
|
125~185
|
150
|
G/A/D
|
|
0~2.0 MPa
|
200%
|
50~70
|
60
|
G/A/D
|
|
0~3.5 MPa
|
200%
|
100~120
|
110
|
G/A/D
|
|
0~7.0 MPa
|
200%
|
120~150
|
135
|
A
|
|
0~10 MPa
|
200%
|
180~230
|
200
|
A
|
|
0~25 MPa
|
150%
|
140~170
|
150
|
A
|
|
0~40 MPa
|
150%
|
230~280
|
250
|
A
|
|
0~60 MPa
|
150%
|
100~160
|
130
|
S
|
|
0~100 MPa
|
150%
|
100~150
|
120
|
S
|
Application
The products are widely used in coal, petroleum, medicine, civil explosive, chemical, electric power, metallurgy, light industry, food, water conservancy, military industry and other fields.
Main uses:
industrial process control
liquid level measurement
gas and liquid pressure measurement
pressure switch and hydraulic system
medical and food equipment
