Foundry Clay Sand Jolt Squeeze Molding Machine
The Jolt Squeeze Moulding Machine Work Technical Parameters
|
Name
|
UNIT | Z143W | Z144W | Z145W | Z146W | Z146WB | Z148CW | Z148E |
| The Max. dimension of Sand Box | mm | 400*400*100 | 400*500*180 | 450*500*200 | 500*600*200 | 500*600*200 | 630*800*320 | 900*800*320 |
| Worktable/ Workbench dimension | mm | 560*420 | 465*500 | 600*460 | 550*700 | 550*700 | 900*730 | 1000*820 |
| Jarring Load / Air pressure | kgf /Mpa | 0.55 | 0.6 | 300/0.6 | 300/0.6 | 0.6 | 0.6 | 0.6 |
| Compressive stress | kgf | 4000 | 4200 | 6300 | 7000 | 8300 | 12000 | 18000 |
| Compress process | mm | 100 | 120 | 160 | 200 | 160 | 180 | 200 |
| Drawing mould process | mm | 160 | 150 | 200 | 200 | 200 | 320 | 320 |
| Distance compacting plate with worktable | mm | 200-370 | 300-400 | 300-450 | 350-450 | 450-600 | 680 | 600-700 |
| Productivity | mould/h | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 | 40-60 |
| Out line dimension L*W*H | mm | 950*680*1280 | 1050*1100*1410 | 1200*1000*1693 | 1380*850*1565 | 800*1200*1670 | 1600*1038*2200 | 2175x1600x2380 |
Work mechanism
The Jolt Squeeze Moulding Machine Work principle
The worktable fall and collide with floating shock-iron,and the sand was tighted slightly, and then to compaction,get the top and bottom of sand mould are tight. The slightly shock is high frequency (500-1000 times/min), small amplitude (5-25 mm) vibration instead of low frequency (60-120 times/min), the large amplitude vibration. This kind of moulding machine made of sand mold are good quality, the basic requirement is also lower.
The machine feature
- The Jolt Squeeze Moulding Machine Noise Controlled
- The Jolt Squeeze Moulding Machine Combined Jolt Squeeze
- The Jolt Squeeze Moulding Machine Accurate Centreline Draw
- The Jolt Squeeze Moulding Machine Variable Jolt Timers
- The Jolt Squeeze Moulding Machine Operational Roller on Pin Lift Draw
- The Jolt Squeeze Moulding Machine Operational Safety Guards

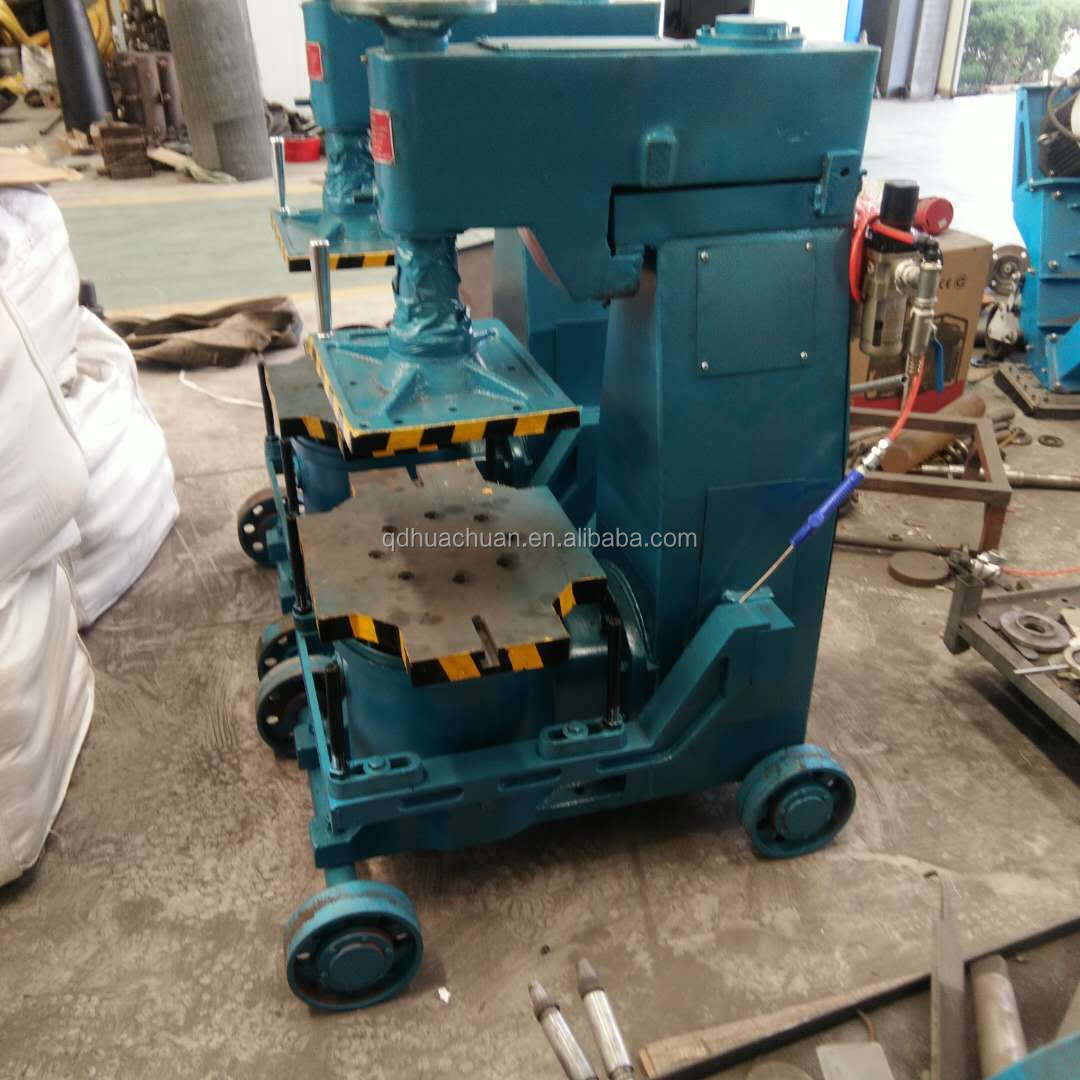

The moulding machine picture
Shipments
We can design product according to your demand. O ur molding machine have stabile performance , good quality and reliable service. We allow a proper discount according to the quantity you order.If you have any question, pls dont feel any hesitate to ask me, i will try best to meet your demand,It's make our company great honour.
