Quick Details
-
Lift Speed:
-
Depends
-
Weight (KG):
-
90 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Chain:
-
Carburizing
-
Hook:
-
Forged
-
Hook Material:
-
2.0 Manganese Steel
-
Running Testload (Ton):
-
75
-
No. of Load Chain Fall Lines:
-
24
-
Single/Double falls:
-
available
-
Single/Double speed:
-
available
-
Chain bag:
-
yes
-
Low headroom:
-
available
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HUGO-chain hoist
-
Lift Speed:
-
Depends
-
Weight (KG):
-
90 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Chain:
-
Carburizing
-
Hook:
-
Forged
-
Hook Material:
-
2.0 Manganese Steel
-
Running Testload (Ton):
-
75
-
No. of Load Chain Fall Lines:
-
24
-
Single/Double falls:
-
available
-
Single/Double speed:
-
available
-
Chain bag:
-
yes
-
Low headroom:
-
available

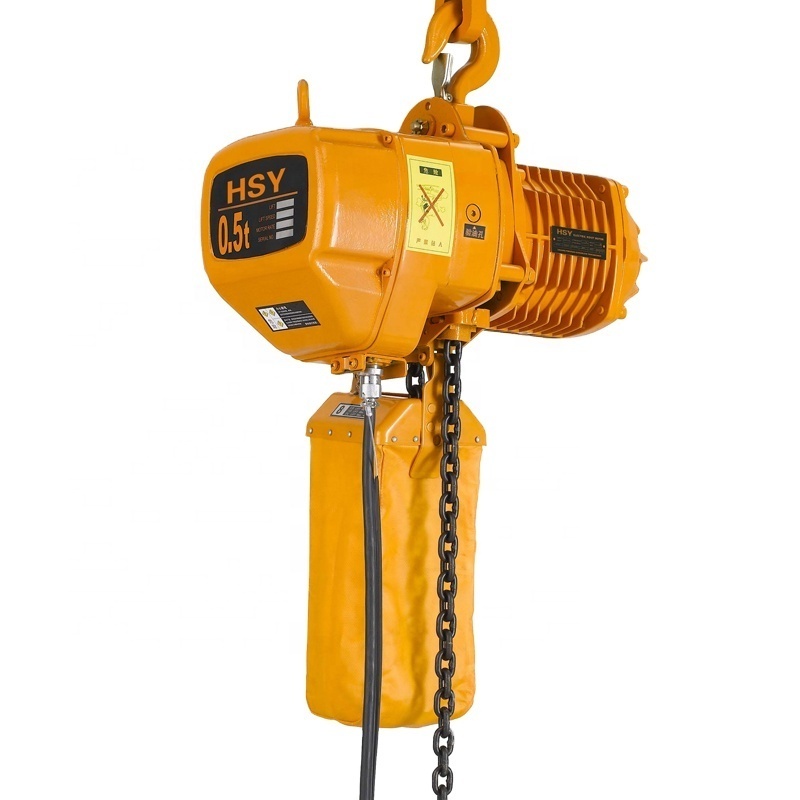

China Supplier building lifting hoist 5 ton crane electric CHAIN hoist With Hook
What Features of Our Electric Chain Hoist
Electric Chain hoist Advantage
Introduction of Hot Sale CE Certificate Crane, Eelectric Chain Hoist
1. With suspension hook, push, geared or electric trolley.
2. Standard lift height 3-9m, operating voltage 220-440V, 50/60Hz, 1-3phase.
3. Low voltage control 24V or 36V is standard.
4. High efficient energy-saving motor, asbestos free brake system.
5. Light weight, compact and solid body case.
6. Top and bottom hooks are fitted with safety latches as standard.
7. Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
8. Strong chain bucket.
9. Super strong surface hardened chain.
10. Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
Parameters of Factory Price Electric Lifting Hoist Electric Chain hoist
|
Model HSY |
Capacity (ton) |
Lifting Height (m) |
Lifting Speed (m/min) |
Lifting motor |
I-beam (mm) |
||||
|
Power KW |
Rotational Speed (r/min) |
Phase |
Voltage (V) |
Frequency (Hz/s) |
|||||
|
1-1 |
1 |
3 |
6.8 |
1.5 |
1440 |
3 |
380/220 |
50/60 |
75-125 |
|
2-2 |
2 |
3 |
3.4 |
1.5 |
1440 |
3 |
380/220 |
50/60 |
75-125 |
|
2.5-1 |
2.5 |
3 |
5.6 |
3.0 |
1440 |
3 |
380/220 |
50/60 |
82-153 |
|
3-2 |
3 |
3 |
3.3 |
3.0 |
1440 |
3 |
380/220 |
50/60 |
82-153 |
|
5-2 |
5 |
3 |
2.8 |
3.0 |
1440 |
3 |
380/220 |
50/60 |
100-178 |
1.Small order welcome for first time
2.3% discout for new customers
3.Offer quality assurance contract
4.Offer confidentiality agreement "business secret contract"
What Applications of 1 ton Chain Hoist Crane with Trolley Electric Winch
|
Motor Light weight and small volume of high-performance motor. Rotating speed can be up to 3000r.m.p. High starting torque and high energy efficiency. Sustained rate of electric connection reaches up to 60%, which can meet the demand for high frequency handling. |
|||
|
Hook
it is hot forging with perfect strength
|
Push button Waterproof push button is applied .it is light and durable.
|
||
1 ton hoist crane Factory View
Packaging & Shipping
Our Certificates:
