- Product Details
- {{item.text}}
Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHIYUE
-
Voltage:
-
Local Voltage
-
Dimension(L*W*H):
-
1350*1460*1800mm
-
Weight (KG):
-
999 kg
-
Name:
-
QTJ4-40 hollow block making machine cement block making machines price
-
Vibration method:
-
Platform vibration
-
Raw material:
-
concrete, sand,cement, fly ash, lime, gypsum,etc.
-
Vibration frequency:
-
2800r/min
-
Support machine:
-
concrete mixer
-
Vibration Force:
-
35KN
-
Worker:
-
2-3people
-
Pallets size:
-
850*450mm
-
Total Weight:
-
1T
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine
-
Brick Raw Material:
-
Cement
-
Production Capacity (Pieces/8 hours):
-
Other, 4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours, 2000-2500pieces/8hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHIYUE
-
Voltage:
-
Local Voltage
-
Dimension(L*W*H):
-
1350*1460*1800mm
-
Weight (KG):
-
999 kg
-
Name:
-
QTJ4-40 hollow block making machine cement block making machines price
-
Vibration method:
-
Platform vibration
-
Raw material:
-
concrete, sand,cement, fly ash, lime, gypsum,etc.
-
Vibration frequency:
-
2800r/min
-
Support machine:
-
concrete mixer
-
Vibration Force:
-
35KN
-
Worker:
-
2-3people
-
Pallets size:
-
850*450mm
-
Total Weight:
-
1T
Products Description

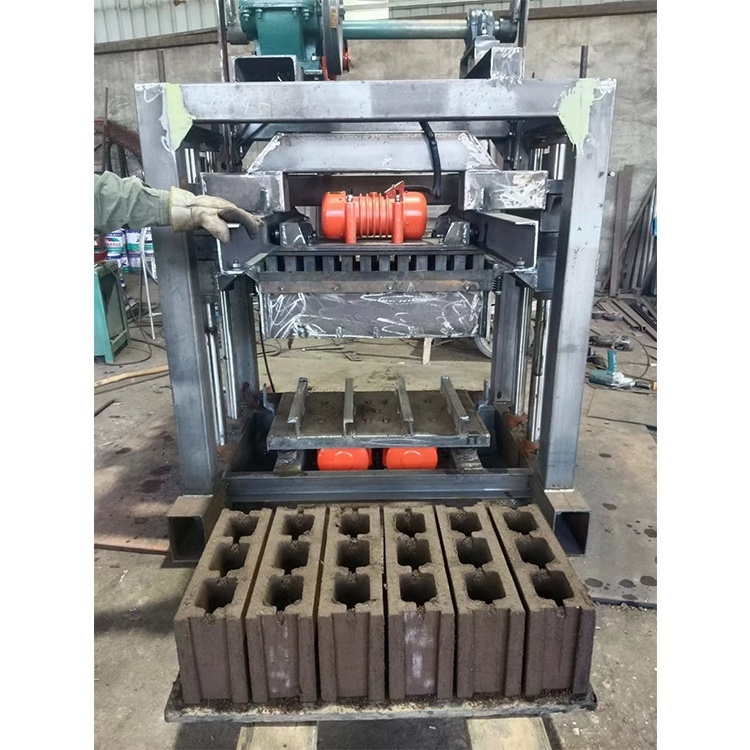

QTJ4-40 concrete hollow brick making machine
1.It is a kind of semi-automatic machine based on the original medium and small-scale block machine.
2.It adopts top die push and pull and automatic scraper,which is smple to operate as well as the large-scale equipment.
3.It also makes the mould and the squeeze head works more precise.
4.The bed mould vertical vibration and upper mould compression vibration improving the efficiency greatly
5.It manufactures blocks with more average density and higher strength because of the above four reason.
2.It adopts top die push and pull and automatic scraper,which is smple to operate as well as the large-scale equipment.
3.It also makes the mould and the squeeze head works more precise.
4.The bed mould vertical vibration and upper mould compression vibration improving the efficiency greatly
5.It manufactures blocks with more average density and higher strength because of the above four reason.
Common blocks theoretical Capacity and common blocks samples
|
Technique Parameters
|
|
|
|
Machine power
|
9.5kw
|
|
|
Molding cycle
|
40s
|
|
|
Capacity
|
2000-2500pcs/8hours
|
|
|
Raw material
|
concrete, sand,cement, fly ash, lime, gypsum,etc.
|
|
|
Machine weigh
|
1T
|
|
|
Overall size
|
1350*1460*1800mm
|
|
|
Pallet size
|
850*450mm
|
|
|
Voltage
|
According to your local voltage
|
|
|
Theoretical productivity
|
|
|
|
|
||||
|
No.
|
Block size
|
Pcs/mould
|
Pcs/hour
|
Pcs/day
|
||||
|
1
|
400*200*200mm
|
4
|
360
|
2800
|
||||
|
2
|
400*150*200mm
|
5
|
450
|
3600
|
||||
|
3
|
225*112.5*60mm
|
9
|
800
|
6400
|
||||
