Quick Details
-
Product name:
-
12m heavy duty telecommunication electric telescopic mast tower
-
Extended height:
-
12m
-
Closed height:
-
2.6m
-
Max payload:
-
200kgs
-
Max windload:
-
80km/h
-
Material:
-
aluminum alloy 6063B/T5
-
Motor Voltage:
-
AC220v/300w
-
Color:
-
Natural color
-
Application:
-
Lifting head fixed equipment
Quick Details
-
Brand Name:
-
Talents carbon steel mast tower
-
Model Number:
-
TAL-M12-2.6--200
-
Place of Origin:
-
Tianjin, China
-
Product name:
-
12m heavy duty telecommunication electric telescopic mast tower
-
Extended height:
-
12m
-
Closed height:
-
2.6m
-
Max payload:
-
200kgs
-
Max windload:
-
80km/h
-
Material:
-
aluminum alloy 6063B/T5
-
Motor Voltage:
-
AC220v/300w
-
Color:
-
Natural color
-
Application:
-
Lifting head fixed equipment

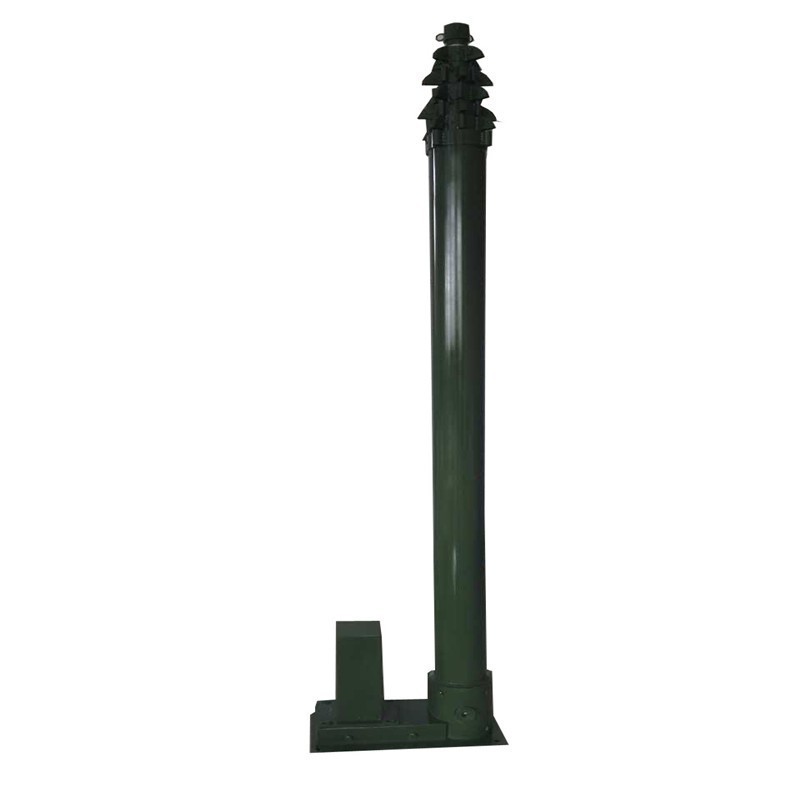

12m heavy duty telecommunication electric telescopic mast tower
heavy duty 12m carbon steel electric telescopic mast tower
Specification list
| Article number: | 01TAL-M12-2.6--200 |
| Max top payload: | 200kgs |
| Closed length: | 12000mm |
| Extended length: | 2600mm |
| Main poles' sections: | 6 sections |
| sec.1#-8#(OD//thickness mm): | 40/60/80/100/120/150mm |
| Bottom base size (L/W/thickness): | 450/210/10mm |
| Top plate size (dia./thickness): | 130mm/10mm |
| Working temperature: | -40--+50C |
| Mortor power: | AC220v/300w |
| Wind load: | 80km/h |
| Pulling cord's OD: | 2mm |
| Material for main pole: | carbon steel |
| Material for bottom base: | iron steel |
| Material for accessories: | iron steel |
| Material for pulling cord: | stainless steel |
| Material for other asscessaires | iron steel |
Packing list:
| Mian pole in 8 sections: | 1 set |
| Mortor(AC220v/300w): | 1 set |
| Handle lifting bar: | 1 piece |
| Electrical equipment control box: | 1 set |
| Remote controller: | 2 pieces |
| Bottom base: | 1 piece |
| top plate: | 1 piece |
| Pulling cord box with handle bars: | 3 sets |
| Ground anchor: | 3 pieces |
| tripod | 1 set |
| Surface color Technology: | zinc plated |
| Packing method: |
the main pole and the accessories are wrapped with foamed membrane and then to be packed into a polywood case |
Mortorized lifting telescopic mast
| Article No. |
Retracted height (mm) |
Extended height (mm) |
Diameter range (mm) |
Section No.s |
top payload (kgs) |
| TAL-2M-30 | 1000 | 2000 | 40-60 | 3 | 30 |
| TAL-2M-100 | 1200 | 2000 | 105-130 | 2 | 100 |
| TAL-3M-250 | 1750 | 3000 | 90-130 | 3 | 250 |
| TAL-4M-250 | 1800 | 4000 | 90-130 | 3 | 250 |
| TAL-4M-10 | 1550 | 4000 | 40-80 | 4 | 10 |
| TAL-4M-50 | 1200 | 4000 | 60-130 | 6 | 50 |
| TAL-5M-150 | 1400 | 5000 | 60-160 | 6 | 150 |
| TAL-5M-600 | 1600 | 5000 | 60-150 | 5 | 600 |
| TAL-6M-10 | 1700 | 6000 | 40-90 | 6 | 10 |
| TAL-6M-50 | 1700 | 6000 | 50-105 | 6 | 50 |
| TAL-8M-30 | 2200 | 8000 | 40-105 | 6 | 30 |
| TAL-10M-30 | 2450 | 10000 | 40-105 | 7 | 30 |
| TAL-12M-200 | 2450 | 12000 | 70-160 | 7 | 200 |
| TAL-12M-35 | 2300 | 12000 | 40-130 | 7 | 35 |
| TAL-12M-100 | 2700 | 12000 | 50-130 | 7 | 100 |
| TAL-15M-20 | 2800 | 15000 | 40-105 | 7 | 20 |
| TAL-15M-30 | 2800 | 15000 | 50-130 | 7 | 30 |
| TAL-15M-300 | 2700 | 15000 | 60-155 | 7 | 300 |
| TAL-20M-200 | 3700 | 20000 | 70-230 | 7 | 200 |
| TAL-25M-80 | 3400 | 25000 | 60-230 | 10 | 80 |
| TAL-25M-60 | 3400 | 25000 | 60-210 | 10 | 60 |
| TAL-28M-15 | 3700 | 28500 | 30-130 | 10 | 15 |
| TAL-35M-10 | 3900 | 35000 | 30-180 | 11 | 10 |
