Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT, laser engraving machine
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Atomstack
-
Dimension(L*W*H):
-
63*36*13cm
-
Weight (KG):
-
6.5 KG
-
Core Components:
-
Other
-
Material:
-
Aluminum Alloy Frame
-
Control Software:
-
LaserGRBL, LightBurn,APP, Offline
-
Certification:
-
CE FCC RoHS PSE
-
operating system:
-
Win XP / Win 7 / Win 8 / XP / Win 10 / Win 11 / Mac
-
Key Selling Points 2:
-
0.1MM metal cut,Deep marking,Portable,Automated loading
-
Application 2:
-
Laser Marking,Laser Cut
-
Engraving accuracy:
-
0.01mm
-
After-sales service provided:
-
Online support,Video Technical Support
-
Support customization:
-
OEM,ODM
-
Style:
-
Protable Mini Desktop Laser Engraver
Quick Details
-
Engraving Area:
-
400*400mm
-
Laser Type:
-
Diode
-
Engraving Speed:
-
3000mm/min
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT, laser engraving machine
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Atomstack
-
Dimension(L*W*H):
-
63*36*13cm
-
Weight (KG):
-
6.5 KG
-
Core Components:
-
Other
-
Material:
-
Aluminum Alloy Frame
-
Control Software:
-
LaserGRBL, LightBurn,APP, Offline
-
Certification:
-
CE FCC RoHS PSE
-
operating system:
-
Win XP / Win 7 / Win 8 / XP / Win 10 / Win 11 / Mac
-
Key Selling Points 2:
-
0.1MM metal cut,Deep marking,Portable,Automated loading
-
Application 2:
-
Laser Marking,Laser Cut
-
Engraving accuracy:
-
0.01mm
-
After-sales service provided:
-
Online support,Video Technical Support
-
Support customization:
-
OEM,ODM
-
Style:
-
Protable Mini Desktop Laser Engraver
About ATOMSTACK :
100% laser engraving machine manufacturer located in China, welcome to visit our factory whenever you like! It is important to know that our factory do not just sell "boxes", but we offer support and advice to get the best results with the laser engraver you choose. We are always available to provide the spare parts you need with your laser engraving machine .You could reply on us for the consistent quality and service!
About Tax:
we do not including any tax and duty!
About customs charging fee . nobody can control , every country customs has different Import and export tariff system.
About Maintenance:
All machines have 13 months warranty against manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free..
100% laser engraving machine manufacturer located in China, welcome to visit our factory whenever you like! It is important to know that our factory do not just sell "boxes", but we offer support and advice to get the best results with the laser engraver you choose. We are always available to provide the spare parts you need with your laser engraving machine .You could reply on us for the consistent quality and service!
About Tax:
we do not including any tax and duty!
About customs charging fee . nobody can control , every country customs has different Import and export tariff system.
About Maintenance:
All machines have 13 months warranty against manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free..
|
Item model number
|
ATOMSTACK X7 A10 S10 PRO
|
|
Print Size
|
Recommend Print Size 410*400mm
|
|
Carving Objects
|
wood, bamboo, cardboard, plastic, leather, MDF, slate, lacquered metal, mirror stainless steel etc
|
|
Cutting Objects
|
cardboard, non-woven fabric, veneer, acrylic, some thin plastic board, sponge, MDF, leather etc
|
|
Laser power
|
50W
|
|
Laser output power
|
10-11W
|
|
Wave Length
|
445 ± 5nm
|
|
Engraving accuracy
|
0.01mm
|
|
Focusing method
|
fixed focus laser, no need to focus
|
|
Laser protective cover
|
Protect the user's eyes and prevent pets from grabbing the laser spot.
|
|
Operating software
|
LaserGRBL, LightBurn,
|
|
Support system
|
support Win XP / Win 7 / Win 8 / XP / Win 10 system
|
|
Input Format
|
NC, BMP, JPG, PNG, DXF, etc.
|
|
Data transmission method
|
USB connection
|
|
Input Voltage
|
AC100-240V, 50/60Hz
|
|
Output Voltage
|
DC12V, 5A
|
|
Package weight
|
6.5kg
|
|
Equipment size
|
600*570*270mm
|
|
Packing size
|
600*350*140mm
|
|
Certification
|
CE FCC RoHS PSE
|
Product Description
【
Advanced Dual Compression Spot Laser】

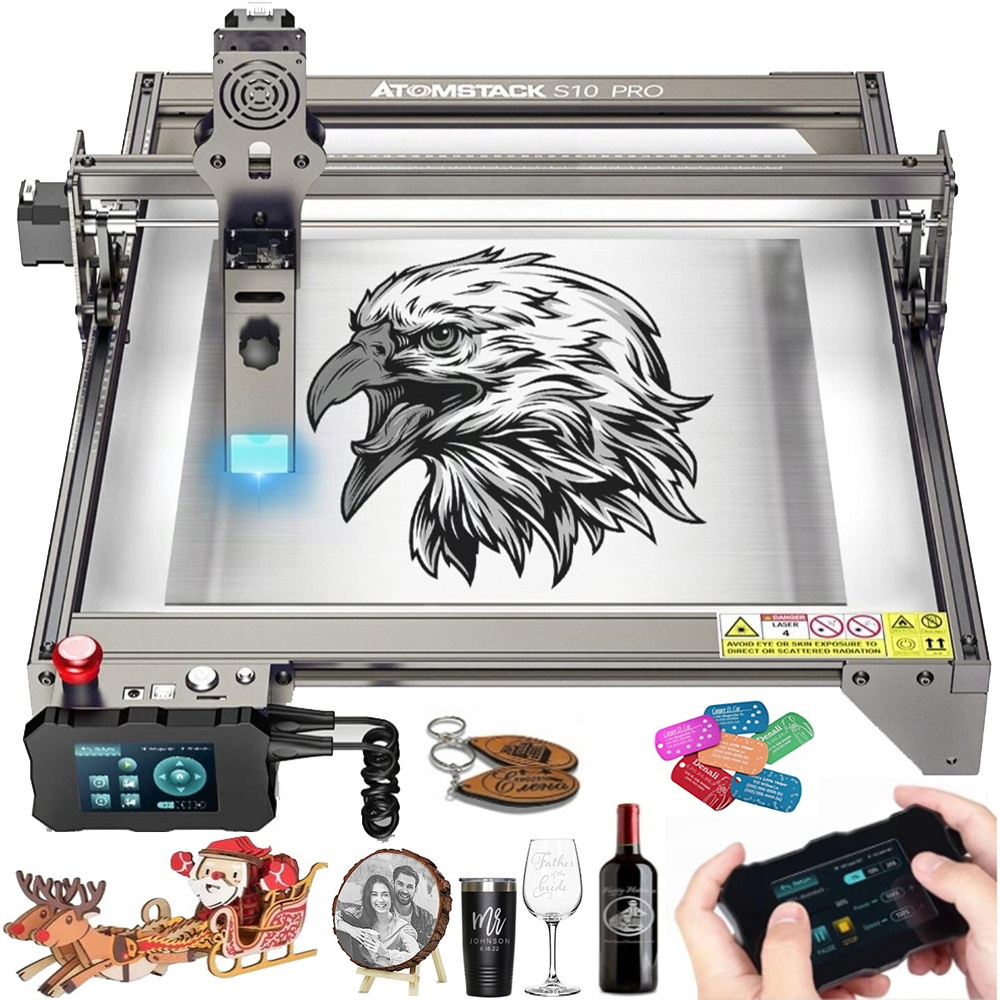

- ATOMSTACK S10 Pro laser engraver owns 50W machine power and 10W output laser power, and its ultra-fine laser focus area is reduced to 0.06*0.06mm. The high-density laser can cut 15~20mm thick wood and 10-15mm acrylic (Multiple Passes), where its cutting speed is 40% higher than the ordinary model. Also it can engrave mirror, stainless steel metal, ceramics, glass (needing better effect, suggest use "acrylic paint" to blacken their surface) .
【3 Operation Methods of Online and Offline 】
- There are 3 modes operation methods of S10 Pro laser engraver: Computer USB (PC softwares) / Touch screen (TF card offline) / Mobiles phone APP("ATOMSTACK" APP can be download from your phone AppStore). In this way, even if without internet, you still can achieve offline engraving. Besides, it is equipped with an emergency stop button to stop it when unexpected situation occurs. Please note there are operation videos you can refer in this link.
【High-Performance Fixed-Focus Laser】
- No need to be adjusted the focus before engraving. The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers. Automatic fixed focus means the new laser combine precision engraving and high energy cutting at the same time. When it comes to focusing height adjustment, there is an adjustment knob (also called spiral button), which says goodbye to traditional troublesome screwdriver twisting and brings you convenience.
【Panoramic Glass Eye Protection Design】
- S10 laser engraving machine with newest panoramic filter glass protective cover plays a very good role in protecting your eyes, filtering 97% of the ultraviolet light, and you do not need to wear goggles and could watch the engraving clearly, which reduces the cost of your goggles and more convenience. Absolutely, it not only can effectively filter the laser and prevent eye burns, but also can eliminate the hidden danger of easy burning of acrylic.
【Wide Compatibility and Team Service】
- The Newest ATOMSTACK S10 Pro laser cutter is compatible with various mature software,such as LaserGRBL(Free), LightBurn(may need paid), supports Win XP / Win 7 / Win 8 / XP / Win 10 / Win 11, and supports Mac system (LightBurn). The engraving file format supports NC, BMP, JPG, PNG, DXF etc. Furthermore, We provide 12 months warranty (free maintenance and broken parts replacement) for you and also welcome to your consultation if you have any questions.
Kindly Reminder : A10 PRO , S10 PRO , X7 PRO all are same machine, just color is different , We will ship randomly based on available stock . thanks for your choose our store and wish you have a happy shopping !
|
Materials that can be carved
|
Basswood，Yellow peach wood，Pine，Paulownia wood，Bamboo，Leather，Denim，Ceramics，Ceramic tile ，Alumina，Glass，Acrylic，Translucent，Acrylic，Two color plate，Plastic，Resin，High density foam board，Rubber，Kraft Paper，Office paper，Carton，MDF，Mirrors，Rock，Crystal Stone，PCB Board，Mirror Stainless Steel，Brushed Stainless Stee，Galvanized iron，Iron sheet，Brass，Brass，Wrench (chrome- vanadium alloy)，Cobble Stone
|
|
materials that can be cut
|
Wood 15-20MM
，Bamboo，Leather，Kraft Paper，
black Acrylic
30MM，MDF 5MM
，EVA Foam ，Glutinous rice paper，Drywall
|
|
Note
|
Cutting data may be related to material, climate, voltage, etc., and reasonable error is allowed
|
