Quick Details
-
Model Number:
-
GUF142
-
Measurement Liquid:
-
Water, Sewage, Seawater(Other liquid need to customized)
-
Temperature:
-
0.1-30℃
-
Working Pressure:
-
1.6Mpa (2.5Mpa optional)
-
Communication Interface:
-
RS485/USART/ Infrared
-
Output Signal:
-
Two Way OCT pulse output/TTL pulse output/One way 4-20mA output
-
Power supply:
-
DC8-36V
-
Protection Class:
-
IP68
-
Diameter:
-
DN15~DN300
-
Application:
-
agricultural irrigation,Water Resource Management,
-
Product name:
-
GUF142 Battery remote reading smart ultrasonic wireless water meter
Quick Details
-
Type:
-
Ultrasonic meters
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
GAIMC
-
Model Number:
-
GUF142
-
Measurement Liquid:
-
Water, Sewage, Seawater(Other liquid need to customized)
-
Temperature:
-
0.1-30℃
-
Working Pressure:
-
1.6Mpa (2.5Mpa optional)
-
Communication Interface:
-
RS485/USART/ Infrared
-
Output Signal:
-
Two Way OCT pulse output/TTL pulse output/One way 4-20mA output
-
Power supply:
-
DC8-36V
-
Protection Class:
-
IP68
-
Diameter:
-
DN15~DN300
-
Application:
-
agricultural irrigation,Water Resource Management,
-
Product name:
-
GUF142 Battery remote reading smart ultrasonic wireless water meter
Products Description
What is a ultrasonic water meter?
GUF142 Ultrasonic water meter adapt advanced transit-time measurement technology , with the remarkable features of low power consumption, wide measuring range ratio, stable and reliable measurement .Each component reaches IP68 protection class, to ensure long term operation though water in the inside meter. Widely used in the urban water supply, water resources management, irrigation, landscape management, industrial production and automation industry.
Get an Instant Quote Now !
You need more than just a single ultrasonic water meter, you need a veteran supplier who has been in the field for 10+ years to build your brand and grow your profits. Let GAIMC help you achieve business success.
Details Images
Consumers deserve a better ultrasonic water meter.
With more than 10 years experience in ultrasound, we are well established on the market as a specialist solutions provider in the field of ultrasonic technologies.With a strong research and development department and flexible manufacture, all under one roof, we are your ideal partner for customer-specific solutions. Together with you, our client, we analyse your exact measurement and metering requirements, The short distances between our various departments guarantee a smooth and reliable transition from development to serial production without any loss of knowledge.
DN15~40(thread type)
Material:copper

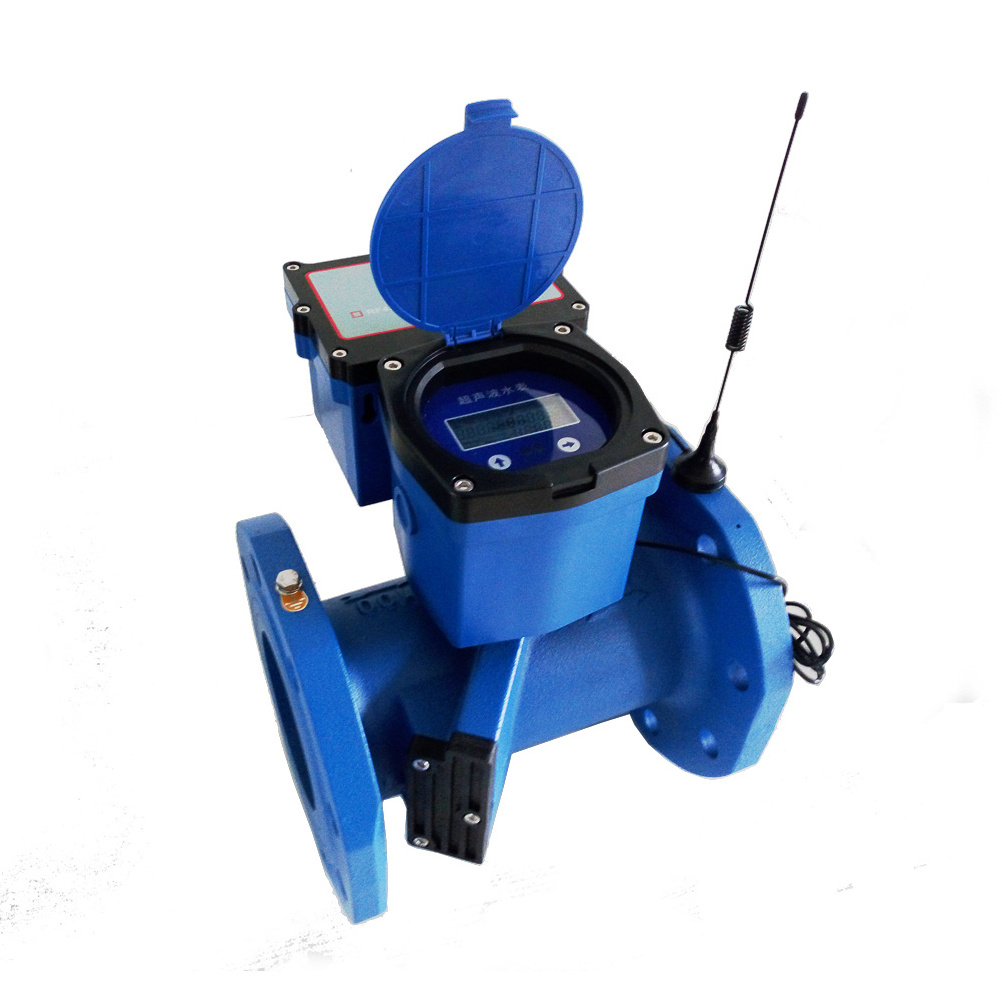

>DN50 (flange type)
Material:Casted ductile iron/Welded carbon steel
Product Parameters
|
Model
|
GUF142
|
|
Measurement Liquid
|
Water, Sewage, Seawater(Other liquid customized)
|
|
Temperature
|
0.1-30℃
|
|
Working Environment
|
Temperature:-10-45℃；Humidity:≤100％（RH）
|
|
Working Pressure
|
1.6Mpa (2.5Mpa optional)
|
|
The sensitivity of upstream
|
U3
|
|
The sensitivity of downstream
|
D0
|
|
Climatic and mechanical
|
C class
|
|
Electromagnetic compatibility class
|
E2 class
|
|
Communication Interface
|
RS485/USART/ Infrared
|
|
Output Signal
|
Two Way OCT pulse output/TTL pulse output/One way 4-20mA output
|
|
Power supply
|
Built-in Lithium battery(3.6,19AhV) / DC8-36V power supply
|
|
Protection Class
|
IP68, can work 2 meters under water
|
|
Digital Display
|
Multi line 9 digital accumulative flow,
4 digital display for instantaneous flow, varies of state prompt and units
|
|
Data Storage
|
EEPROM/FLASH automatically record the accumulative flow of last 512 days
|
|
Measurement Cycle
|
Measuring : 1 times/second ; Verification: 4 times/second
|
|
Power Consumption
|
≤2.7AH/Year, 6 years battery life
|
Flow Range
|
Nominal diameter
|
Measurement range ratio (R)
|
Flow rate(m³/h)
|
|
|
|
|
||||
|
|
|
Starting flow rate
|
Minimum flow rate
Q1
|
Transitional flow rate
Q2
|
Permanent flow rate
Q3
|
Overload flow rate
Q4
|
||||
|
DN15
|
200
|
0.003
|
0.0125
|
0.020
|
2.500
|
3.125
|
||||
|
DN20
|
200
|
0.0035
|
0.016
|
0.026
|
3.200
|
4.000
|
||||
|
DN25
|
200
|
0.007
|
0.020
|
0.032
|
4.000
|
5.000
|
||||
|
DN32
|
200
|
0.010
|
0.032
|
0.050
|
6.300
|
7.875
|
||||
|
DN40
|
200
|
0.015
|
0.100
|
0.160
|
20.000
|
25.000
|
||||
|
DN50
|
100
|
0.030
|
0.400
|
0.640
|
40.000
|
50.000
|
||||
|
DN65
|
100
|
0.059
|
0.630
|
1.008
|
63.000
|
78.750
|
||||
|
DN80
|
100
|
0.064
|
1.000
|
1.600
|
100.000
|
125.000
|
||||
|
DN100
|
100
|
0.094
|
1.600
|
2.560
|
160.000
|
200.000
|
||||
|
DN125
|
100
|
0.120
|
2.000
|
3.200
|
200.000
|
250.000
|
||||
|
DN150
|
100
|
0.270
|
2.500
|
4.000
|
250.000
|
312.500
|
||||
|
DN200
|
100
|
0.315
|
4.000
|
6.400
|
400.000
|
500.000
|
||||
|
DN250
|
100
|
0.508
|
4.000
|
6.400
|
400.000
|
500.000
|
||||
|
DN300
|
100
|
0.770
|
6.300
|
10.080
|
630.000
|
787.500
|
||||
Application
What is a ultrasonic water meter used for?
GUF142 ultrasonic water meter widely used in the urban water supply, water resources management, irrigation, landscape management, industrial production and automation industry.
