HuanSheng New Energy 3 Wheel Waste Motorcycle Mini Electric Tricycle Garbage Dumper Truck For Sale

HuanSheng New Energy 3 Wheel Waste Motorcycle Mini Electric Tricycle Garbage Dumper Truck For Sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $1500

≥12 Sets

US $1400

≥24 Sets

US $1380

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Market Segement:: Mining transportation

Engine Capacity:: 4 - 6L

Gross Vehicle Weight:: ≤5T

Drive Wheel:: 4X2

After-sales Service Provided:: Video technical support, Overseas Call Centers, Return and Replacement, Online support, Shop warranty

Brand Name:: Huansheng

Place of Origin:: Henan, China

Dimensions (L x W x H) (mm):: 2600x1000x1200mm

Cargo Tank Dimension:: 1500x1000x400mm

Product name:: Dumper Truck

Keywords:: Dump Truck Dumper Truck Tipper Truck

Tire:: 4.00-12/4.50-14

Loading capacity:: 1ton

Model:: 1T 2T 3T 4T

Type:: Dumping Truck

Name:: Mini Small Dump Truck Tipper Truck

Application:: Transport Cargo

Origin:: 100% China

Usage:: Material Transportation

Quick Details

Condition:: New

Horsepower:: 18hp

Emission Standard:: Euro 2

Market Segement:: Mining transportation

Engine Capacity:: 4 - 6L

Gross Vehicle Weight:: ≤5T

Drive Wheel:: 4X2

After-sales Service Provided:: Video technical support, Overseas Call Centers, Return and Replacement, Online support, Shop warranty

Brand Name:: Huansheng

Place of Origin:: Henan, China

Dimensions (L x W x H) (mm):: 2600x1000x1200mm

Cargo Tank Dimension:: 1500x1000x400mm

Product name:: Dumper Truck

Keywords:: Dump Truck Dumper Truck Tipper Truck

Tire:: 4.00-12/4.50-14

Loading capacity:: 1ton

Model:: 1T 2T 3T 4T

Type:: Dumping Truck

Name:: Mini Small Dump Truck Tipper Truck

Application:: Transport Cargo

Origin:: 100% China

Usage:: Material Transportation

Products Description

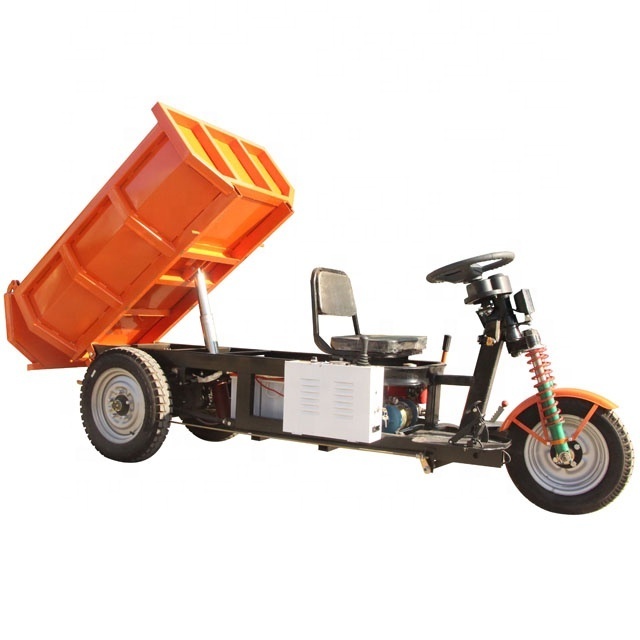

HuanSheng New Energy 3 Wheel Waste Motorcycle Mini Electric Tricycle Garbage Dumper Truck For Sale

Electric tricycle dumper is one of our company's main products, selling well all over the world, and widely praised for its high quality. This dumper has an automatic hydraulic lifting system and can be charged for use . No noise, no pollution, high efficiency, low energy consumption. The dumper is suitable for brick kiln factory, refractory factory, flour factory, chemical plant, furnace plant, as well as the construction site transportation loading and unloading of bulk materials and other operational needs.

product name	Electric tricycle dumper	Model	HS150
Overall sizes	*260010001200mm*
Work platform height	600mm
Cargo box sizes	*15001000400mm*
Voltage	48V	Battery model	185
Lifting Motor Power	1000W	Driving Motor Power	1000W
Weight	520kg	Loading capacity	1000kg
Front tire type	400-12	Rear tire type	450-14
Operating speed	15-25km/h
Charging time	First is 12h , normal 6h to 8h.
Working time	10-12h

Product Details

Power system

Battery

The dumper is equipped with 48V battery (4* 12v battery).
A full charge can continue to work for 10-12 hours , and the capacity of the battery will not be reduced for two years under normal use.
The first charge will take 12 hours, and then, it will take 6-8 hours each time. Compared to dumpers that use gasoline or diesel, the cost of transportation is reduced by 1/4 to 1/5.

Ammeter

The ammeter is connected to the battery so that the driver can clearly see how much power is left in case the battery runs out en route.

The hydraulic system

Hydraulic fuel tank

Hydraulic cylinder

The hydraulic control rod

( maximum lifting Angle 45° ) controls the lifting of the hydraulic cylinder by flicking the hydraulic control rod, so as to lift or lower the bucket.

Motor

Lifting Motor

The power of lifting motor is 1000W .
It is applied to lift and lower of cargo box. Our factory use the standard high quality DC motor, has the good speed regulation function, under the heavy load condition can realize the uniform, smooth stepless speed regulation, and the speed regulation range is wider.

Driving Motor

The power of driving motor is 1000W . It is used to control the movement of the dumper, to change speed by driving the gearbox connected to it, while protecting the motor from being burnt out. This type of motor has long range, high speed and smooth operation.

Rear axle

The dumper has a single chain rear axle . The motor is connected directly to the rear axle.
There are three types of rear axle, chain type , shaft-driven type and in-line type . The chain type rear axle has two kinds of single chain and double chain.

Tire

Front/Rear tire : 400-12/450-14 Our factory adopts high quality brand pneumatic tires. It can support the dumper perfectly. It also can alleviate the impact of the outside world, bear a variety of deformation, load and high and low temperature to ensure the safety and stability of the dumper.

Cargo box sizes

Length : 1500mm
Width : 1000mm
Height : 4 00mm
Cargo box's raw materials are very good, very strong and have a large capacity, which can carry a lot of articles. There are two types of U-shaped bucket and square-shaped bucket.

Motion control system

Accelerator pedal

Step down and increase dumper speed.

Hand brake

Bring the dumper to a stop.

Break

Step down and stop the dumper.

Suspension system

single spring shock absorber 11 spring plates

The spring steel plate is made of special steel, which has higher strength and toughness. When the impact of the road comes, the steel plate is deformed and plays the role of cushioning and damping. Alleviate the vibration of electric dumper, protect the dumper from vibration damage.

Auxiliary lighting

LED lights can support driving at night, making driving safer.

Packaging & Shipping

LCL: less than container load If you order between 1 and 4 units, we will use LCL, pack the products in wooden boxes and ship them to you.

FCL: full container load If you order a large number of products, we will use FCL method and ship the products to you.

Service and warranty

Pre-sale

We will listen to your needs carefully and recommend the most suitable products for you. When you do not understand the place, we will be timely, patience, enthusiasm for you to answer.

In the sales process

We will timely send you the details of stock preparation and real-time status of products, and actively communicate with you so that you can timely understand the status of your goods. At the same time, we will ensure delivery on time.

After-sales

When your goods arrive, we will communicate with you in a timely manner to give you online technical guidance to help you understand how to use our products. If necessary, we can send technicians to the area for guidance.

About Us

Henan Huansheng Machanical Equipment Co., Ltd.

Henan Huansheng Machanical Equipment Co., Ltd. is a mine equipment manufacturer with complete testing equipment and a strong technical force. There are many kinds of mechanical products, good quality, novel style, and reasonable prices, which are widely used in mining and other related industries. Our products keep up with the evolving industry direction, to meet the diversified needs of customers, widely recognized and trusted. Products sell well in North America, South America, Africa, Asia, and other countries and regions, the number of new and old customers steadily increases, customer trust is our biggest driving force, we insist on doing better products!

Customized Service

1000W Brush machine

Mainly used in lifting motor , chain type rear axle and shaft drive rear axle .

3000W Brush machine

Mainly used in chain type rear axle and shaft drive rear axle.

Brushless machine

3000W~10000W is brushless motor. Mainly used in chain rear axle , s haft-driven rear axle and in-line rear axle.

Double chain rear axle

For a 1 ton load capacity tricycle, a single chain rear axle is used. For 1.5 tons and above , the remaining three rear axle can be customized.
