Quick Details
-
Color Rendering Index(Ra):
-
>80
-
Product Weight（kg）:
-
0.75
-
Input Voltage(V):
-
12V~240V
-
Lamp Luminous Flux(lm):
-
NA
-
Lamp Luminous Efficiency(lm/w):
-
NA
-
CRI (Ra):
-
80
-
Beam Angle(°):
-
360
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ONN
-
Certification:
-
CE ROHS FCC
-
Power:
-
0.7W for each color and 0.5W for buzzer
-
Input voltage:
-
DC12V, DC24V
-
Current (DC24V):
-
30mA for each color, 20mA for buzzer
-
IP rating:
-
IP43
-
Buzzer volume:
-
>85dB
-
Material:
-
PC lens and ABS base
-
Lifetime:
-
50,000 hours
-
Installation:
-
M12 nut
-
Lamp color:
-
RYG
Quick Details
-
Light Source:
-
LED
-
Color Temperature(CCT):
-
Other
-
Lamp Body Material:
-
PC lens and ABS base
-
Color Rendering Index(Ra):
-
>80
-
Product Weight（kg）:
-
0.75
-
Input Voltage(V):
-
12V~240V
-
Lamp Luminous Flux(lm):
-
NA
-
Lamp Luminous Efficiency(lm/w):
-
NA
-
CRI (Ra):
-
80
-
Beam Angle(°):
-
360
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ONN
-
Certification:
-
CE ROHS FCC
-
Power:
-
0.7W for each color and 0.5W for buzzer
-
Input voltage:
-
DC12V, DC24V
-
Current (DC24V):
-
30mA for each color, 20mA for buzzer
-
IP rating:
-
IP43
-
Buzzer volume:
-
>85dB
-
Material:
-
PC lens and ABS base
-
Lifetime:
-
50,000 hours
-
Installation:
-
M12 nut
-
Lamp color:
-
RYG

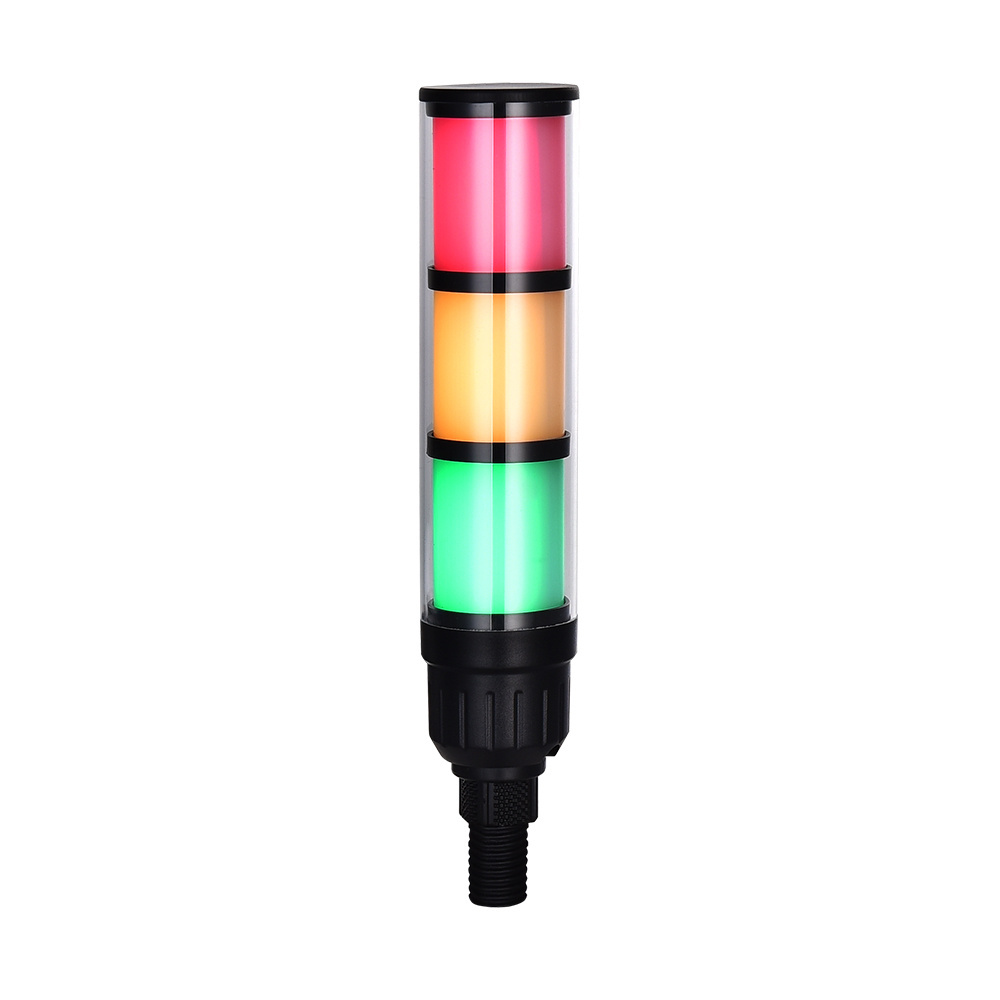

ONN M4-30 CE Approved Tri-color Led Signal Tower Light RYG 24V/220V stack light tower light
Product Description
Features
1.Diameter 30mm, compact design, 3 color with buzzer.
2.Buzzer optional, volume is louder than 85dB.
3.High brightness LED chip, long lifetime and low decay.
4.Double PC cover, milky cover and transparent cove,
makes light soft, and easy to be recognized.
5.Use M12 nut to install, make lamp integrated with equipment.
Specifications
|
Power
|
0.7W for each color and 0.5W for buzzer
|
|
Input voltage
|
DC12V, DC24V
|
|
Current (DC24V)
|
30mA for each color, 20mA for buzzer
|
|
Working Temperature
|
-20~45℃
|
|
IP rating
|
IP43
|
|
Buzzer volume
|
>85dB
|
|
Material
|
PC lens and ABS base
|
|
Lifetime
|
50,000 hours
|
|
Installation
|
M12 nut
|
Ordering Code
|
ONN -
M4
3
C
B
F
T
RYG
30
|
|
|
|
1 2 3 4 5 6 7
|
|
|
|
1.Layer
|
3. Three layers
|
|
|
2. Mounting type
|
C: Pole and plate
|
|
|
3. Voltage
|
A: DC12V B: DC24V
|
|
|
4.Function
|
B: Steady, F: Steady with buzzer, S: Red flash,
C: Red flash with buzzer, D: All flash, E: All flash with buzzer |
|
|
5.Connect type
|
C: contact type, T: PNP& NPN
|
|
|
6. Color
|
R: Red, Y: Yellow, G:Green
|
|
|
7. Diameter
|
30: φ30mm
|
|
Product Size Drawing
Wiring Instruction
Application
CNC machine, Automatic equipment , SMT equipment etc.
