Quick Details
-

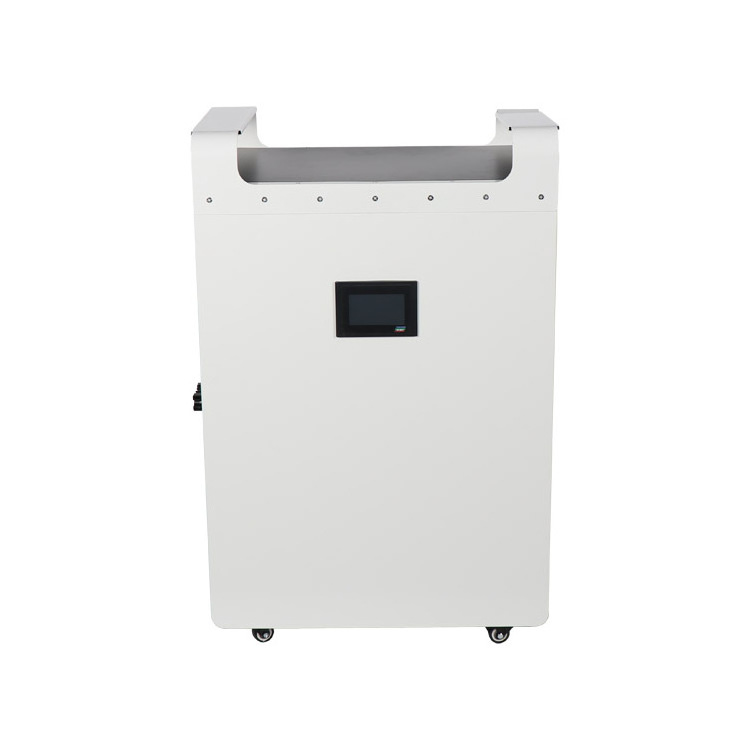

Product name:
-
Lifepo4 Lithium Battery
-
Feature:
-
Bolt in structure
-
Application:
-
Solar/RV/Marine/Golf /EV
-
Keywords:
-
48V 400Ah Lithium battery
-
Size:
-
930*460*465mm
-
Cycle life:
-
>3500 cycles
-
Rated capacity:
-
100Ah
-
Constant charging current:
-
100A
-
Constant discharge current:
-
200A
-
Warranty:
-
3years
Quick Details
-
Model Number:
-
LFP48400-100
-
Brand Name:
-
Center Power
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Lifepo4 Lithium Battery
-
Feature:
-
Bolt in structure
-
Application:
-
Solar/RV/Marine/Golf /EV
-
Keywords:
-
48V 400Ah Lithium battery
-
Size:
-
930*460*465mm
-
Cycle life:
-
>3500 cycles
-
Rated capacity:
-
100Ah
-
Constant charging current:
-
100A
-
Constant discharge current:
-
200A
-
Warranty:
-
3years
Product Paramenters
|
Basic parameter
|
|
|
|
|
||||
|
Nominal Voltage
|
|
48V
|
|
|
||||
|
Ralted Capacity
|
|
400Ah
|
|
|
||||
|
48Energy
|
|
19200Wh
|
|
|
||||
|
Cycle Life
|
|
>3500 cycles
|
|
|
||||
|
Operation Parameter
|
|
|
|
|
||||
|
Max Charge Voltage
|
|
54.75V
|
|
|
||||
|
Discharge
|
|
37.5V
|
|
|
||||
|
Constant charge Current
|
|
100A
|
|
|
||||
|
Discharge Current
|
|
100A
|
|
|
||||
|
Peak discharge current
|
|
200A
|
|
|
||||
|
Working Temperature
|
|
-20~65 (℃)
|
|
|
||||
|
|
|
-4~149(℉）
|
|
|
||||
|
Physical
|
|
|
|
|
||||
|
Dimension
|
|
930*460*465mm
|
|
|
||||
|
|
|
36.6"*18.1"*18.3"
|
|
|
||||
|
|
|
180kg
|
|
|
||||
|
|
|
396.8lb
|
|
|
||||
Products Description
10X Longer servce life
1. Long time OEM cooperation with Germany world first class Automobile company
2. Service life 10+ years 3. 30% Power more
4. 70% Lighter in weight
5. Highest discharge efficiency(more than 99.8%)
2. Service life 10+ years 3. 30% Power more
4. 70% Lighter in weight
5. Highest discharge efficiency(more than 99.8%)
Easy operation
1. Plug and Play(Easy installation)
2. Modular(Can be in Parallel and in series to increase capacity or Voltage)
3. Free Maintenance
2. Modular(Can be in Parallel and in series to increase capacity or Voltage)
3. Free Maintenance
Products Advantages
Cycle life Curve
Safety Tests
Dropping Test
Crush Test
Acupuncture Test
