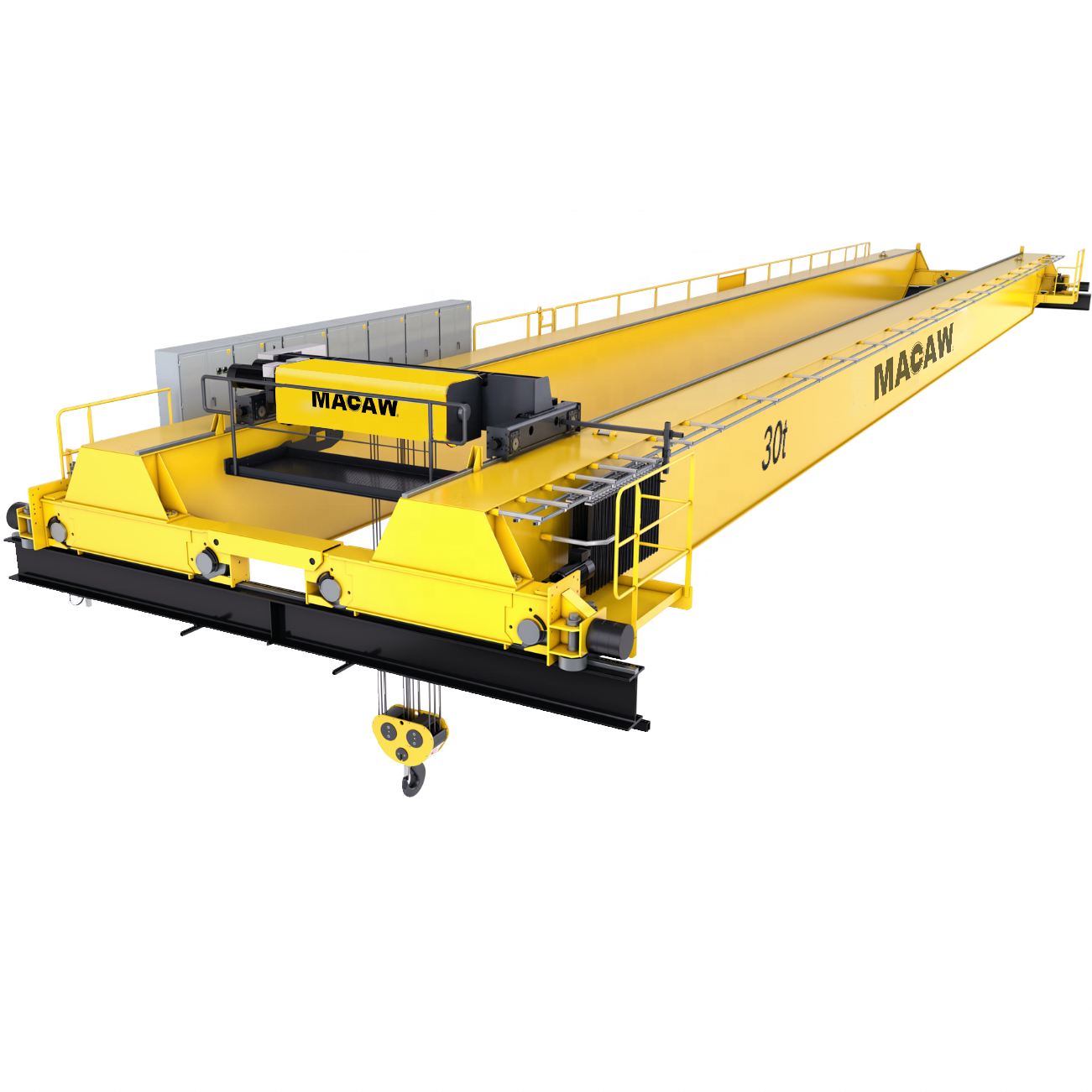

Span 7.5-22.5m europe bridge travelling crane 10 ton Double girder workshop overhead crane for maintenance workshop

Span 7.5-22.5m europe bridge travelling crane 10 ton Double girder workshop overhead crane for maintenance workshop

FOB Reference Price: Get Latest Price

≥1 Sets

US $3500

≥5 Sets

US $3200

≥10 Sets

US $2800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: MACAW

Weight (KG):: 6560 kg

Product Name:: Double Girder Overhead Crane

Model:: LH10t x10.5m(span)-H6m

Lifting speed:: 5/0.8 m/min

Hoisting motor:: 9.5/1.5 kw

Travel speed:: 5-20 m/min

Travel motor:: 2*0.44 kw

Crane traveling speed:: 8-32 m/min

Power Source:: 3 Phase 380V 50hz

Control method:: Pendant control+remote control

Work Duty:: A5

Quick Details

Max. Lifting Height:: 6m

Span:: 10.5m

Place of Origin:: JIANGSU

Brand Name:: MACAW

Weight (KG):: 6560 kg

Product Name:: Double Girder Overhead Crane

Model:: LH10t x10.5m(span)-H6m

Lifting speed:: 5/0.8 m/min

Hoisting motor:: 9.5/1.5 kw

Travel speed:: 5-20 m/min

Travel motor:: 2*0.44 kw

Crane traveling speed:: 8-32 m/min

Power Source:: 3 Phase 380V 50hz

Control method:: Pendant control+remote control

Work Duty:: A5

Products Description

Feature:

1.Light weight structure,excellent performance, advanced design concept, effectively improve space utilization.

2.Made of high quality steel, durable and corrosion resistant.

3.Complete standard configuration, stable running, fast positioning, stable and safe operation.
4.Simple maintenance, low installation & maintenance costs, and long service life.

Crane Control Panel

Electric Hoist

Festoon System

Crane Remote Control

End carriages with driven motor

Crane Limit Switch

Product Application

Technical Parameter

Please contact me for customized parameters

Basic Data
Crane Span (m)	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5	34.5
Crane Weight (t)	4.57	6.52	8.29	10.08	12.36	14.42	17.53	20.62	26.36
Trolley Weight (t)	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2
Max.Wheel Load (KN)	62.9	69	74.5	79.1	84.4	90.1	97.6	105.3	119.6
Min.Wheel Load (KN)	10.3	13.7	16.7	20.6	26.1	30.5	38	45.3	58.9
Crane Wheel Quantity (pcs)	4	4	4	4	4	4	4	4	4
Recommend Crane Rail	P22	P22	P22	P22	P22	P30	P30	P30	P30
Operation Speed (m/min)
Lifting Speed	5:0.8									5:0.8	5:0.8	5:0.8	5:0.8	5:0.8	5:0.8	5:0.8
Trolley Speed	5~20									5~20	5~20	5~20	5~20	5~20	5~20	5~20
Bridge Speed	8~32									8~32	8~32	8~32	8~32	8~32	8~32	8~32
Driven Motor Power (KW)
Lifting Motor	9.5/1.5
Trolley Motor	0.44*2									0.64	0.64	0.64	0.64	0.64	0.64	0.64
Bridge Motor	1.2*2	1.2*2	1.2*2	1.2*2	1.2*2	1.6*2	1.6*2	2.5*2	2.5*2
Crane Power	12.78	12.78	12.78	12.78	12.78	13.58	13.58	15.38	15.38

Note：

Cranes have many kinds of specifications to choose,the data in this table base on 9M top of rail. This is for user and designing institue reference only when selecting cranes type. More detailed data and technical solution,please contact with us.
