PLC:
Imported PLC microcomputer with touch screen interface ，enables bag parameter setting much more convenient and faster
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
400
-
Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GOLDSEN
-
Dimension(L*W*H):
-
L)980*(w)680*(H)1850mm
-
Max roll film width:
-
220mm
-
Bag making length:
-
30-200mm
-
Bag making width:
-
20-100mm
-
Packing speed:
-
50-100bags/min
-
Machine weight:
-
300kg
-
Material:
-
304 stainless steel material
-
Weighing system:
-
measuring cup
-
controller:
-
Computer
-
Working progress:
-
auto feeding weighing packing
-
Certification:
-
CE Certification
Quick Details
-
Function:
-
FILLING, Sealing, Wrapping
-
Packaging Type:
-
Bags, Film, Foil, Pouch
-
Packaging Material:
-
Paper, Plastic, Other
-
Weight (KG):
-
400
-
Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GOLDSEN
-
Dimension(L*W*H):
-
L)980*(w)680*(H)1850mm
-
Max roll film width:
-
220mm
-
Bag making length:
-
30-200mm
-
Bag making width:
-
20-100mm
-
Packing speed:
-
50-100bags/min
-
Machine weight:
-
300kg
-
Material:
-
304 stainless steel material
-
Weighing system:
-
measuring cup
-
controller:
-
Computer
-
Working progress:
-
auto feeding weighing packing
-
Certification:
-
CE Certification
Products Description
Used Small Scale Mini Automatic 5G Refine Granulated Coconut Icing Sugar Paper Pouch Bag Stick Sachet Packaging Machine Price
1.The whole body can also be made of 304 stainless steel according to customer requirements. Strictly made as per CE and SGS
certification demands
2.All machines are equipped with a protective cover to avoid unnecessary damage during use. Compliance with EU safety
certification requirements
3.Optional English or other languages screen display, easy and simple operation.
4.High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.
5.The machine integrate Bag-making, filling, sealing, cutting, counting can be achieved automatically and straightly.
6.Bag length and packing speed is adjustable on the Touch screen, The bag width is adjustable by changing bag mold .
certification demands
2.All machines are equipped with a protective cover to avoid unnecessary damage during use. Compliance with EU safety
certification requirements
3.Optional English or other languages screen display, easy and simple operation.
4.High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.
5.The machine integrate Bag-making, filling, sealing, cutting, counting can be achieved automatically and straightly.
6.Bag length and packing speed is adjustable on the Touch screen, The bag width is adjustable by changing bag mold .
|
Model
|
GD-220K
|
GD-320K
|
GD-420K
|
||
|
Measuring
|
Measuring Cup
|
|
|
||
|

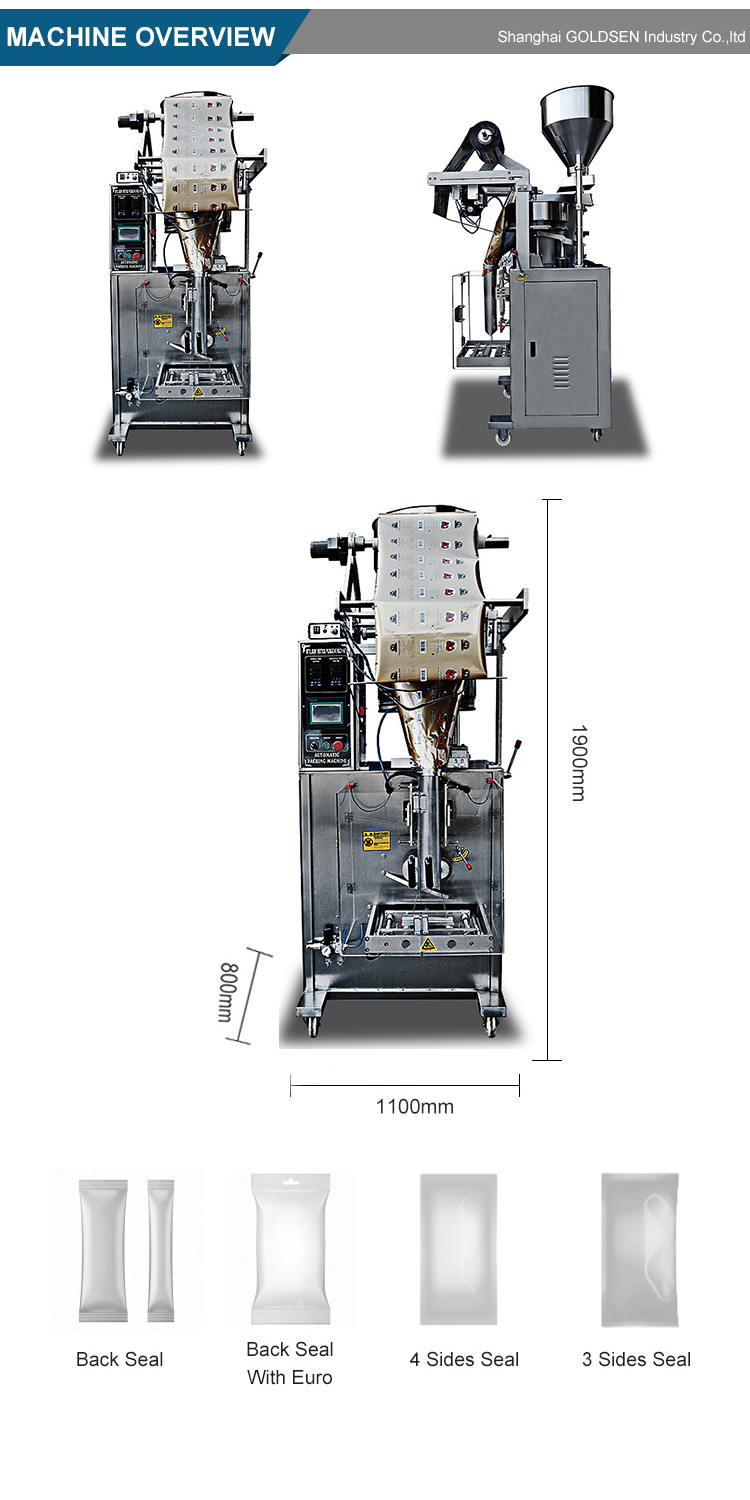

Bag Shape
|
Back Sealing/3 Sides Sealing / 4 Sides Sealing
|
|
|
||
|
Packing Speed
|
30-100bags/min
|
30-80basg/min
|
10-60bags/min
|
||
|
Max Roll Film Width
|
220mm
|
320mm
|
420mm
|
||
|
Bag Length
|
30-150mm
|
40-200mm
|
60-300mm
|
||
|
Bag Width
|
20-100mm
|
30-150mm
|
60-200mm
|
||
|
Machine Dimension(L*W*H)
|
1100*800*1900
|
1150*850*1950mm
|
1180*980*2150mm
|
||
|
Weight
|
300KG
|
350KG
|
400KG
|
||
|
Power
|
220V,50/60HZ,1.2KVA
|
220V,50/60HZ,1.5KVA
|
220V,50/60HZ,2KVA
|
||

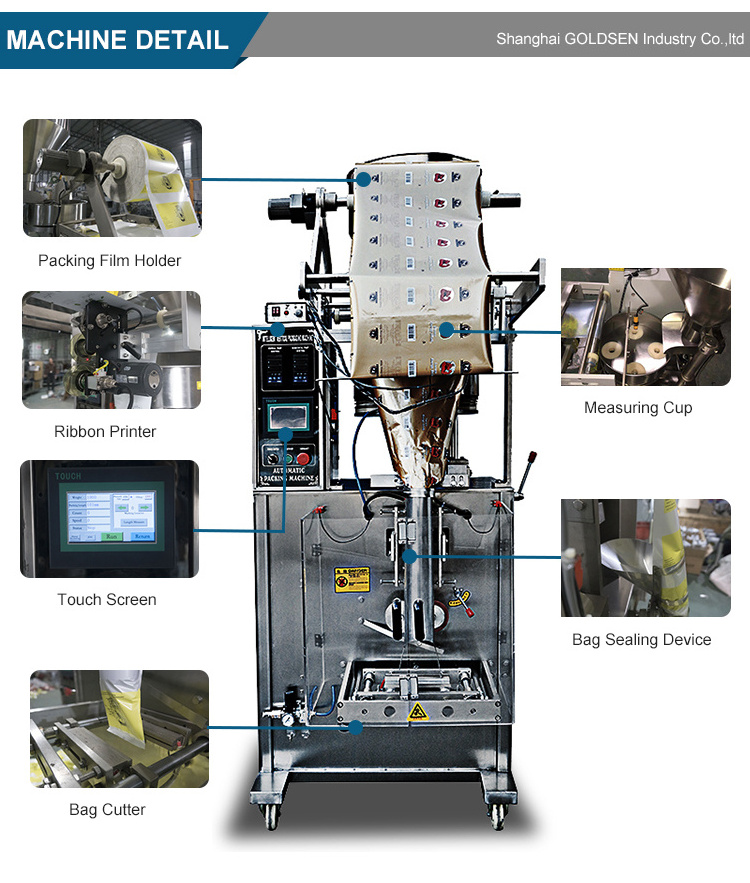

Details Parts of The Main Machine
Language:
Standard English . Any language can be customized.
Film Roller：
The film can be replaced easily on the film roller.
Various films adaptable: OPP/CPP,OPP/BOPP,MST/PE/PET/PE.
ALU-FOIL,
Measuring cup：
#304 stainless steel measurement parts will measure the weight of each bag automatically. The filling weight is adjustable by adjusting & change the measuring cup size
Bag Former (Mold）：
#304 stainless steel bag former is for shaping the film into a bag.
Different bag width need to change different bag former.
High speed of fine and clean cutting and sealing bags.
Positioned stop function avoid sticking blades and wasting packing materials.
According to customer needs,the bag types can be changed：back seal, three sides seal, four side seal.
OPTIONAL DEVICE
Application
GOLDSEN
Granule Packing Machine Is Suitable For Loose Rounded Granules In The Food, Chemical And Other Industrial. Such As: Puffed Granules, Peanuts, Popcorn,Melon Seeds, Rice, Pepper, Sugar,Salt, Biscuits Etc.According To Customer Needs,The Bag Types Can Be Changed:Back Side Seal,Three Side Seal , Four Side Seal .
