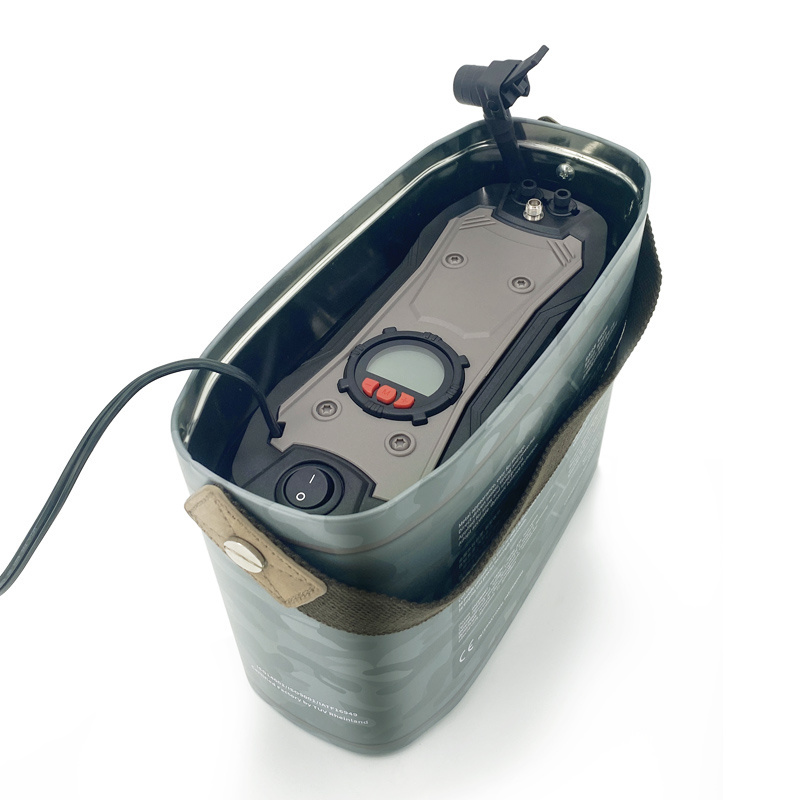

Integrated Portable Storage Box Digital Display Car Air Compressor 12V Pump Automatic Tire Tyre Inflators Bicycle Auto Stop

Integrated Portable Storage Box Digital Display Car Air Compressor 12V Pump Automatic Tire Tyre Inflators Bicycle Auto Stop

FOB Reference Price: Get Latest Price

≥100 Pieces

US $1

≥300 Pieces

US $0.1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Volcano

Model Number:: B120

Warranty:: 1 Years

Function:: Tire Inflator, Case Design, Precise Digital Gauge, 4PIN Plug Connector With Fuse, Integrated Portable Storage Box

Motor:: Drect-drive Motor

Max. Current:: 10 Amps

Operation Duration:: Continuous

Max. Pressure:: 100PSI(6.90BAR)

Pressure Gauge:: Precision Digital

Noise Level:: <=86dB

Power Cord:: 3.35M

Air Hose Length:: 0.6M

175*70*R13 tire inflation rate::: 3Min. 18Sec.(0-36psi)

195*70*R14 Tire Inflation Rate:: 3Min. 45Sec(0-30psi)

Quick Details

Car Fitment:: Universal

Size:: 245*110*176mm

Place of Origin:: Guangdong, China

Brand Name:: Volcano

Model Number:: B120

Warranty:: 1 Years

Function:: Tire Inflator, Case Design, Precise Digital Gauge, 4PIN Plug Connector With Fuse, Integrated Portable Storage Box

Motor:: Drect-drive Motor

Max. Current:: 10 Amps

Operation Duration:: Continuous

Max. Pressure:: 100PSI(6.90BAR)

Pressure Gauge:: Precision Digital

Noise Level:: <=86dB

Power Cord:: 3.35M

Air Hose Length:: 0.6M

175*70*R13 tire inflation rate::: 3Min. 18Sec.(0-36psi)

195*70*R14 Tire Inflation Rate:: 3Min. 45Sec(0-30psi)

Product Description

Feature:

1. Humanized design, metal appearance. 2. Powerful, heavy-duty, gearless, direct-drive motor . 3. The function is stable and reliable, with minimal noise, a small volume, and portability. 4. Adopt accurate dynamic balance technique. 5. Wide range of applications, including sports equipment, hardware, and tires, snow and sand ground.

6. T he motor group is produced by ourselves. (Including motor and die casting parts) .

7. High-precision digital pressure gauge.

Specification

Power Requirement
Voltage	DC 12V
Max. Current	10 Amps

Physical Dimension
Length	245mm
Width	110mm
Height	176mm
Weight	2Kg (4.41lbs)

Pressure & Flow
Max. Pressure	100psi/6.9Bar
Working Pressure	0～50PSI(3.45BAR)
Air Flow Rate	@40PSI(2.76BAR)≧15L/min
Duration	20MIN@30PSI
19570R14 Tire Inflation Rate	3min45sec. (0-30PSI /2.2BAR)
17570R13 Tire Inflation Rate	3Min. 18Sec.(0-36PSI/2.5BAR）
Power cord	3.1M
Air Hose Length	0.6M
