Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
4700x1200x2400mm
-
Machine Weight:
-
2600 kg
-
Bucket capacity:
-
0.5CBM
-
Marketing Type:
-
New Product 2022
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Overall weight:
-
2600kg
-
Rated bucket capacity:
-
0.5m
-
Engine:
-
Changchai ZN390Q
-
Rated power:
-
25Kw (34 HP)
-
Attachments:
-
Different attachments are available
-
Steering system:
-
Articulated hydraulic steering
-
Color:
-
Yellow,Red,White,Blue,Orange
-
Standard tyres:
-
750-16
-
Optional Tyres:
-
10-16.5 / 31X15.5-15 / 33X15.5-16.5
Quick Details
-
Engine Brand:
-
CHANGCHAI ZN390Q
-
Power:
-
25KW
-
Brand Name:
-
Cloud Pillar
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
4700x1200x2400mm
-
Machine Weight:
-
2600 kg
-
Bucket capacity:
-
0.5CBM
-
Marketing Type:
-
New Product 2022
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Overall weight:
-
2600kg
-
Rated bucket capacity:
-
0.5m
-
Engine:
-
Changchai ZN390Q
-
Rated power:
-
25Kw (34 HP)
-
Attachments:
-
Different attachments are available
-
Steering system:
-
Articulated hydraulic steering
-
Color:
-
Yellow,Red,White,Blue,Orange
-
Standard tyres:
-
750-16
-
Optional Tyres:
-
10-16.5 / 31X15.5-15 / 33X15.5-16.5

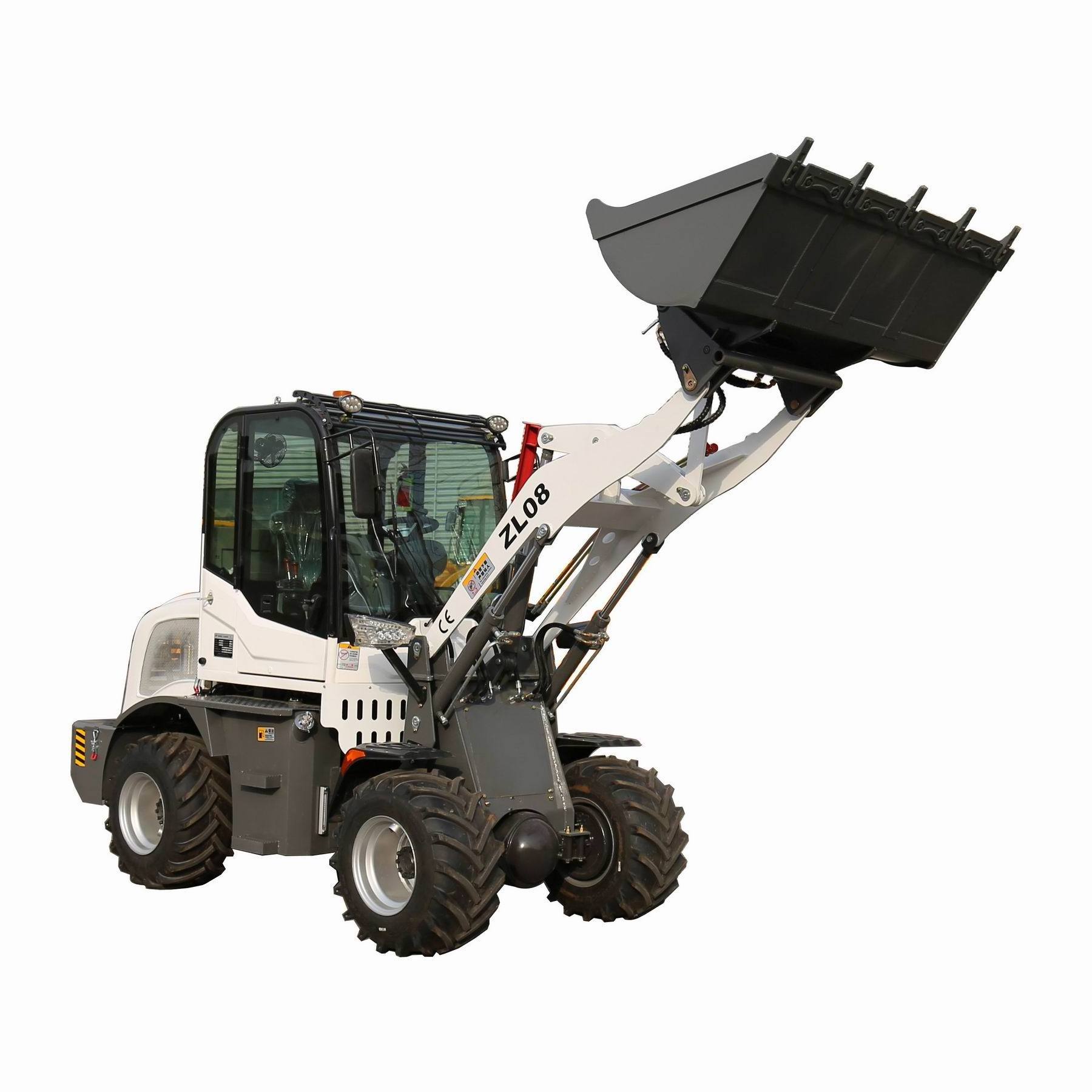

China 0.8ton articulated mini wheel loader
zl08f wheel loader details
ZL08F Operating Specifications
| Specification | Overall weight(kg) | 2600 |
| L×W×H(mm) | 4600×1600×2580mm | |
| Rated bucket capacity(m 3 ) | 0.5 | |
| Rated load(kg) | 800 | |
| dump height (mm) | 2200 | |
| Dump distance | 700mm | |
| Wheelbase | 2100mm | |
| Thread | 1405mm | |
| Total time | 11s | |
| Engine | Model | Changchai ZN390Q |
| Type | direct injection, horizontal, water-cooled, four stroke, Three cylinder | |
| Rated power(KW) | 25 | |
| Rated speed(r/min) | 2400 | |
| Working system | Distribution of work valve | DF15.2C |
| Working pump | CBF32 | |
| Steering system | Type | Articulated hydraulic steering |
| Max. turning angle | 35 0 ±1 | |
| Min turning radius(mm) | 3400 | |
| Tyres | Standard tyres | 750-16 |
Perfomance features
1.ZL08F has a reasonable structure, using innovative designs , obvious security identify and excellent welding procedure.
2. ZL08F structural elements adopts quality steel which can guarantee strength.
3.The matching engine can make ZL08F play its maximum performance and low the oil consumption.
4.The optimum on working device realized automatic bucket postioner and high efficiency because of time saving.
Attachments Available
Packing & Shipping
- 1 set in a 20GP, need to remove cabin,
- 4 sets in a 40HQ,just drive them into the container
- Triangle wood and 10mm wire fixed.
zl08f wheel loader shipping
