China Hot Sell Hobby Fresadora Cnc SP2213A Desktop 3 Axis Cnc Milling Machine Best Price for Promotion

China Hot Sell Hobby Fresadora Cnc SP2213A Desktop 3 Axis Cnc Milling Machine Best Price for Promotion

FOB Reference Price: Get Latest Price

≥1 Sets

US $6000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Range of Spindle Speed(r.p.m):: 100 - 5000

Spindle Taper:: ISO20

Positioning Accuracy (mm):: 0.015

Repeatability (X/Y/Z) (mm):: 0.010

Place of Origin:: Shanghai, China

Brand Name:: Sumore Machinery

Model Number:: SP2213A

Year:: New

Voltage:: Customer Requirement

Weight (KG):: 280

Spindle Motor Power(kW):: 1

Max. Table Load(kg):: 20 kg

Effective worktable size:: 400x145mm

Worktable T-slot size:: 3x12mmx40mm

Maximum loading of worktable:: 20kg

Spindle taper:: ISO20

Spindle speed:: 100-5000rpm

The max speed of moving(X,Y,Z):: 2000mm/min

Position accuracy:: 0.010mm

N.W/G.W:: 280/340kg

Tool number:: 4

Time of tool changing:: 10s

Quick Details

Table Travel (X) (mm):: 260

Table Travel (Y) (mm):: 152

Table Travel (Z) (mm):: 180

Range of Spindle Speed(r.p.m):: 100 - 5000

Spindle Taper:: ISO20

Positioning Accuracy (mm):: 0.015

Repeatability (X/Y/Z) (mm):: 0.010

Place of Origin:: Shanghai, China

Brand Name:: Sumore Machinery

Model Number:: SP2213A

Year:: New

Voltage:: Customer Requirement

Weight (KG):: 280

Spindle Motor Power(kW):: 1

Max. Table Load(kg):: 20 kg

Effective worktable size:: 400x145mm

Worktable T-slot size:: 3x12mmx40mm

Maximum loading of worktable:: 20kg

Spindle taper:: ISO20

Spindle speed:: 100-5000rpm

The max speed of moving(X,Y,Z):: 2000mm/min

Position accuracy:: 0.010mm

N.W/G.W:: 280/340kg

Tool number:: 4

Time of tool changing:: 10s

Looking for excellent machine? Check out our generous range of various metal-working appliations from lathe, cnc lathe, machining center, milling machine, cnc milling machine, drilling machine, band saw, drill press, surface grinder to the spareparts & accessories related from Sumore Machinery

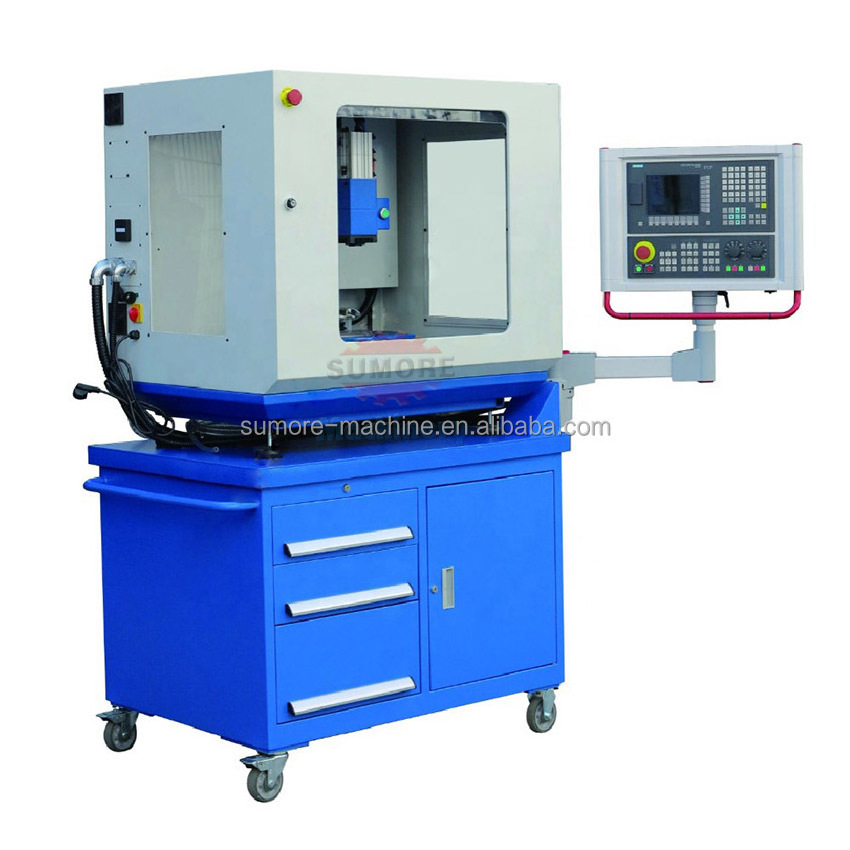

SP2213A desktop mini cnc milling machine for training/education/school SIEMENS cnc mill cnc milling machine

Main features:
Table size : 400x145mm
X-axis travel: 260mm
Spindle taper: ISO20
1000W brushless motor
Standard PC based control system with transparent enclosure
Optional SIEMENS control system with full metal enclosure

Product Description

1.PC based control system or SIEMENS808D.

2.Automatic intermittent lubrication.

3.CNC control system could be adapted by step motor or optional servo motor.

4.The high speed, high precision, high rigidity spindle unit.

5.Full guard .

6.The individual components of the machine can also be customized according to customer specific needs .
7.The high accuracy pitch compensation, the drive shaft adopts high precision laser measuring instrument compensation make each axis positioning accuracy is more accurate, more suitable for processing high precision parts and mold manufacturing.

8.4 tools ATC. Variety of tools for your choice.

9.4th axis for choice.

10.4th driver and socket installed as optional.
11.linear guideway optional.

12.Transparence enclosure is selectable (more suitable for education).

Specification

Specifications		SP2213A
TABLE	Table size	400×145mm
		T slot	3×12×40
		Max. load	20kg
travel	X travel	260mm
		Y travel	152mm
		Z travel	180mm
		Spindle nose to table	60-240mm
		Spindle center to column	200mm
spindle	Spindle taper	ISO20
		Spindle motor	1000w
		Spindle speed	5000r/min
Feed (stepper motor) Servo optional	X.Y.Z fast move speed	2000mm/min
		X.Y.Zfast feeding speed	500mm/min
		X.Y.axis power	1.35N/m
		Z axis pwoer	2.2N/m
Tool changer	Tool number	4
		Tool diameter	10mm
		Max tool length	110mm
		Tool weight	0.5kg
		Tool changing time	10s
accuracy	Positioning accuracy	0.015mm
accuracy		Repeatability accuracy	0.01mm
Others	Pneumatic supply	0.6 Mpa
		Power	230/120V
		Weight（NW/GW）	280/340kg
		Overall dimension/ Packing size	1040×860×940mm/ 1170×960×1100mm

standard
4 tools	quick tool changer
iso20	1000w brushless motor
4th deiver

PRODUCT PICTURES

Hot Products

Packing & Delivery

Package	1 set/polywood case (aluminum strips strengthen)
Minimum Order Quantity (MOQ)	1 sets
Full Container Loading Quantity (FCL)	36-60sets/20’GP (unitary; customerized packing available)
Delivery Time	25 calendar days after receiving of advance / full payment
