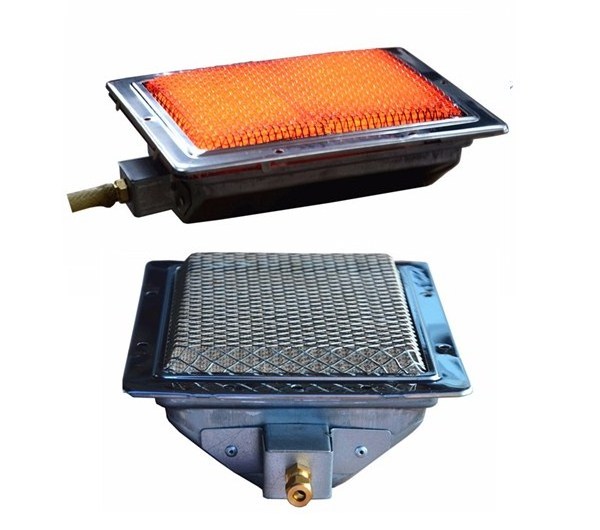

LPG Natural Gas Infrared Catalytic Burner for Shawarma Machine Replacement

LPG Natural Gas Infrared Catalytic Burner for Shawarma Machine Replacement

FOB Reference Price: Get Latest Price

≥2 Pieces

US $20

≥50 Pieces

US $16

≥500 Pieces

US $11

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: THD

Gas Burner:: HD220

Dimension:: 220*170*60 m

Net Weight:: 0.9kg

Working Gas:: Natural gas,LPG,Propane,Butane,Other

NG Consumption:: 0.31 m3/h

LPG Consumption:: 0.22 kg/h

Heat Output:: 2525 Kcal/h

Power:: 2.94 KW

Gas pressure:: 2000 to 5000 Pascal

Quick Details

Type:: Gas Burner

Weight (KG):: 1.7

Place of Origin:: Chongqing, China

Brand Name:: THD

Gas Burner:: HD220

Dimension:: 220*170*60 m

Net Weight:: 0.9kg

Working Gas:: Natural gas,LPG,Propane,Butane,Other

NG Consumption:: 0.31 m3/h

LPG Consumption:: 0.22 kg/h

Heat Output:: 2525 Kcal/h

Power:: 2.94 KW

Gas pressure:: 2000 to 5000 Pascal

Infrared Technology Feature.

Chongqing HaoDong Technology Co., Ltd, is only one in China and one of few companies worldwide who can actually manufacture catalytic emitter. It's called Infrared Catalytic technique, different from infrared ceramic heater or infrared heater.This product is made for barbecue oven, grill,chicken gas roaster, shawarma/ doner/kebab/gyros machine,bread oven,cake bakery equipment,cheese baking machine.

SN	Items	Technical Parameters
1	Kinds of Gas	NG/LPG/Oil Field Gas/Artificial Gas
2	Perfect Combustion Temperature	≤380℃
3	Heat Source Temperature	850℃
4	Heating-up Temperature Range	35℃-500℃
5	Wavelength Range	4 um -15 um
6	Working Pressure	2000pa(NG)~~5000pa 2800pa(LPG)~~5000pa
7	Lifetime	Above 11000hrs
8	Waste Gas Emission	CO≤80ppm;NOx≤10ppm;CHx≤50ppm
9	Conversion Rate	> 90%

Product Description

Gas BBQ Grill Series Infrared Burner Main Specification:

Model	Dimension	N.W.	Heat Output			Gas Consumption			Gas Resource
	mm	kg	BTU/h	Kcal/hr	NG(m³/h)	LPG(kg/h)	^KW		Gas Resource
HD220	*22017060*	0.9	10000	2520	0.31	0.22	^{Natrual Gas,LPG, Propane, Butane}
HD400	4008060	0.7	9030	2300	0.28	0.20		^2.72
HD538	5388565	1.4	13500	3400	0.42	0.29		^3.9
HD668	6688565	1.7	16600	4180	0.51	0.36		^4.8
HD10	1706560	0.42	7500	1600	0.17	0.12		^2.1
HD20	3006560	0.59	9400	1800	0.20	0.15		^2.7
HD30	3406560	0.7	9500	2500	0.29	0.2		^2.8

Related Product：

Our Advantages

1. Easy being fixed.
2. Energy savings can be up to 20% per year
3. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
4. No need for a long and expensive preheating, it will reach comfort temperature very quickly.
5. Long useful time: ≥11000hr
6. Easy to clean
7. It can cut off the gas automatically and protect the burner when the flameout.
8. Silent, light and compact
9. High efficiency: it can come to working condition in 8 seconds.

Application

This kind burner now are Mainly used for barbecue oven , grill, chicken gas roaster , shawarma/ donner/kebab/gyros machine, bread oven,cake bakery equipment, cheese baking machine…
and can be installed at all directions, but at bottom with a heat resistance glass cover is best.

For More Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Company Introduction

Chongqing Haodong Technology Co., Ltd which is found in 2005, is a professional manufacturer of Infrared Catalytic Gas Burner,BBQ Grill Gas Burner, Poultry heater, Gas brooder and Patio Heater etc.
Unique Rare-earth Catalyst Technology has gotten Patent certificate, it makes our burner to save 15~25% gas energy than non-catalytic type.Located in Chongqing City, southwest of China.
We owns advanced assembly lines, computer controlled injection machines, various high precision test equipment, sterilizing equipment and laboratory facilities. Professional engineers and technicians are employed could meet customer's new requirements demand.
