Products
Steady lighting Helideck/Helipad airport Perimeter Inset led runway light for Aviation Obstruction Lights
Steady lighting Helideck/Helipad airport Perimeter Inset led runway light for Aviation Obstruction Lights

Steady lighting Helideck/Helipad airport Perimeter Inset led runway light for Aviation Obstruction Lights

FOB Reference Price: Get Latest Price
≥1 Pieces
US $2000
≥50 Pieces
US $1000
≥5000 Pieces
US $100
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Lamp Body Material:
Aluminum Alloy
Light Source:
LED
Input Voltage(V):
110-260
Lamp Luminous Flux(lm):
840
CRI (Ra):
80
Beam Angle(°):
180
Place of Origin:
Guangdong, China
Brand Name:
Guangan
Luminous Efficacy(lm/w):
100
lifespan:
more than 20 years
size:
194mm(D)*138mm(H)
Operating Voltage:
AC220V
Installation Size:
D199mm*145mm
Weight:
4.5Kg
Ambient Temperature:
-20-60 degree
Protection Standard:
IP67
sample:
available
keywords:
perimeter runway light

Quick Details

Warranty(Year):
2-Year
Lamp Power(W):
8
Color Temperature(CCT):
COOL WHITE
Lamp Body Material:
Aluminum Alloy
Light Source:
LED
Input Voltage(V):
110-260
Lamp Luminous Flux(lm):
840
CRI (Ra):
80
Beam Angle(°):
180
Place of Origin:
Guangdong, China
Brand Name:
Guangan
Luminous Efficacy(lm/w):
100
lifespan:
more than 20 years
size:
194mm(D)*138mm(H)
Operating Voltage:
AC220V
Installation Size:
D199mm*145mm
Weight:
4.5Kg
Ambient Temperature:
-20-60 degree
Protection Standard:
IP67
sample:
available
keywords:
perimeter runway light

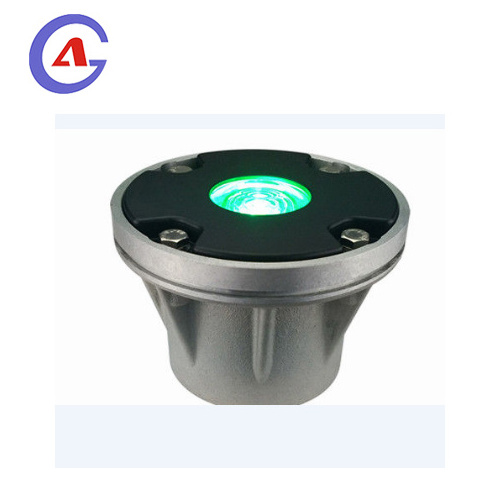

Welcome to know our airport perimeter runway light

Features:

1) Stainless steel construction better resists salt, chemicals, and weather exposure
2) Nitric acid passivated to maximize the essential corrosion resistance
3) Recessed mounted, allows for obstruction-free movement of equipment and personnel.
4) Fixture sealed to the bottom cover to prevent moisture intrusion
5) Prism removal and replacement achieved without need for adhesives or sealants
6) Cost-saving, energy-efficient LEDs.
7) Low maintenance - LED light source has 50,000 hour lifetime
8) Monochromatic output of LEDs is more conspicuous than halogen
9) Available for non-heliport applications such as architectural lighting
10) Available for dimmable type

General information:

Name
LED runway light
Standard
ICAO
Light Intensity
55CD
Working Mode
Steady-Burning
Light Source
LED
Service Life Of LED
≥100,000 Hours
Operating Voltage
AC220V (Optional: DC48V, AC110V, AC120V)
Power Consumption
10W
Overall Size
194mm(D)×140mm(H)
Installation Size
199mm×145mm
Material
Base: Die-casting Aluminum
Weight
4.5Kg
Emitting Color
Green, Yellow
Ambient Temperature
-20℃~60℃
Wind Load
80m/s
Protection Standard
IP67

Dimension:
