Quick Details
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
C612
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
Intel Xeon E5 LGA2011-3
-
Product Name:
-
Xeon E5 LGA2011-3 Motherboard
-
Keywords:
-
SATA M-SATA 6 PCI-E M.2
-
Warranty:
-
12 Months
-
Ethernet:
-
1 Realtek Gigabit lan
-
Dimension:
-
330mm x 370mm
-
Certificates:
-
CE/Rohs
-
RAM:
-
Max.256GB
-
SATA/M-SATA:
-
2*SATA 6Gb/s + 1*M-SATA 6Gb/s
-
USB:
-
2*USB3.0+2*USB2.0
Quick Details
-
Maximum Ram Capacity:
-
256GB
-
Application:
-
Server/Workstation
-
Form Factor:
-
ATX
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
C612
-
Brand Name:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
Intel Xeon E5 LGA2011-3
-
Product Name:
-
Xeon E5 LGA2011-3 Motherboard
-
Keywords:
-
SATA M-SATA 6 PCI-E M.2
-
Warranty:
-
12 Months
-
Ethernet:
-
1 Realtek Gigabit lan
-
Dimension:
-
330mm x 370mm
-
Certificates:
-
CE/Rohs
-
RAM:
-
Max.256GB
-
SATA/M-SATA:
-
2*SATA 6Gb/s + 1*M-SATA 6Gb/s
-
USB:
-
2*USB3.0+2*USB2.0

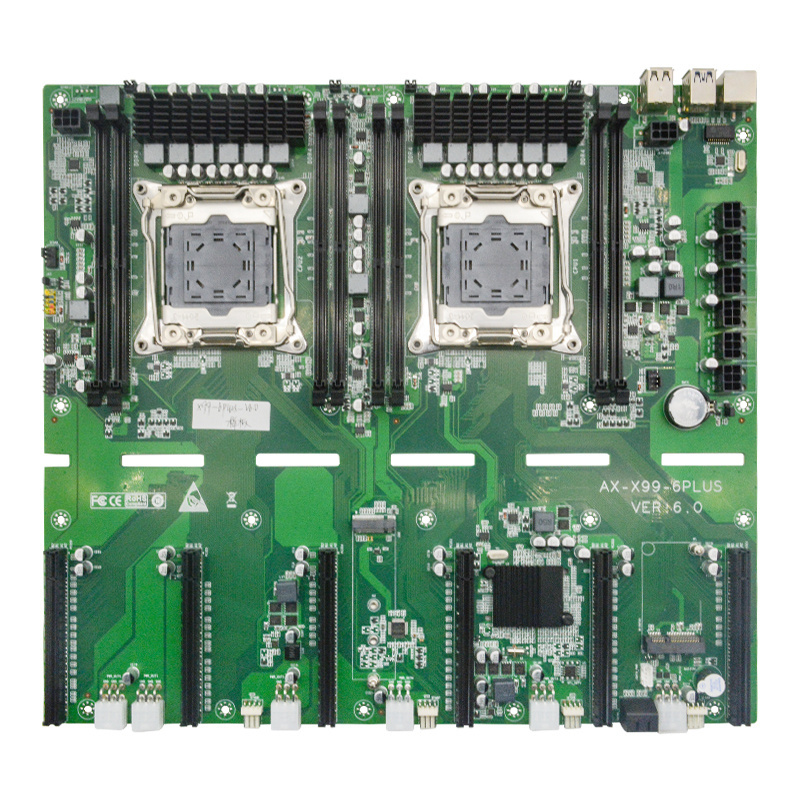

High Quality Dual Xeon E5 LGA2011-3 Single LAN 8 DDR4 SATA M-SATA 6 PCI-E M.2 Computer Motherboard for Workstation
▲Support Dual Xeon E5 LGA2011-3 pin series processor
▲Support 2 SATA interfaces (6Gb/s)
▲Support 1 M.2 interface (M.2 NVME/M.2 NGFF)
▲Support high-speed DDR4 Four-channel memory slot: support DDR4 2133/2400/2666MHz, maximum capacity 256GB
▲Support 2 USB3.0, 4 USB2.0
▲Support 6 PCI-E interfaces (pitch: 70MM)
▲Support Realtek Gigabit network card
▲Support 6+6 phase power supply
▲Support Win10 32/64-bit operating system, Linux system
|
CPU
|
Dual Intel Xeon E5 LGA2011-3 pin series processor
|
|
|
|
South Bridge
|
C612 Chipset series
|
|
|
|
RAM
|
DDR type
|
DDR4
|
|
|
|
Technical/memory standards
|
Four-channel DDR4 2133/2400/2666MHz
|
|
|
|
Maximum capacity
|
256GB（32GB*8）
|
|
|
|
Memory slots
|
8 * 288-Pin DDR4 memory slots
|
|
|
Rear I/O
|
USB
|
2*USB3.0；2*USB2.0
|
|
|
|
Ethernet
|
1 Realtek Gigabit network card
|
|
|
Internal connector
|
FAN
|
2 x CPU_FAN + 4 x 1*4Pin horizontal graphics fan holders
|
|
|
|
JLPC
|
1 standard 2x5Pin modulated interface
|
|
|
|
SATA/M-SATA
|
2*SATA 6Gb/s + 1*M-SATA 6Gb/s
|
|
|
|
USB 2.0
|
2 (One FUSB can transfer out two USB 2.0 interfaces)
|
|
|
|
PCI-E
|
6 （4*PCI-E x16 3.0 + 2*PCI-E x8 3.0）pitch：70MM
|
|
|
|
M.2
|
1*M.2(M.2 NGFF)port
|
|
|
|
JSATA-PWR
|
1 x 1x4Pin SATA power outlet
|
|
|
|
GPU-POWER
|
6 x 2*3Pin PWR-IN power outlets, 6 x 2*3Pin PWR-OUT power outlets, 2 x CPU 2x3Pin PWR IN power sockets
|
|
|
Dimension
|
Size
|
330mm x 370mm
|
|
