*High Safety and Reliable with LiFePO4
*Elegant design, Small size, Light weight
*Module design to easy install and expand capacity
*Elegant design, Small size, Light weight
*Module design to easy install and expand capacity
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
100 kwh battery
-
Cycle Life:
-
6000 Times at 80% DOD
-
Material:
-
Lithium Iron Phosphate Battery
-
Color:
-
White
-
Battery cell:
-
3.2V LifePO4 Cell
-
Application::
-
Self Consumption/ESS/BESS/UPS/Solar, Wind, UPS
-
Certification::
-
CE/RoHS/UN38.3/MSDS
-
OEM/ODM::
-
Acceptable
-
Package::
-
Carton or Wooden Box
-
Warranty:
-
10Years
Quick Details
-
Model Number:
-
HV Rack Type LiFePO4 Battery System
-
Brand Name:
-
Greensun or OEM
-
Place of Origin:
-
Anhui, China
-
Product name:
-
100 kwh battery
-
Cycle Life:
-
6000 Times at 80% DOD
-
Material:
-
Lithium Iron Phosphate Battery
-
Color:
-
White
-
Battery cell:
-
3.2V LifePO4 Cell
-
Application::
-
Self Consumption/ESS/BESS/UPS/Solar, Wind, UPS
-
Certification::
-
CE/RoHS/UN38.3/MSDS
-
OEM/ODM::
-
Acceptable
-
Package::
-
Carton or Wooden Box
-
Warranty:
-
10Years
Product Details

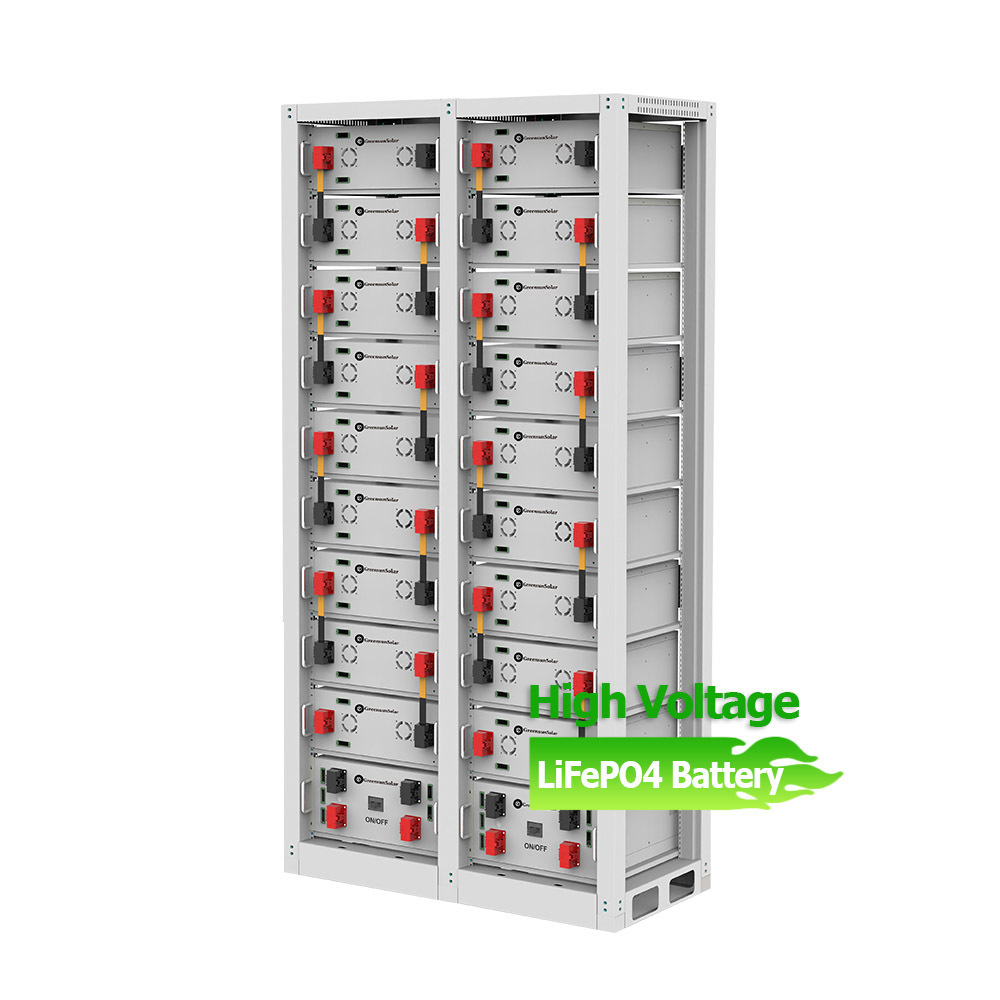

High Voltage LiFePO4 Battery System with Rack
1. Capacity can be customized
2. Energy Range 10Kwh-1000KWH
3. Best solution for Backup/ESS/BESS/Telecom/Hospital/Scool/UPS/EPS and so on.
Specification
|
HV Lithium Battery System
|
HV Lithium Battery System
|
|
|
|
|
|
|
|||||||
|
Nominal Voltage
|
409.6V
|
614.4V
|
512V
|
|
716.8V
|
716.8V
|
716.8V
|
|||||||
|
Nominal Capacity
|
280Ah
|
280AH
|
560Ah
|
|
560Ah
|
840Ah
|
1400AH
|
|||||||
|
Nominal Energy
|
114.6KWH
|
172KWH
|
286.72KWH
|
|
401.4KWH
|
602KWH
|
1003.52KWH
|
|||||||
|
Max. Charging/Discharge Current (A)
|
280A/280A
|
280A/280A
|
280A/560A
|
|
280A/560A
|
280A/560A
|
280A/560A
|
|||||||
|
communication
|
CAN/RS485/RS232
|
CAN/RS485/RS232
|
CAN/RS485/RS232
|
|
CAN/RS485/RS232
|
CAN/RS485/RS232
|
CAN/RS485/RS232
|
|||||||
|
BMS Parameter
|
SOC, System voltage, current, cell voltage, cell temperature, PCBA temperature measurement
|
|
|
|
|
|
|
|||||||
|
Operating Temperature Range
|
-10℃~+50℃
|
|
|
|
|
|
|
|||||||
|
Transport or Storage Temperate Range
|
-20℃~+45℃
|
|
|
|
|
|
|
|||||||
Battery Module
*51.2V 100AH, 51.2V 280AH, 25.6V 200AH;
High Voltage Control Box
*High Voltage: 0-1000VDC*Communication: RS485/CAN
*Protection class: IP20
*Power switch
*Protection class: IP20
*Power switch
High Voltage Battery System
*High Voltage: 96-1000VDC
*Flexible expansion for different needs
*High Safety LFP&Smart BMS
*Easy installation
*Indoor and Outdoor solution optional
*Wide Application for Residential and Commercial
*Container BESS is available
*Flexible expansion for different needs
*High Safety LFP&Smart BMS
*Easy installation
*Indoor and Outdoor solution optional
*Wide Application for Residential and Commercial
*Container BESS is available
Factory & Production
Packing & Delivery
|
By Express
|
TNT, UPS, DHL, FEDEX , Door to Door Service
|
|
|
||
|
By Air
|
Any Cargo Airport in China
|
|
|
||
|
By Sea
|
Any available in China, such as Shanghai and Ningbo
|
|
|
||
