Quick Details
-
Brand Name:
-
sinolion
-
Voltage:
-
220V 380V 450V 600V
-
Power:
-
5.5-37kw
-
Dimension(L*W*H):
-
Acoording to coal briquette mesh belt dryer model
-
Key Selling Points:
-
High efficiency
-
Weight (KG):
-
1620
-
Product name:
-
briquette dryer industrial drying oven with 4 layers 6 layers platform
-
Key words:
-
briquette dryer industrial drying oven
-
Material:
-
stainless steel, carbon steel, wire mesh, steel plate, chain plate
-
length of dryer:
-
8m-36m
-
Dryer parts:
-
head, tail, middle section, motor, reducer, temperature controller
-
After sales service provided:
-
Engineers available to service machinery overseas
-
Dry material shape:
-
Block, briquette, pellet, stick, bar, pieces.
-
Function:
-
Dry and reduce raw material moisture
-
Color:
-
As you required
Quick Details
-
Type:
-
Drying Oven
-
Application:
-
machinery industry, Dry coal charcoal coke carbon black iron fluorite
-
Place of Origin:
-
China
-
Brand Name:
-
sinolion
-
Voltage:
-
220V 380V 450V 600V
-
Power:
-
5.5-37kw
-
Dimension(L*W*H):
-
Acoording to coal briquette mesh belt dryer model
-
Key Selling Points:
-
High efficiency
-
Weight (KG):
-
1620
-
Product name:
-
briquette dryer industrial drying oven with 4 layers 6 layers platform
-
Key words:
-
briquette dryer industrial drying oven
-
Material:
-
stainless steel, carbon steel, wire mesh, steel plate, chain plate
-
length of dryer:
-
8m-36m
-
Dryer parts:
-
head, tail, middle section, motor, reducer, temperature controller
-
After sales service provided:
-
Engineers available to service machinery overseas
-
Dry material shape:
-
Block, briquette, pellet, stick, bar, pieces.
-
Function:
-
Dry and reduce raw material moisture
-
Color:
-
As you required

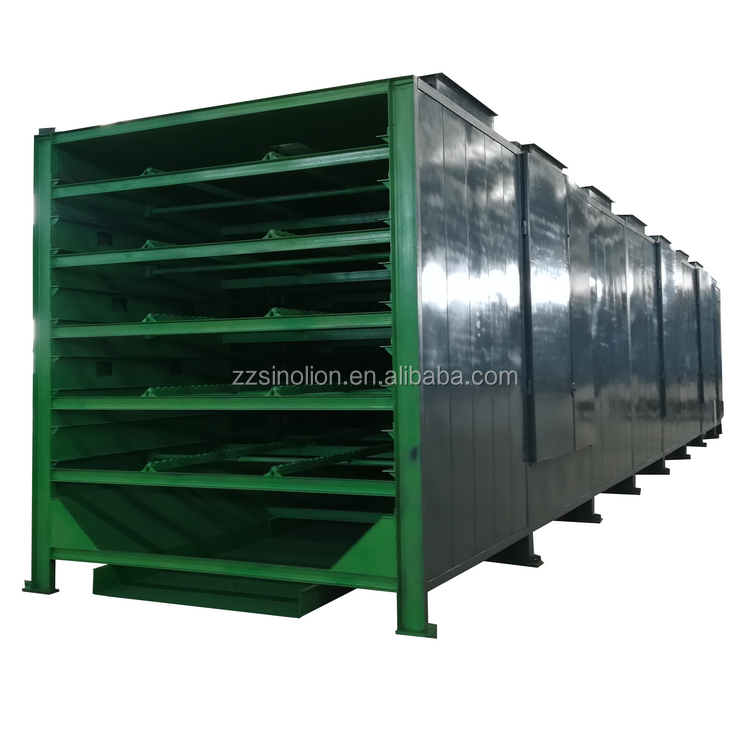

Pillow Oval Shape Charcoal Briquette Dryer Industrial Drying Oven
Briquette dryer industrial drying oven
Working principle of
coal conveyor Mesh Belt Dryer
The main principle of coal conveyor Mesh Belt Dryer is to evenly spread the material on the mesh belt, and drag it by the transmission device to move back and forth in the dryer. The hot air flows through the material, and the water vapor is discharged from the drainage hole, finallyreach to the purpose of drying. The mesh belt dryer adopts 1.5-3mmsteel wire, and the length is equipped based on specified capicity.According to working site space, choose different layers to dry material.
The features of
coal conveyor Mesh Belt Dryer
1. Small space to take.
2. Low investment.
3. High efficiency.
4. Large output and high evaporation strength
5. Standardized production, the number of segments can be increased according to output and work shop.
Main technical parameter of coal conveyor Mesh Belt Dryer
|
Model
|
WD1.2-8
|
WD1.2-10
|
WD1.6-8
|
WD1.6-10
|
WD2-8
|
WD2-10
|
WD2-20
|
||||||
|
Quantity of unit
|
4
|
5
|
4
|
5
|
4
|
5
|
10
|
||||||
|
Width of belt(m)
|
1.2
|
|
1.6
|
|
2.0
|
|
|
||||||
|
Length of dry section(m)
|
8
|
10
|
8
|
10
|
8
|
10
|
20
|
||||||
|
Thickness of raw material(mm)
|
10-80
|
|
|
|
|
|
|
||||||
|
Operation temperature(oC)
|
5-140
|
|
|
|
|
|
|
||||||
|
Steam pressure(MPa)
|
0.2-0.8
|
|
|
|
|
|
|
||||||
|
Steam consumption (kg/h)
|
120-300
|
150-375
|
150-400
|
180-500
|
180-500
|
225-600
|
450-1200
|
||||||
|
Drying time (h)
|
0.2-1.2
|
1.25-1.5
|
0.2-1.2
|
0.25-1.5
|
0.2-1.2
|
0.25-1.5
|
0.5-3
|
||||||
|
Drying capacity(kg water/h)
|
60-160
|
80-200
|
85-220
|
100-260
|
100-260
|
120-300
|
240-600
|
||||||
|
Total power (kw)
|
11.4
|
13.6
|
14.6
|
18.7
|
19.7
|
24.5
|
51
|
||||||
|
Weight (kg)
|
4500
|
5600
|
5300
|
6400
|
6200
|
7500
|
14000
|
||||||
1. What kind of material can be dried by mesh belt dryer?
Answer: Nearly all kinds of lump and chips material can be dried by our mesh belt dryer such as wood chips, leaves, coal briquettes, charcoal briquettes, iron pellets, etc.
2. What kind of fuel can be used with the mesh belt dryer?
Answer: Diesel, natural gas, coal, wood chips and other kind of fuel are OK.
3. What's the drying temperature of the mesh belt dryer?
Answer:Drying temperature of the mesh belt dryer is adjustable. It varies from 70 to 350 °C.
4. How long will the briquettes stay in the mesh belt dryer?
Answer:Normally the drying time will be about 50-120 minutes.
5. Is the belt speed adjustable?
Answer: Yes, the belt speed is adjustable to make sure it can dry material with differnt moisture.
