Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Product name:
-

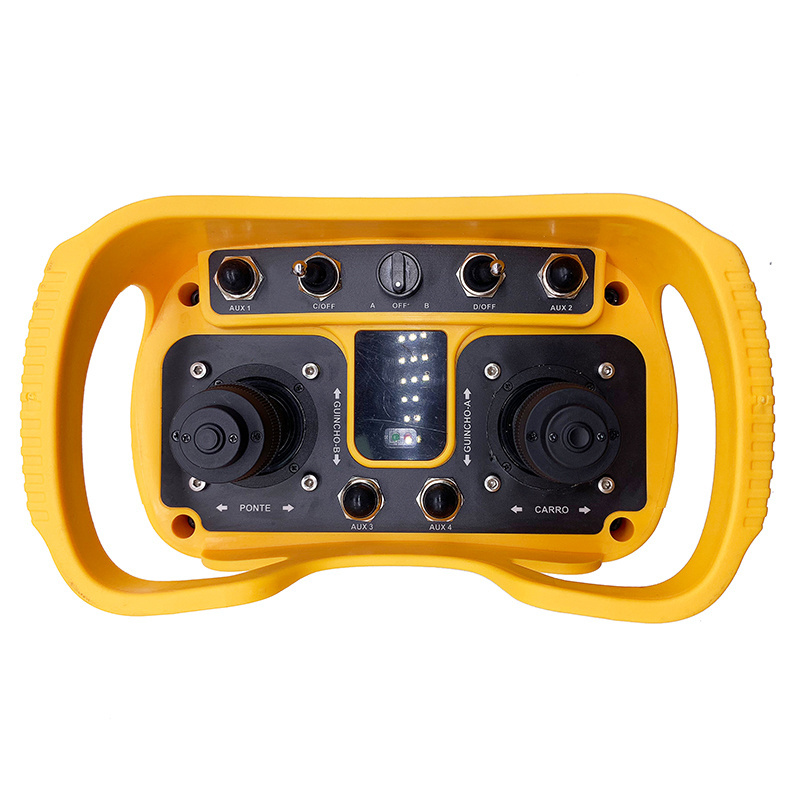

Joystick industrial remote
-
Category:
-
Transmitter (handheld)
-
Protection level:
-
IP65
-
Frequency:
-
433/480(MHZ)
-
Shell material:
-
PA6(30%GF)
-
Frequency control:
-
PLL
-
Control distance:
-
100m
-
Certification:
-
FCC CE
-
Package:
-
Nice Standard Expert Packing
Quick Details
-
Function:
-
Waterproof, Automatic
-
Brand Name:
-
LCC
-
Model Number:
-
Q9800
-
Place of Origin:
-
Jiangsu, China
-
Product name:
-
Joystick industrial remote
-
Category:
-
Transmitter (handheld)
-
Protection level:
-
IP65
-
Frequency:
-
433/480(MHZ)
-
Shell material:
-
PA6(30%GF)
-
Frequency control:
-
PLL
-
Control distance:
-
100m
-
Certification:
-
FCC CE
-
Package:
-
Nice Standard Expert Packing
| TECHNICAL PARAMETERS OF BUTTON Q SERIES | |||||||||||||
| Type | Q200 | Q202 | Q400 | Q404 | Q600 | Q602 | Q606 | Q800 | Q808 | Q1000 | Q1010 | Q1200 | Q1212 |
|
Transmitter
Function |
2 single
-speed buttons |
2 double
-speed buttons |
4 single
-speed buttons |
4 double
-speed buttons |
6 single
-speed buttons |
2 double
4 single
|
6 double
-speed buttons |
8 single
-speed buttons |
8 double
-speed buttons |
10 single
-speed buttons |
10 double
-speed buttons |
12 single
-speed buttons |
12 double
-speed buttons |
|
Transmitter
Dimensions |
14.5x7.5x3.8cm | 19x7.2x3.9cm | 23.9x7.2x3.9cm | ||||||||||
|
Transmitter
Weight |
240g | 300g | 360g | ||||||||||
|
Transmitter
Antenna |
Inside | ||||||||||||
|
Receiver
Antenna |
Inside / optional external antenna | ||||||||||||
|
Start |
Press the start button | ||||||||||||
|
Emergency |
Mushroom conforms to EN3849-1 standard | ||||||||||||
|
Housing |
Reinforced nylon plastic | ||||||||||||
|
IP class |
IP65 | ||||||||||||
|
Distance |
≥ 100 meters / can be customized 300 meters / 500 meters | ||||||||||||
|
Frequency |
433/480MHZ | ||||||||||||
|
Temperature |
-35°C— +75°C | ||||||||||||
|
Button life |
≥2,000,000 times | ||||||||||||
| Power supply | 2 pieces battery (1.5V) | ||||||||||||
|
Continuous
working time |
400 hours (at room temperature) | ||||||||||||
|
Automatic
shutdown |
no shutdown / software can be set for 15 minutes, 30 minutes | ||||||||||||
|
Button Text |
Arrow/English/Chinese/Others | ||||||||||||
|
Receiver
Output |
Relay 5A@250v | ||||||||||||
|
Receiver
Voltage |
AC/DC 24-48V , AC/DC 110-480V | ||||||||||||
Product parameters:
| Channel | 315MHZ(80group) |
| Channel interval | 25KHz |
| Effective operating range | Microcomputer processor |
| Hamming code | >100m |
| Frequency control | >4 |
| Receiver sensitivity | Phase lock loop |
| Antenna matching impedance | -116dBm |
| Reaction time | 50ohms |
| Transmission power | 50mS |
| Waterproof standard | 1.0mW |
| Output contact | Ip66 |
| Transmitter voltage | 250V@5Amps |
| Receiver power consumption | 7.4V |
| Receiver supply voltage | 7-20VA |
| Charger power consumption | AC/DC24-48V 110~460V@50/60Hz |
| Charger supply voltage | 0.3-5VA |
| Operating temperature | AC100~240V@50~60Hz -250C~75t |
| Transmitter size | 247mm(long)x145mm(wide)x180mm(high) |
| Receiver size | 345mm(long)x260mm(wide)x100mm(high)1.48kg(Contain the battery) |
| Transmitter weight | 2.42kg |
Our service.
1.
Any queries will be answered within 24 hours.
2.
Professional manufacturer, strong R & D team support.
3.
OEM / ODM available, we can customize according to customer requirements.
4.
Due to transportation restrictions, the battery is not in the package. you should buy your own AA battery.
5.
We are a factory from China. please don't worry about the quality and service of our products.
6.
If you have any questions about products and logistics, you can email us and we will reply as soon as possible.
7.
After-sales service:
1) all products are subject to strict factory quality inspection before packaging.
2) all the products have been packed in our factory, and the second package is delivered by express delivery before shipment.
3) if there are any problems during operation or installation, please contact us freely and we will solve them with professional guidance.
8.
Thank you for your trust and cooperation!
