Quick Details
-
Item:
-
Hour Meter SYS
-
Operating voltage:
-
12-36VDC 30-60VDC 220VAC
-
Frequency:
-
50/60Hz
-
Front Plate Size:
-
54*32mm
-
Intergrate Part Size:
-
37*24mm
-
Net Weight:
-
50g
-
Color:
-
Black
-
Certificate:
-
CE ROHS
-
Opersting temperature:
-
-10~50℃
-
Time range:
-
0~9,999.99 hours
Quick Details
-
Brand Name:
-
ALION
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
SYS
-
Item:
-
Hour Meter SYS
-
Operating voltage:
-
12-36VDC 30-60VDC 220VAC
-
Frequency:
-
50/60Hz
-
Front Plate Size:
-
54*32mm
-
Intergrate Part Size:
-
37*24mm
-
Net Weight:
-
50g
-
Color:
-
Black
-
Certificate:
-
CE ROHS
-
Opersting temperature:
-
-10~50℃
-
Time range:
-
0~9,999.99 hours

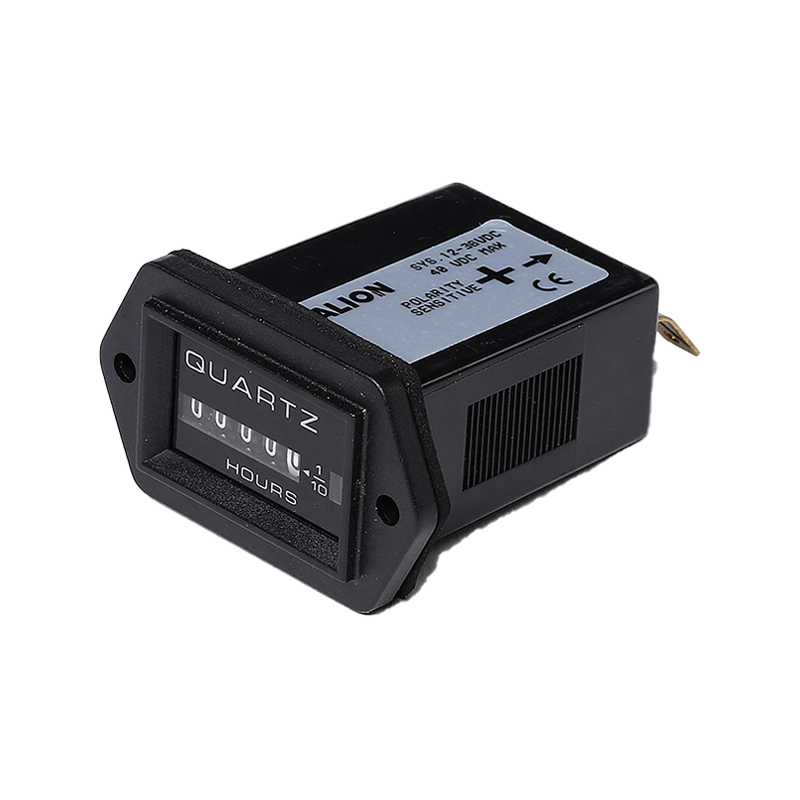

SYS Black Mechanical Hour Counter, Hour Meter Digital Width 12-36VDC 30-60VDC 220VAC
Focus On Time Control For 24 Years
The SYS hour meter is suitable recording time for mechanical equipment.The time setting range from 0 to 9,999.99Hours
Description:
- hour counter with Quartz controlled
- Progress display
- Installall type: Front panel mounting
- Front plate size:54×32mm Diamond
- Intergrate part size: 37×24mm
Technical Data
| Product Type | SYS |
| Operating voltage | 12-36VDC 30-60VDC 220VAC |
| Frequency | 50Hz/60Hz |
| Time range | 0~~9,999.99 hours |
| Opersting temperature | -10~50°C |
Connection Example:
Scale Drawings:
