Quick Details
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
AC 100-277V
-
Lamp Luminous Flux(lm):
-
2500-2700
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-35 - 55
-
Product Name:
-
Led Linear Strip Magnetic
-
Delvered Lumens:
-
2500Lm
-
Lumens Efficiency:
-
125-130Lm/w
-
Dimming:
-
1-10v
-
Power factor:
-
>0.98
-
Driver:
-
UL Class II
-
Humidity:
-
Dry and Damp Location
-
Optional cord:
-
quick connect wire/regular wire
-
Certification:
-
ETL
-
OPERATINNG TEMP:
-
-35℃ to +55℃
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
WL-RTST2340
-
Color Temperature(CCT):
-
4000K,4500K,5000K
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
AC 100-277V
-
Lamp Luminous Flux(lm):
-
2500-2700
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-35 - 55
-
Product Name:
-
Led Linear Strip Magnetic
-
Delvered Lumens:
-
2500Lm
-
Lumens Efficiency:
-
125-130Lm/w
-
Dimming:
-
1-10v
-
Power factor:
-
>0.98
-
Driver:
-
UL Class II
-
Humidity:
-
Dry and Damp Location
-
Optional cord:
-
quick connect wire/regular wire
-
Certification:
-
ETL
-
OPERATINNG TEMP:
-
-35℃ to +55℃

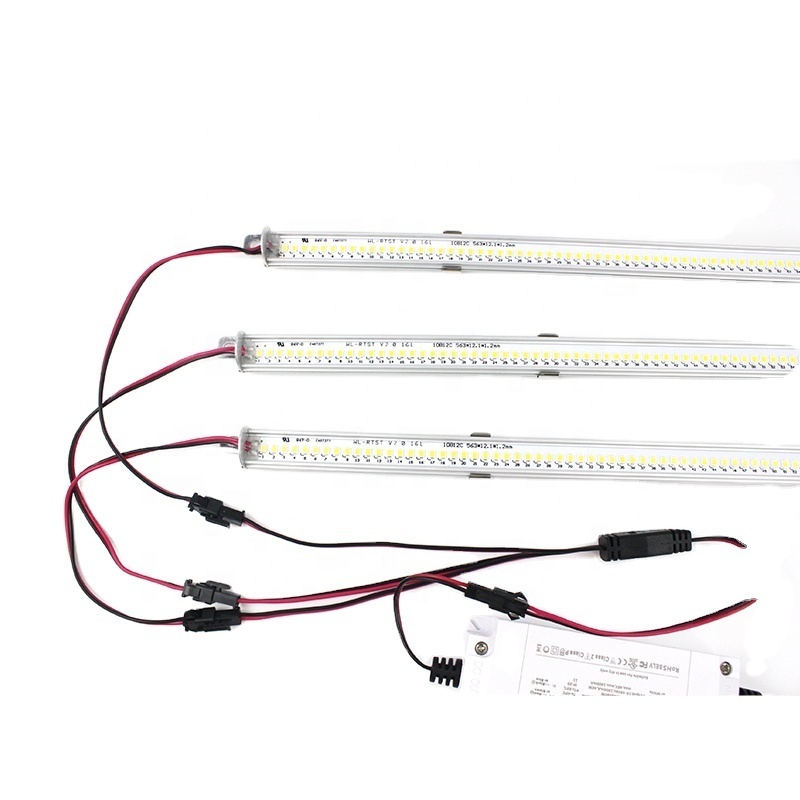

High Luminous Efficiency Quick Connector Led Strip Magnetic
|
|
WL-RT ST124 |
WL-RT ST230 |
WL-RT ST240 |
WL-RT ST345 |
WL-RT ST460 |
WL-RT ST480 |
WL-RT ST2120 |
WL-RT ST2230 |
WL-RT ST2340 |
|
SIZE |
4ft |
2ft |
|||||||
|
INPUT WATTS |
24W |
30W
|
40W
|
45W
|
60W
|
80W
|
20W
|
30W
|
40W
|
|
INPUT VOLTAGE |
AC100-277V |
||||||||
|
LED TYPE |
SMD2835 |
||||||||
|
DELIVERED LUMENS |
3000Lm |
3750Lm |
5000Lm |
5625Lm |
7500Lm |
10000Lm |
2500Lm |
3750Lm |
5000Lm |
|
LUMENS EFFICIENCY |
125-130Lm/W |
||||||||
|
DRIVER |
UL Class II |
||||||||
|
COLOR TEMP.(K) |
4000k,450k,5000k |
||||||||
|
PC COVER |
Optional clear or frost |
||||||||
|
DIMMING |
1-10V |
||||||||
|
CRI |
>80 |
||||||||
|
POWER FACTOR |
>0.98 |
||||||||
|
OPERATINNG TEMP |
-35℃ to +55℃ |
||||||||
|
HUMIDITY |
Dry and Damp Location |
||||||||
|
CERTIFICATION |
ETL |
||||||||
|
WARRANTY |
5 years |
||||||||
|
OPTIONAL INSTALL |
Magnet/Screw |
||||||||
|
OPTIONAL CORD |
quick connect wire/regular wire |
||||||||
|
PACKAGE |
23x21x22.5/60 strips /ctn,14.14KG |
63.5x21x18.5cm/ 45strip/ctn,6.68KG |
|||||||
