Quick Details
-
Model Number:
-
pressure transmitter
-
Product name:
-
m12x1 pressure transmitter
-
Long term stability:
-
≤ 0.1% FS/year
-
Process connection:
-
G1/2", G1/4",1/4" NPT, 1/8" NPT
-
Insulation resistance:
-
≥500MΩ/500VDC
-
Rise time:
-
≤1ms
-
Vibration:
-
20g, 20Hz ~ 2000H (IEC60068-2-6)
-
Application:
-
Viscous medium/Sanitary/food
-
Certification:
-
ISO
-
Protection grade:
-
IP65
Quick Details
-
Warranty:
-
12months
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
AKS
-
Model Number:
-
pressure transmitter
-
Product name:
-
m12x1 pressure transmitter
-
Long term stability:
-
≤ 0.1% FS/year
-
Process connection:
-
G1/2", G1/4",1/4" NPT, 1/8" NPT
-
Insulation resistance:
-
≥500MΩ/500VDC
-
Rise time:
-
≤1ms
-
Vibration:
-
20g, 20Hz ~ 2000H (IEC60068-2-6)
-
Application:
-
Viscous medium/Sanitary/food
-
Certification:
-
ISO
-
Protection grade:
-
IP65

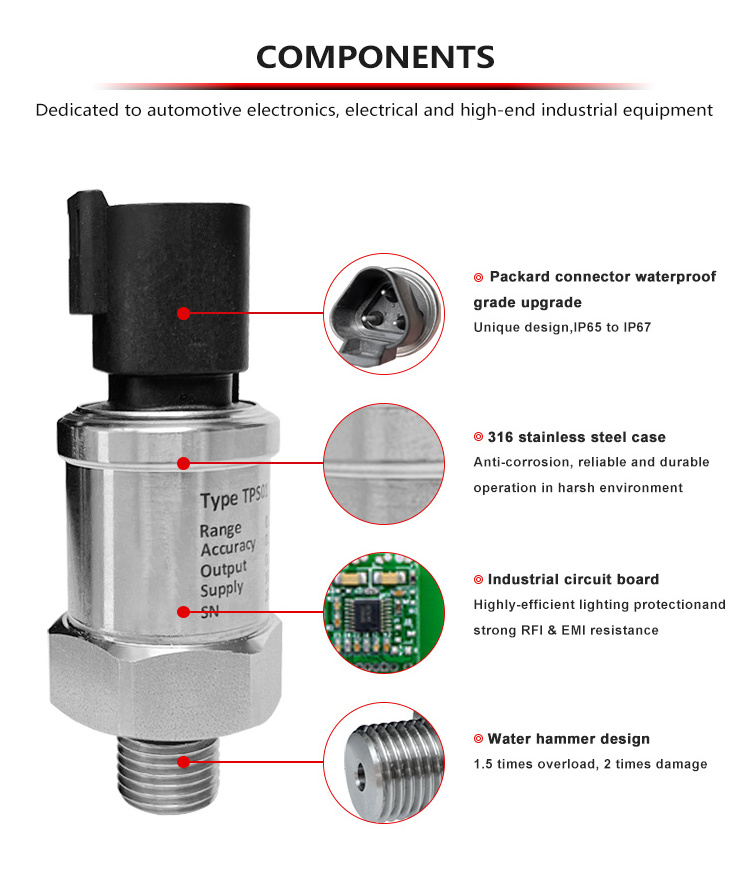

Flush diaphragm m12x1 pressure transmitter 7/16-20unf 4-20ma
Specification
|
Flush diaphragm m12x1 pressure transmitter 7/16-20unf 4-20ma
|
|
|
|
Product Name
|
||
|
Operating temperature
|
-40°C…+125°C
|
|
|
Accuracy
|
±0.5% FS (±0.25% FS Optional)
|
|
|
Long term stability
|
≤ 0.1% FS/year
|
|
|
Durability
|
10 million times)
|
|
|
EMC protection
|
Emission (IEC 61000-6-3) Immunity (IEC 61000-6-2)
|
|
|
Vibration
|
tainless steel/brass (customizable)
|
|
|
Shock
|
100g, 6ms (IEC60068-2-27)
|
|
|
Measuring range
|
0 ~ 5bar… 2,500bar
|
|
|
Pressure Range
|
-1Bar(-30"Hg)-01000Bar(15000Psi(customizable)
|
|
|
Insulation resistance
|
≥500MΩ/500VDC
|
|
|
Rise time
|
≤1ms
|
|
|
Sensor
|
17-4PH
|
|
