Quick Details
-
Material:
-
HDPE(polyolefin)
-
color:
-
red, blue, yellow, transparent
-
color class:
-
milk trnasparent
-
Shrink Ratio:
-
3:1
-
Certificate:
-
RohS UL SGS
-
Minimium Shrink Temperature:
-
80℃
-
minimium fully insulated temperature:
-
200℃
-
Feature:
-
water proof, flexible, stable,electric conduction
-
Product name:
-

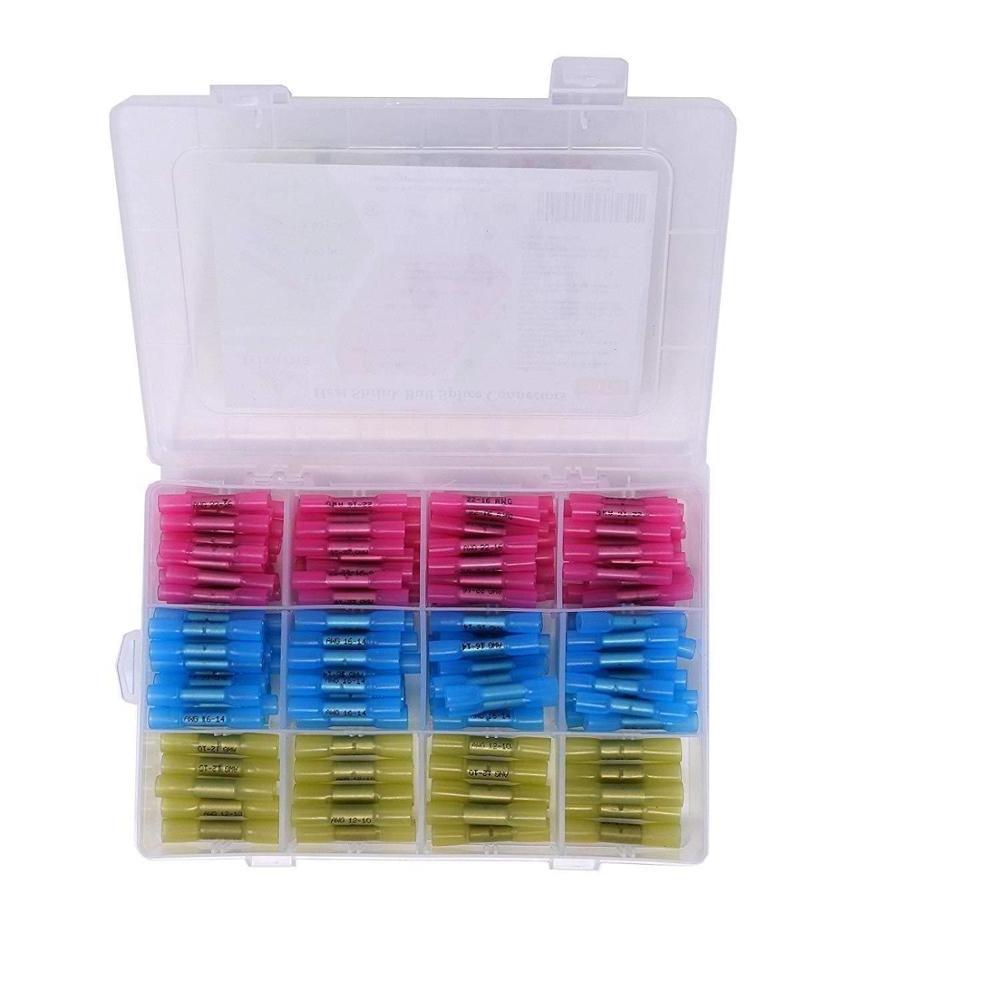

Heat Shrink Butt Connectors
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HP
-
Model Number:
-
HP-DS-06
-
Material:
-
HDPE(polyolefin)
-
color:
-
red, blue, yellow, transparent
-
color class:
-
milk trnasparent
-
Shrink Ratio:
-
3:1
-
Certificate:
-
RohS UL SGS
-
Minimium Shrink Temperature:
-
80℃
-
minimium fully insulated temperature:
-
200℃
-
Feature:
-
water proof, flexible, stable,electric conduction
-
Product name:
-
Heat Shrink Butt Connectors
Product Exhibition
Technical Data
| Property | Specification Requirement | Test Method | Typical Value |
| Tensile strength (Room temp.) | Min. 10.4Mpa | UL224 | 17.2Mpa |
| Elongation at break (Room temp.) | Min. 200% | UL224 | 280% |
| Tensile strength after aging (158℃ 168hrs) | Min. 7.3Mpa | UL224 | 11.5Mpa |
| Elongation after aging (158℃ 168hrs) | Min. 100% | UL224 | 200% |
| Voltage withstand (Un-aged) | Withstand 2.5kV for 1 minute and breakdown | UL224 | Pass |
| Voltage withstand (Aged) |
Withstand at least half of un-aged breakdown
voltage for 1 minute and breakdown |
UL224 | Pass |
| Copper corrosion (158℃ 168hrs) | No corrosion of bare copper | UL224 | No sign of deg. |
| Copper stability (158℃ 168hrs) | No sign of degradation (min. elongation 100%) | UL224 | Pass |
| Cold bend (-30℃ 1hrs) | No crack | UL224 | Pass |
| Maximum secant modulus (2%) | 173Mpa | UL224 | Pass |
| Volume resistivity | Min. 1014Ω·m | UL224 | Pass |
| Heat shock (250℃ 4hrs) | No crack | ASTM D2671 | Pass |
| Dielectric strength | >15.8kV/mm | ASTM D2671 | >25kV/mm |
