Quick Details
-
Brand Name:
-
SUNVIM
-
Model Number:
-
YB3
-
Frequency:
-
50Hz
-
Frame size:
-
H63-355mm
-
Rated power:
-
0.12kW-315kW
-
Degrees of energy effiency:
-
IE2 (EC60034)
-
Installtion method:
-
B3.B5,B35,V1
-
Coling method:
-
IC411
-
Certification:
-
CE
Quick Details
-
AC Voltage:
-
380V 660V 380/660V
-
Warranty:
-
1 year
-
Place of Origin:
-
shandong,china
-
Brand Name:
-
SUNVIM
-
Model Number:
-
YB3
-
Frequency:
-
50Hz
-
Frame size:
-
H63-355mm
-
Rated power:
-
0.12kW-315kW
-
Degrees of energy effiency:
-
IE2 (EC60034)
-
Installtion method:
-
B3.B5,B35,V1
-
Coling method:
-
IC411
-
Certification:
-
CE
Product Introduction

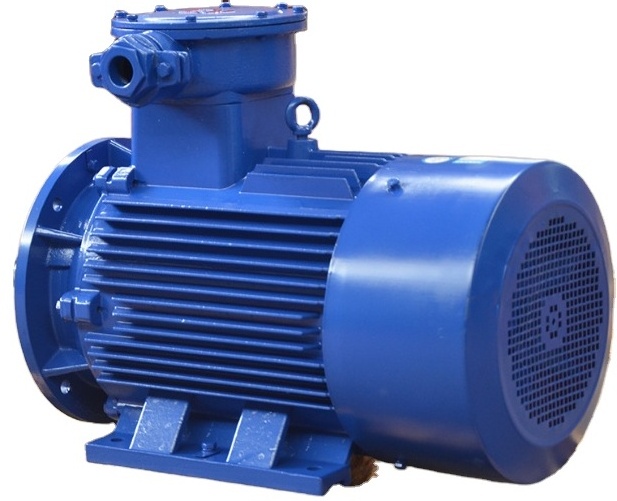

YB3 series explosion-proof three-phase induction motor is designed as updating product on the existing YB2,YB series.This series is made according to GB3836.1-2010"Explosive environment part 1:General requirements for equipment".GB3836.2-2010"Explosive environment part 2:Equipment protected by explosion-proof enclosure<d> "and JB/T 7565.1-2011"YB3 series explosion-proof three phase induction motor technical condition(frame no.63-355)", which summarize the experience and deficiencies of YB2 series. The explosion-proof marks include Exd
Ⅰ
Mb,Exd
Ⅱ
AT4Gb and Exd
Ⅱ
BT4Gb.The above series motor is suitable for the sites with explosive air mixture.ExdlMb can be used for environment under the coal mine with explosive mixture of methane or coal dust. For explosive environment under temperature group T1,T2,T3,T4, ExdlIAT4Gb is applicable to factories class Il grade A and ExdIBT4Gb applicable to factories class ll grade B.
product show
|
1.
|
Oil Seal
|
12.
|
Cable Gland
|
|
2.
|
0uter Bearing Cap
|
13.
|
Eyebolt
|
|
3.
|
Endshield
|
14.
|
Nameplate
|
|
4.
|
Seal Gasket
|
15.
|
Stator
|
|
5.
|
Mounting Plate
|
16.
|
Key
|
|
6.
|
Terminal Bolt
|
17.
|
Wave Spring
|
|
7.
|
Terminal Set
|
18.
|
Rotor
|
|
8.
|
Terminal Box Base
|
19.
|
Inner Bearing Cap
|
|
9.
|
Type O Sealing Ring
|
20.
|
Bearing
|
|
10
|
Terminal Box Lid
|
21.
|
Fan
|
|
11.
|
Sealing Ring
|
22.
|
Fan Cowl
|
product Parameters
