Quick Details
-
Application:
-
Apartment
-
Design Style:
-
Minimalist
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BPM
-
Model Number:
-
0.5mm Geomembrane Liner
-
Material:
-
100% Vigrin HDPE
-
Thickness:
-
0.2mm-3mm
-
Width:
-
5.0-8.0m
-
Length:
-
50-200m
-
Color:
-
Black White Green Blue
-
Certificates:
-
GAI LAP,ISO,,CE,BV,TUV
-
Standard:
-
ASTM GRI-GM13
-
Sample:
-
3 Days
-
Lifespan:
-
10-30 Years
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training
-
Project Solution Capability:
-
graphic design, 3D model design
-
Application:
-
Apartment
-
Design Style:
-
Minimalist
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BPM
-
Model Number:
-
0.5mm Geomembrane Liner
-
Material:
-
100% Vigrin HDPE
-
Thickness:
-
0.2mm-3mm
-
Width:
-
5.0-8.0m
-
Length:
-
50-200m
-
Color:
-
Black White Green Blue
-
Certificates:
-
GAI LAP,ISO,,CE,BV,TUV
-
Standard:
-
ASTM GRI-GM13
-
Sample:
-
3 Days
-
Lifespan:
-
10-30 Years
Best sales 0.5mm Geomembrane Liner HDPE Price for Aquaculture in Philippines
HDPE Geomembrane Liner , also called shrimp pond liner, are the high quality environmental protection HDPE liner. This kind of aquaculture liner not only has no effect on the water quality, but also has a good anti-seepage function.
| Item | Unit | Standard | Test Frequency | BM75 | BM10 | BM15 | BM20 | BM30 | |
| Mechanical Properties | Thickness | mm | D5199 | per roll | 0.75 | 1.00 | 1.50 | 2.00 | 3.00 |
| Density | g/cc | D1505/D792 | 90,000 kg | 0.94 | |||||
| Tensile Properties | |||||||||
| yield strength | kN/m | D 6693 Type IV | 9,000 kg | 11 | 15 | 22 | 29 | 44 | |
| break strength | kN/m | 20 | 27 | 40 | 53 | 80 | |||
| yield elongation | % | 12 | 12 | 12 | 12 | 12 | |||
| break elongation | % | 700 | 700 | 700 | 700 | 700 | |||
| Tear Resistance | N | D 1004 | 20,000 kg | 93 | 125 | 187 | 249 | 374 | |
| Puncture Resistance | N | D 4833 | 20,000 kg | 240 | 320 | 480 | 640 | 960 | |
| Stress Crack Resistance | hr. | D 5397 | per GRI GM-10 | 300 hr. | |||||
| Carbon Black Content | % | D 4218 | 9,000 kg | 2.0-3.0% | |||||
| Reference Propertied | Oxidative Induction Time | ||||||||
| (a) Standard OIT | min | D 3895 | 90,000 kg | 100 min. | |||||
| (b) High Pressure OIT | D 5885 | 400 min. | |||||||
| Oven Aging at 85°C retained after 90 days | % | D 5721 | |||||||
| (a) Standard OIT – % | D 3895 |
per each
formulation |
55% | ||||||
| (b)High Pressure OIT– % | D 5885 | 80.0% | |||||||
| UV Resistance | |||||||||
| High Pressure OIT – % retained after 1600 hrs | % | D 5885 | per each formulation | 50% | |||||
| Roll Size | Roll Width | m | 7 | 7 | 7 | 7 | 7 | ||
| Roll Length | m | 280 | 210 | 140 | 105 | 70 | |||
| Size stability | % | 2% | |||||||
Why does the Geomembrane Liner have such good anti-seepage performance ?
Because anti-seepage pond liner manufacturer uses the raw materials which are non-toxic, tasteless, odorless particles, and their melting point is about 110 ℃ to 130 ℃, relative density is from 0.918 to 0.965, so the fish pond liners have good heat resistance and cold resistance. It has good chemical stability, high rigidity and toughness, good mechanical strength and good resistance to environmental stress cracking and tear strength performance. As the density increases, mechanical properties and the blocking performance, heat resistance and tensile strength will improve accordingly.In addition, it can resist acid, alkali, organic solvent and so on.
Our Philippines customer contacted us for fish pond liners, we sent the pond liner samples and product information to hime in time. After Two weeks later, he confirmed the quality of our Geomembrane Liner, then signed order contract and construction contract soon.
Specifications of Geomembrane Liner HDPE Price for Aquaculture
Thickness:1.0mm
Specifications:6*44*28 pieces, 6*53*17 pieces, 6*55*15 pieces, 6*57*22 pieces, 6*60*11 pieces, 6*95*20 pieces
Total 40,632 square meters
Delivery cycle: 4 weeks
Geomembrane Liner is widely used for canal, aquaculture, irrigation ponds and remediation liners, other liner applications include landfills, waste water treatment lagoons, oil and gas exploration, power plants, etc.

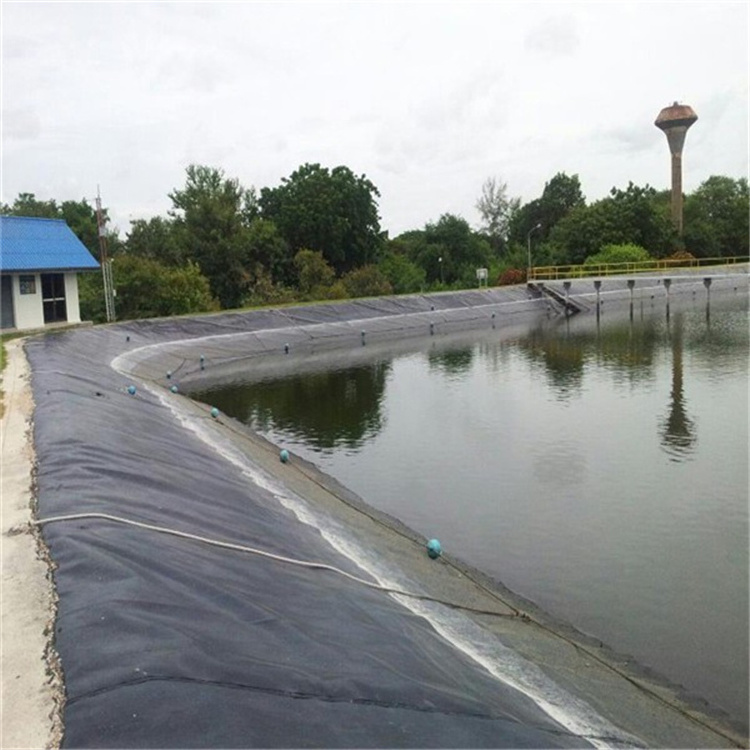

Aquaculture. Geomembrane Liner can be used as fish ponds, shrimp pond and other aquacultures.
Landfills. Bottom Geomembrane Liner , landfill sealing cover, leachate regulating pool liner, etc.
Water Treatment System . Geomembrane Liner is applied to the adjustment of the power plant and sewage treatment pool or water treatment system.
Mining.Geomembrane Liner is applied for mining industry as washing pool, pool heap leaching, heap yard, dissolving tank, storage tank, the bottom of the tailing seepage control, etc.
Other Applications . Geomembrane Liner is used as Environment protection and sanitation, water conservancy, municipal projects, landscaping, petrochemical industry, salt industry, agriculture, etc.
For Geomembrane Liner :
1
.
We have obtained SASO, SONCAP, BV, ISO and other certificates.
And we also have passed DEKRA, Intertek, CNAS and other tests.
Our quality is reliable.If you have any other test or certificate, we can do it for you.
2 . BPM is t he leading and innovative geomembranes and geosynthetics develoPoly r, manufacturer, wholesaler and exporter since 2007.Over 10 years of industrial exPoly rience.
High qualified products and comPoly titive factory price is our key point to win the market.
3. One stop solution for all your custom environmental, civil and industrial geomembranes and geosynthetics lining products and services.
4. Win with our partners. Our innovative and state of the art products and successful project cases spread over 36 countries.
For Geomembrane Liner :
We can make sure the Purchase with Convenience, Security, and Extended Support
Multiple payment methods are supported,we secure your payment to make sure the business safely!
Welcome to visit our factory!
Face-to-face talk in different exhibition!
For Geomembrane Liner :
Packing with double layers woven geotextile.
If you have any requests, we will package products as your request.
All products will be loaded container safely.
