Quick Details
-
No-Load Speed:
-
1400 Bpm
-
Warranty:
-
1 year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Pawacker
-
Model Number:
-
TCA-7
-
Name:
-
Jack hammer
-
model:
-
TCA-7
-
Weight:
-
7.2kg
-
Working Pressure:
-
0.4~0.49Mpa
-
Packing:
-
carton case
-
Air pipe inner dia.:
-
19mm
-
Rammar stroke:
-
120mm
Quick Details
-
Type:
-
Air Hammer
-
Average Air Consumption:
-
20L / S
-
Maximum Torque:
-
Adjustable
-
No-Load Speed:
-
1400 Bpm
-
Warranty:
-
1 year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Pawacker
-
Model Number:
-
TCA-7
-
Name:
-
Jack hammer
-
model:
-
TCA-7
-
Weight:
-
7.2kg
-
Working Pressure:
-
0.4~0.49Mpa
-
Packing:
-
carton case
-
Air pipe inner dia.:
-
19mm
-
Rammar stroke:
-
120mm

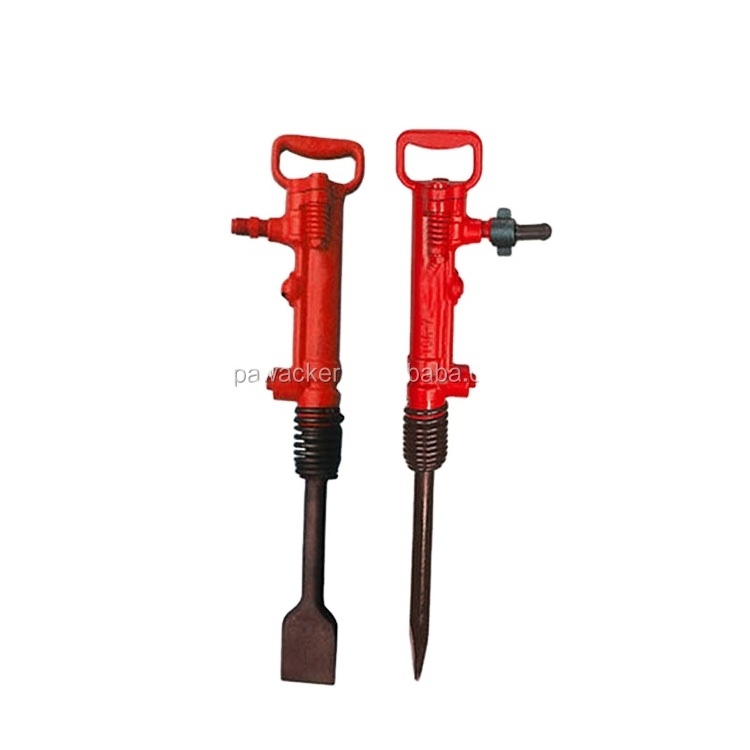

Martillo de mano TCA-7 Otras herramientas manuales para mineria Perforadora de roca
My company has product patent right for this model.
TCA-7 Pneumatic pick has the characteristic of m ature technology, durable, light weight, good performance and simple operation. It ’ s more lighter and flexible compared to the s imilar type of pick .
It s uitable for operating all - rounds of work, especially in narrow space or upper direction or high climbing is required.
| Model | TCA-7 |
| Weight | 7.2kg |
| Dimension: | 456*160*110mm |
| Rammar dia. | 35mm |
| Rammar weight | 0.6kg |
| Rammar stroke | 120mm |
| Work pressure | 0.4~0.49Mpa |
| Impact energy at 0.49Mpa | ≥30J |
| Impact frequency at 0.49Mpa | ≥21.6Hz |
| Air consumption at 0.49Mpa | ≤20L/S (1.2m³/min) |
| Air pipe inner dia. | 19mm |
