Customized stainless steel Industrial Heating Element Cartridge Heater Rod Cartridge Heaters Electrical Resistance
Customized stainless steel Industrial Heating Element Cartridge Heater Rod Cartridge Heaters Electrical Resistance
Customized stainless steel Industrial Heating Element Cartridge Heater Rod Cartridge Heaters Electrical Resistance
Customized stainless steel Industrial Heating Element Cartridge Heater Rod Cartridge Heaters Electrical Resistance
Customized stainless steel Industrial Heating Element Cartridge Heater Rod Cartridge Heaters Electrical Resistance
Customized stainless steel Industrial Heating Element Cartridge Heater Rod Cartridge Heaters Electrical Resistance
Customized stainless steel Industrial Heating Element Cartridge Heater Rod Cartridge Heaters Electrical Resistance
Customized stainless steel Industrial Heating Element Cartridge Heater Rod Cartridge Heaters Electrical Resistance

Customized stainless steel Industrial Heating Element Cartridge Heater Rod Cartridge Heaters Electrical Resistance

FOB Reference Price: Get Latest Price
≥10 Pieces
US $8
≥100 Pieces
US $7
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
China
Brand Name:
MICC
Dimension(L*W*H):
Custom Size
Weight:
KG
Core Components:
heating element
Application:
Industry Heating Process
Tube Diametre:
3mm-30mm
Insulation Material:
High purity mgo powder
Heating wire:
NICR
Lead way:
inside or external
Normal wire length:
500mm or Customized
Types:
High power density /middle power density
Certification:
CE ROHS

Quick Details

Type:
high /medium density
Power Source:
Electric
Voltage:
Customized
Place of Origin:
China
Brand Name:
MICC
Dimension(L*W*H):
Custom Size
Weight:
KG
Core Components:
heating element
Application:
Industry Heating Process
Tube Diametre:
3mm-30mm
Insulation Material:
High purity mgo powder
Heating wire:
NICR
Lead way:
inside or external
Normal wire length:
500mm or Customized
Types:
High power density /middle power density
Certification:
CE ROHS
Product Description

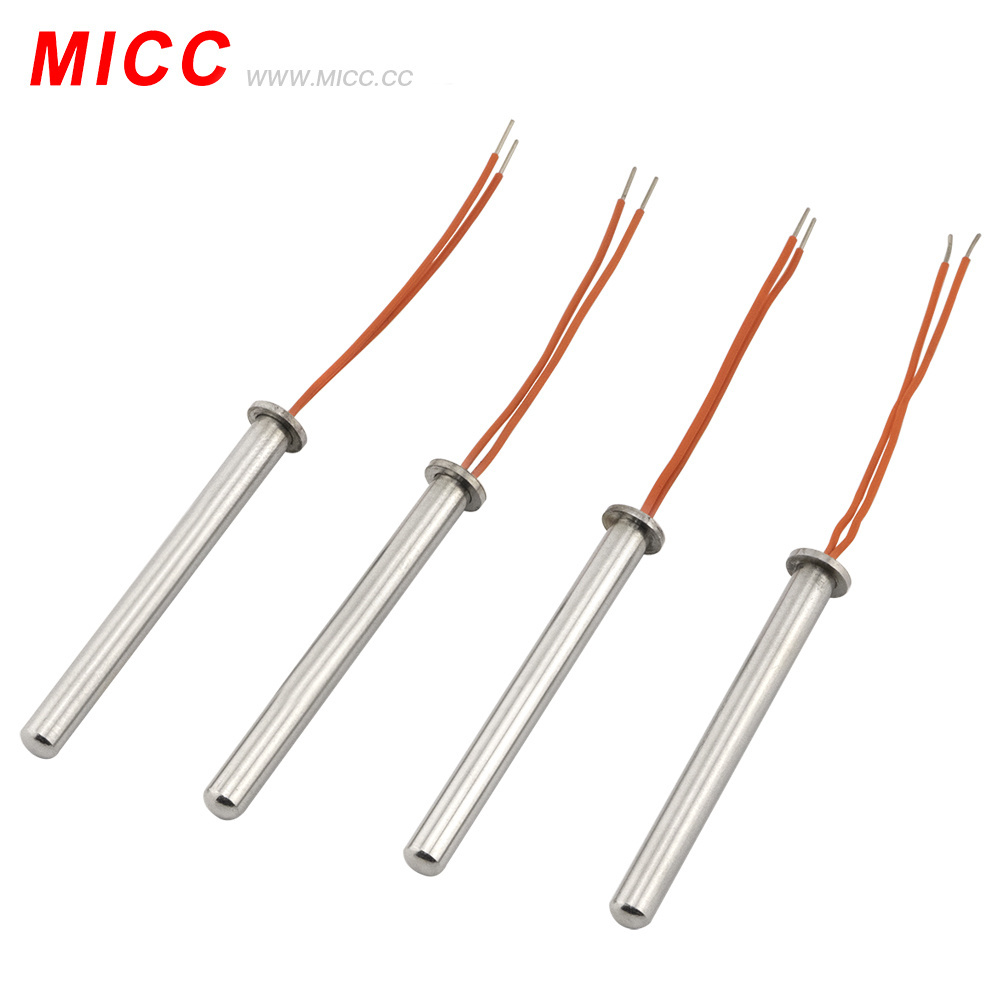

Customized stainless steel Industrial Heating Element Cartridge Heater Rod Cartridge Heaters Electrical Resistance

Description

Electric heater cartridge is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080),High temperature leads, seamless stainless steel sheath(304,321,316,800,840) . usually in tube form,

that is used in heating applications by way of insertion into metal blocks via a series of drilled holes. Cartridge heaters are manufactured in two basic forms - high density and low density.
High density cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.

Application

· Injection moulding - Internal heating of nozzles

· Hot runner systems - Heating of manifolds

· Packaging industry - Heating of cutting bars

· Packaging industry - Heating of hot stamps

· Laboratories - Heating of analytical equipment

· Medical : Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy

· Telecommunications : Deicing, Enclosure Heater

· Transportation : Oil/Block Heater, Aircraft Coffee Pot Heaters,

· Food Service : Steamers, Dish Washers,

· Industrial : Packaging Equipment, Hole Punches, Hot Stamp.

Technical data

Industrial heater

Immersion cartridge water heater with thermocouple

Resistance heating wire

NiCr 80/20 wire

Sheath

stainless steel 304,321,316, Incoloy 800, Incoloy 840

Maximum temperature

800 degree Celsius

Wattage Tolerance

+5%, -10%

Resistance tolerance

+10%, -5%

Voltages available

380V,240V, 220V,110V,36V,24V or 12V

Length tolerance

±1 mm

Diameter tolerance

-0.02mm

Standard Cold Zone

5-10mm

Delivery time

7-10 working days

Insulation resistance (cold)

≥ 500 MΩ

Maximum leakage current (cold)

≤ 0.5 mA

Thermocouple Location

type J

type K

Advantage

1. Low MOQ : It can meet your promotional business very well.

2. OEM Accepted : We can produce any your design as long as you provide us the drawing.

3. Good Service : We treat clients as friend.

4. Good Quality :We have strict quality control system .Good reputation in the foreigner market

5. Fast & Cheap Delivery : We have big discount from forwarder (Long Contract)
