4 cylinders power system, low fuel consumption High traction,
Good climbingability, strong transport capacity.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
MAP
-
Weight (KG):
-
4000 kg
-
Volume:
-
1000 - 3000L
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Manufacturer:
-
Weifang Map Power Company
-
Rated Loading Weight:
-
5000kg
-
dumper bucket:
-
2CBM
-
engine:
-
Weichai 4102 4 cylinder diesel engine
-
Dumper Steering:
-
Hydraulic steering
-
Certification:
-
CE
-
wheel drive type:
-
4*4 wheel drive
-
Product name:
-
mini dumper
Quick Details
-
Engine Capacity:
-
5900
-
Size:
-
7430*2400*2950
-
Gross Vehicle Weight:
-
4000
-
Place of Origin:
-
China
-
Brand Name:
-
MAP
-
Weight (KG):
-
4000 kg
-
Volume:
-
1000 - 3000L
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Manufacturer:
-
Weifang Map Power Company
-
Rated Loading Weight:
-
5000kg
-
dumper bucket:
-
2CBM
-
engine:
-
Weichai 4102 4 cylinder diesel engine
-
Dumper Steering:
-
Hydraulic steering
-
Certification:
-
CE
-
wheel drive type:
-
4*4 wheel drive
-
Product name:
-
mini dumper

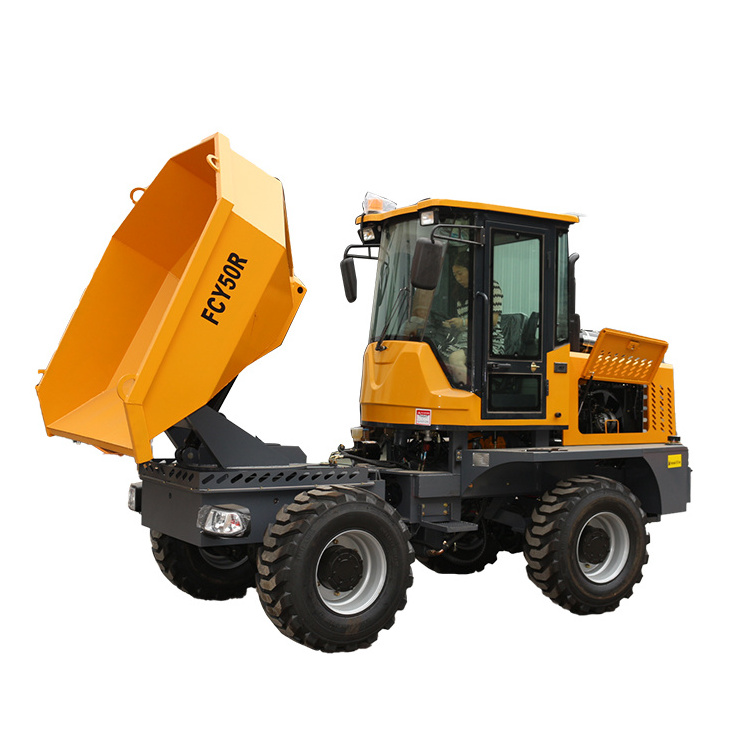

Hot Selling 5 Ton Mini Loader Self Loading Dumper 4X4 Fcy50R Site Dumper Mini Dumper Mini Trucks With Ce
|
Specifications of FCY50/FCY50R/FCY50S
|
|
|
||
|
1
|
Payload
|
5000kg
|
||
|
2
|
Operating weight
|
3450kg/FCY50S is 3750s
|
||
|
3
|
Hopper capacity
|
2.0m³
|
||
|
4
|
Maximum speed
|
25.2 km/h
|
||
|
5
|
Handbrake available on grade
|
18%
|
||
|
6
|
Max grade ability
|
25%
|
||
|
7
|
Distance of road after brake
|
≤2.5m with load and speed 10km/h
|
||
|
8
|
Minimum turn radius
|
4 m
|
||
|
9
|
Ground clearance
|
248 mm
|
||
|
10
|
Noise level
|
≤108 db(A)
|
||
|
11
|
Loading discharge angle
|
48.4
|
||
|
12
|
Time of discharge
|
6s
|
||
|
13
|
Hydraulic pressure
|
16 Mpa
|
||
|
14
|
Wheel base
|
2200 mm
|
||
|
15
|
Wheel tread
|
1580 mm
|
||
|
16
|
Engine power
|
47KW
|
||
|
17
|
Dimensions (LxWxH)
|
4400x2100x2700 mm
|
||
|
Engine
|
Model/Maker
|
4102
|
||
|
|
Type
|
Diesel 4 stroke engine, 4-cylinder incline, direct fuel injection, water cooled
|
||
|
|
Bore x stroke piston
|
100 x 102 mm
|
||
|
|
Power
|
47KW
|
||
|
|
Speed
|
2400 R/Min
|
||
|
|
Max t
|
120@2100v/p
|
||
|
|
Weight
|
350 kg
|
||
|
Transmission system
|
|
|
||
|
Hydraulic Torque Converter
|
|
2 Forward and 2 reverse gears
|
||
|
Type
|
|
power shift, spur gear constantly in mesh
|
||
|
Model
|
|
265
|
||
|
Torque ratio
|
|
3.06
|
||
|
System pressure
|
|
160(kgf/c㎡)
|
||
|
Type
|
|
3-elements.single stage
|
||
Hydraulic lifting and unloading, reduce labor intensity and
improve transportationefficiency.
The seat with arm rest, seat belts, safe and comfortable, ease driving.
CONTROL PANEL
Humanized design operation panel, multi-use structure,simple and clear operation.
TIRE
Stable and durable with long life, suitable for kinds of road condition.
MACHINE PARTS
In-line, water-cooled, 4 cylinders, Diesel engine.Deutz Engine also
available for the dumper.
FRONT TIPPING
BUCKET
Self loading optional.Rotating Bucket Optional.Multifunctional, small turn radicus can be used in narrow.
Weifang MAP Import & Export Co., Ltd. was established in 2006. Our factory with staff number of 100 persons, among them 20 are technical engineers,20 are professional sales persons and after-sales service persons. We have been set up our own research institute.
We are manufacturer for site dumper wheel loaders backhoe loader disc mowers tractor with front end loaders and etc.
We have excellent teams who focus on product development &design, quality control & inspection and company running. In order to supply the satisfactory products and services, we have built a modern quality management system which is in strict accordance with international standards.
Will continue to take high quality, low cost and globalization as its strategic goals, integrate innovation, and create a world-class brand and the world's most competitive engineering machinery, agricultural equipment manufacturing base.
Now the production capacity of our factory is 1000 units per year. At present, some of products have passsed CE certification and ISO9001 quality system.
We have had a reliable reputation among our customers because of our professional services, quality products and competitive prices. We warmly welcome customers from at home and abroad to cooperate with us. We are looking forward to receiving your inquiries.
1.How can I place order?
A: You can contact us by email about your order details, or place order on line.
2.How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T or start order from Alibaba trade assurance.
3.Are you factory supplier?
A: Yes, we are real factory supplier for over 17 years, own a super technical team to serve adjusting design for customers.
4.Which brand engine do you have for site dumpers?
A: We company choose good quality engine for site dumpers, Changchai, Xichai, Weichai Power engine/ cummins engine/ Deutz diesel engine and so on optional.
5.What's the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you a Pl for your confirmation. You will be requested to do prepaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15 days if we don't have the iterms in stock. Before production has been finished, we will contact you for shipment dletails, and the balance payment. After payment has been settled. we start to prepare the shipment for you.
More details please ask us online or send inquiry to us, we will answer first
time.
