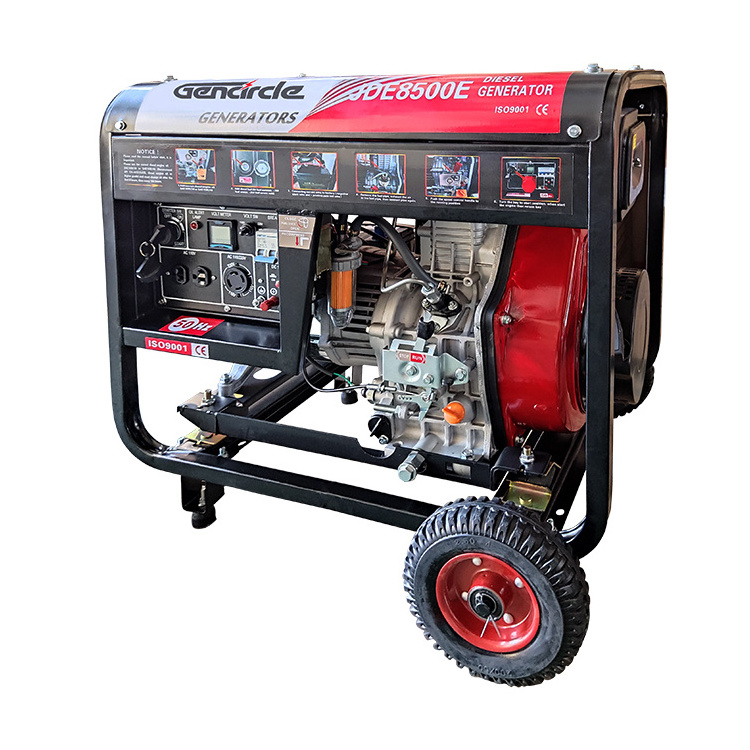

Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GENCIRCLE
-
Model Number:
-
JDE8500
-
Speed:
-
3000rpm or 3600rpm
-
Engine Type generator diesel:
-
Air cooled engine
-
Fuel tank capacity generator diesel:
-
15L fuel tank
-
Type generator diesel:
-
Open / Silent
-
Alternator generator diesel:
-
Brush alternator
-
Digital control panel generator diesel:
-
Electric control panel
-
Options system generator diesel:
-
ATS ,Remote system
-
Cylinder number generator diesel:
-
single cylinder
-
Color generator diesel:
-
Yellow /Red
-
Certificate generator diesel:
-
ISO9001: 2008 / CE ,BV
-
Warranty generator diesel:
-
1 year
-
Certification:
-
ISO CE
Quick Details
-
Rated Voltage:
-
110/120/220/230/380/400 Volts
-
Rated Current:
-
20--200Amps
-
Frequency:
-
50HZ/60HZ
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
GENCIRCLE
-
Model Number:
-
JDE8500
-
Speed:
-
3000rpm or 3600rpm
-
Engine Type generator diesel:
-
Air cooled engine
-
Fuel tank capacity generator diesel:
-
15L fuel tank
-
Type generator diesel:
-
Open / Silent
-
Alternator generator diesel:
-
Brush alternator
-
Digital control panel generator diesel:
-
Electric control panel
-
Options system generator diesel:
-
ATS ,Remote system
-
Cylinder number generator diesel:
-
single cylinder
-
Color generator diesel:
-
Yellow /Red
-
Certificate generator diesel:
-
ISO9001: 2008 / CE ,BV
-
Warranty generator diesel:
-
1 year
-
Certification:
-
ISO CE
Product Description
|
Model
|
JDE3500SE
|
JDE6500SE
|
JDE7500SE
|
JDE8500SE
|
JDE9500SE
|
||||
|
Rated frequency (Hz)
|
50 60
|
50 60
|
50 60
|
50 60
|
50 60
|
||||
|
Rated output (kVA)
|
2.8 3.3
|
4.5 5.0
|
5.0 5.5
|
5.5 6.0
|
6.0 6.5
|
||||
|
Max. output (kVA)
|
3.2 3.8
|
5.0 5.5
|
5.5 6.0
|
6.0 6.5
|
6.5 7.0
|
||||
|
Rated Voltage (V)
|
230 120/240
|
230 120/240
|
230 120/240
|
230 120/240
|
230 120/240
|
||||
|
Rated current (A)
|
12.2 27.5/13.8
|
19.6 41.7/20.8
|
21.7 45.8/22.9
|
23.9 50/25
|
26 54/27
|
||||
|
Rated rotation speed
|
3000 / 3600 rpm
|
|
|
|
|
||||
|
Phase NO.
|
Single phase
|
Single phase
|
Single phase
|
Single phase
|
Single phase
|
||||
|
Excitation mode
|
Self-excitation & constant voltage (AVR)
|
|
|
|
|
||||
|
Receptacle
|
Two receptacles
|
Two receptacles
|
Two receptacles
|
Two receptacles
|
Two receptacles
|
||||
|
Noise level(7m)dB(A)
|
60
|
60
|
65
|
65
|
65
|
||||
|
Structure type
|
Silent frame
|
|
|
|
|
||||
|
Engine Model
|
KM178FG
|
KM186FAG
|
KM188FG
|
KM188FG
|
KM192FG
|
||||
|
Engine Type
|
Single cylinder, vertical, four-stroke, direct injection,air-cooled
|
|
|
|
|
||||
|
Rated power [KW/(r/min)]
|
3.68/3000 4.0/3600
|
5.7/3000 6.3/3600
|
7.5/3000 8.2/3600
|
7.5/3000 8.2/3600
|
8.0/3000 9.2/3600
|
||||
|
Compression ratio
|
20:01
|
19:01
|
19:01
|
19:01
|
19:01
|
||||
|
Lubrication system
|
Pressure splashed
|
Pressure splashed
|
Pressure splashed
|
Pressure splashed
|
Pressure splashed
|
||||
|
Starting system
|
Electric Start
|
|
|
|
|
||||
|
Fuel type
|
0#(summer)-10#(winter)-35#(chillness)diesel
|
|
|
|
|
||||
|
Lube oil brand
|
CD grade or SAE10W-30,15W-40
|
|
|
|
|
||||
|
Lube capacity (L)
|
1.1
|
1.65
|
1.65
|
1.65
|
1.65
|
||||
|
Charging generator capacity (V-A)
|
12V 3A
|
12V 3A
|
12V 3A
|
12V 3A
|
12V 3A
|
||||
|
Battery capacity (V-Ah)
|
12V 36Ah
|
12V 36Ah
|
12V 36Ah
|
12V 36Ah
|
12V 36Ah
|
||||
|
Fuel tank capacity (L)
|
13.5
|
13.5
|
13.5
|
13.5
|
13.5
|
||||
|
Continuous running time (hr)
|
8.5
|
5.5
|
5.5
|
5.5
|
5.5
|
||||
|
Packing size MM
|
930×530×740
|
|
|
|
|
||||
|
G.Weight
|
155
|
160
|
163
|
165
|
170
|
||||
|
Loading quantity @ 20GP
|
72 pcs
|
72 pcs
|
72 pcs
|
72 pcs
|
72 pcs
|
||||
Certifications
Warranty policy
Our product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator .
