Quick Details
-
Warranty:
-
2 years, Two years
-
Brand Name:
-
Bonve
-
Model Number:
-
65BV12-10
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
5.5HP
-
Structure:
-
Rotary Lobe Pump
-
Outlet Size:
-
DN50
-
Power:
-
4kW
-
Theory:
-
Positive displacement Pump
-
Product name:
-
Rotary lobe pump
-
Rotor type:
-
Tri-lobe, butterfly lobe, single-wing
-
Seal type:
-
Mechamical seal
-
Connection:
-
Flange, screw or clamp
-
Contact Materia:
-
SS304, 316, 316L
-
Driving type:
-
Fixed speed or variable speed
-
Flow rate:
-
1.2Mpa
Quick Details
-
Application:
-
Food and Beverage Industry, Metal and Equipment Manufacturers, Pharmaceutical industry, Washing and Cleaning
-
Pressure:
-
High Pressure
-
Voltage:
-
220V-240V, 380V-690V
-
Warranty:
-
2 years, Two years
-
Brand Name:
-
Bonve
-
Model Number:
-
65BV12-10
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
5.5HP
-
Structure:
-
Rotary Lobe Pump
-
Outlet Size:
-
DN50
-
Power:
-
4kW
-
Theory:
-
Positive displacement Pump
-
Product name:
-
Rotary lobe pump
-
Rotor type:
-
Tri-lobe, butterfly lobe, single-wing
-
Seal type:
-
Mechamical seal
-
Connection:
-
Flange, screw or clamp
-
Contact Materia:
-
SS304, 316, 316L
-
Driving type:
-
Fixed speed or variable speed
-
Flow rate:
-
1.2Mpa
Description

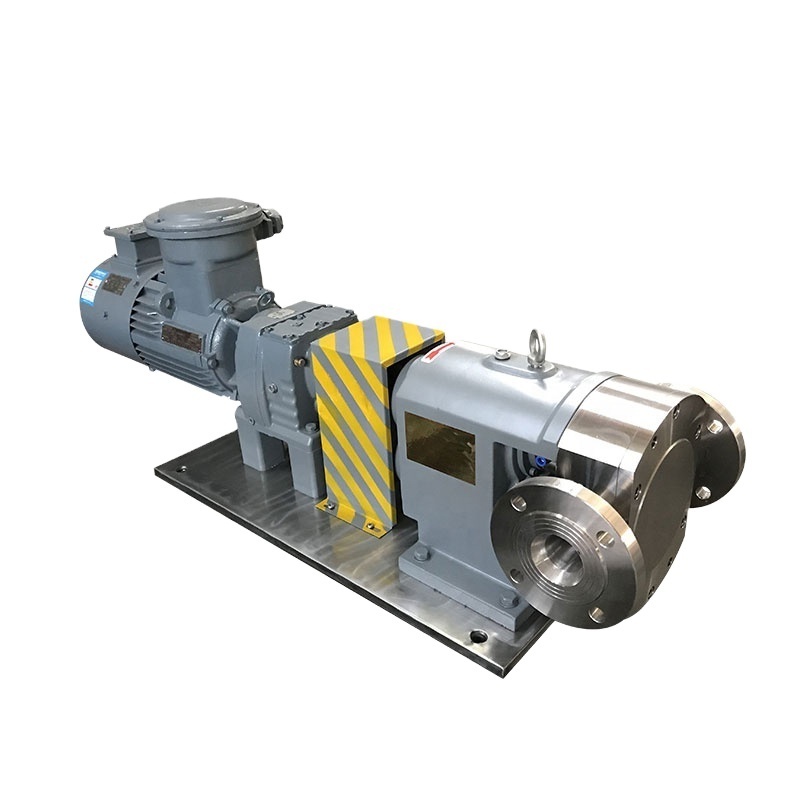

Bonve Industrial positive displacement rotary lobe pump
. It is a high efficiency industrial displacement pump. The pump has a wide range of viscosity adaptations. It has the characteristics of low speed, high efficiency, stable operation, strong self-priming ability, convenient operation and preheating of the pump. The pump adopts advanced sealing, reliable performance and long service life.
Product Details
The even rotation of the rotor pair creates a vacuum on the priming side of the pump, which can be defined by the direction of rotation of the drive. This vacuum draws the liquid into the pump chamber. With further rotation, the pumped medium is conveyed past the pump wall into the pressure area.
|
Model
|
Displace
-ment
(L/r)
|
Rotation
speed
(r/min)
|
Flow
rate
(M³/h)
|
Discharge
Pressure
(Mpa)
|
Electrical
power
(Kw)
|
Suction
Pressure
(Mpa)
|
Inlet
&outlet
(mm)
|
|
25BV12-05
|
0.06
|
10-1000
|
0-0.5
|
0-1.2
|
0.37-1.1
|
-0.080
|
25
|
|
40BV12-2
|
0.15
|
10-1000
|
0-2
|
0-1.2
|
0.75-2.2
|
-0.080
|
40
|
|
50BV12-5
|
0.32
|
10-800
|
0-5
|
0-1.2
|
1.5-4
|
-0.080
|
50
|
|
65BV12-10
|
0.65
|
10-600
|
0-10
|
0-1.2
|
2.2-7.5
|
-0.085
|
65
|
|
80BV12-20
|
1.74
|
10-500
|
0-20
|
0-1.2
|
4-15
|
-0.095
|
80
|
|
90BV12-30
|
2.60
|
10-500
|
0-30
|
0-1.2
|
5.5-22
|
-0.095
|
100
|
|
100BV12-40
|
3.65
|
10-550
|
0-40
|
0-1.2
|
7.5-30
|
-0.095
|
100
|
|
125BV12-50
|
4.60
|
10-500
|
0-50
|
0-1.2
|
7.5-37
|
-0.095
|
125
|
|
140BV12-70
|
6.10
|
10-500
|
0-70
|
0-1.2
|
11-45
|
-0.095
|
150
|
|
150BV12-80
|
7.63
|
10-550
|
0-80
|
0-1.2
|
11-55
|
-0.095
|
150
|
|
200BV12-120
|
11.56
|
10-400
|
0-120
|
0-1.2
|
15-75
|
-0.095
|
200
|
|
250BV12-150
|
14.22
|
10-400
|
0-150
|
0-1.2
|
18.5-90
|
-0.095
|
250
|
|
300BV12-200
|
20.8
|
10-300
|
0-200
|
0-1.2
|
22-110
|
-0.095
|
300
|
|
350BV12-300
|
32.6
|
10-250
|
0-300
|
0-1.2
|
45-160
|
-0.095
|
350
|
|
400BV12-400
|
50.4
|
10-250
|
0-400
|
0-1.2
|
55-200
|
-0.095
|
400
|
Notes:
1. Tested medium: water. Your liquid's density, viscosity and temperature are necessary to supply when choose the pump.
2. Speed, flow rate, electrical power and pressure will be varified according to different liquid properties.
3. Port size can be changed as needed.
4. Pump big sizes required pls consult us.
Customer Worksite
Factory Workshop Showing
Why Us
---
More than 20 years of expertise and technical know how (since 2001).
---
We design, R&D and produce.
---
We have obtained 30 patents, such as invertion patents, utility model patents.
---
ISO9001:2015 approved company, CE certified pumps.
---
Own one set of full automatically pump testing system, over 65 sets of advanced CNC machines, including mills, borers, lathes, drillers, grinders, machining centers etc. and a variety of precise inspection equipment.
---
A team of senior sales engineers who help end-users solve their problems happened during the design stage to the finish products.
---
Customers we served from various industries more than 4,000 including food, beverages, daily chemicals, pharmacy, pulp and paper, coating and painting, oil and gas, biotechnology etc.
Tips before your order
1. About the price
The price indicated on the product is for
Bare shaft lobe pump with model of 65BV12-10
. Below are the main technical parameters
---
Type: bare shaft pump
---
Model:
65BV12-10
---
Displacement: 0.65L/r
---
Contact material: SS304
---
Seal type: mechanical seal
---
Connection: 65mm, clamp
If need the price for complete pump, pls contac us and tell your transferred
liquid name, viscosity, temperature, working capacity and pressure required
. We will offer you a targeted solution.
2. About the shipping way and transportation cost
The price indicated on the product is shipping cost included to Asian countries, and transported by sea. Air shipping is an optional.
