Quick Details
-
Span:
-
Customizable
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Power crane(BW)
-
Weight (KG):
-
1600 kg
-
Power Source:
-
3 Phase 380V 50hz/Custmized
-
Work Duty:
-
A3-A5
-
Protection Grade:
-
IP54/55
-
Safety Device:
-
Current Overload Protection
-
Operation Methods:
-
Pendant +Remote(Customized)
Quick Details
-
Max. Lifting Height:
-
Customizable
-
Rated Lifting Moment:
-
Customizable
-
Max. Lifting Load:
-
1.6ton
-
Span:
-
Customizable
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Power crane(BW)
-
Weight (KG):
-
1600 kg
-
Power Source:
-
3 Phase 380V 50hz/Custmized
-
Work Duty:
-
A3-A5
-
Protection Grade:
-
IP54/55
-
Safety Device:
-
Current Overload Protection
-
Operation Methods:
-
Pendant +Remote(Customized)

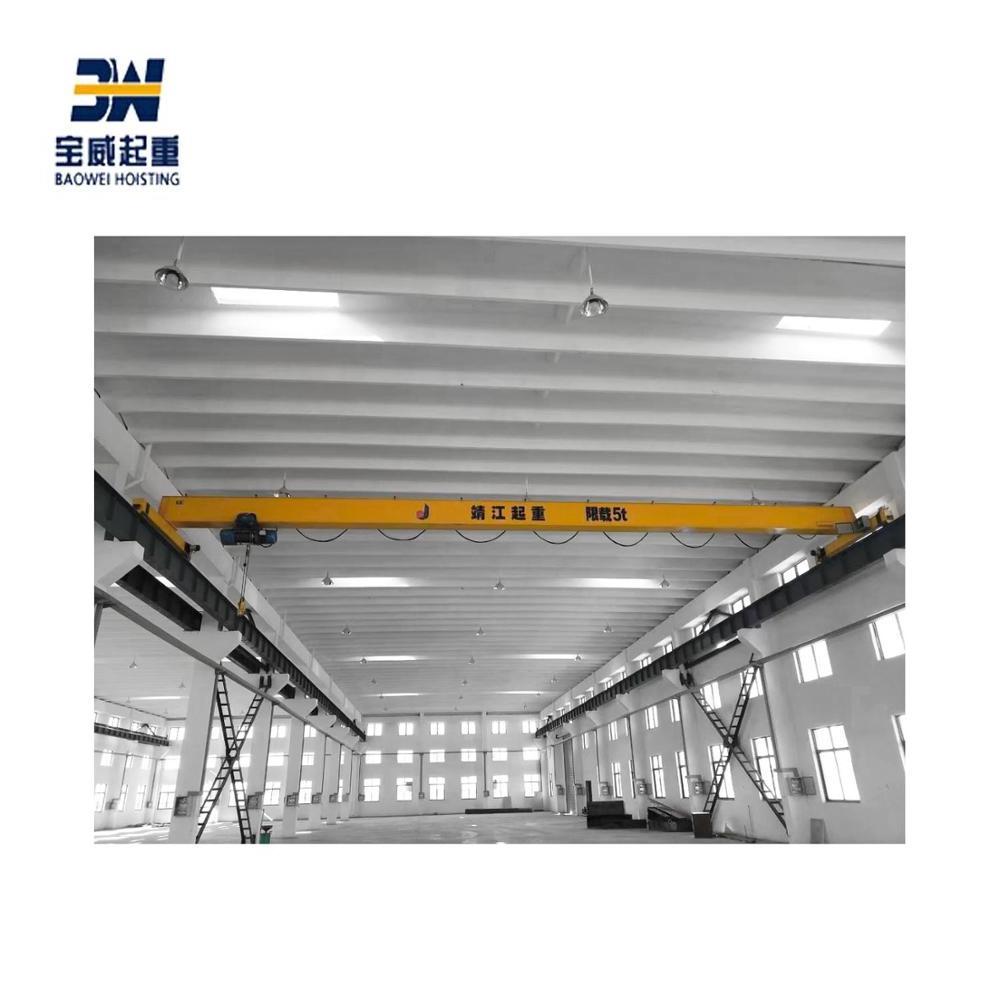

High Performance Industrial European Design Overhead Crane With Hoist 1.6 ton
Advantages
Main Girder
1. European box girde( light weight ):Q345B
2. whole slab without butt weld(stronger than the spliced );
3. High accuracy;
4. D erusting grade: Sa2.5;
5. Painting: epoxy zinc-rich paint ,120 um thick;
End Beam
1. M aterial: S355J2G3/EN10025 (Fe52D, equivalent to Chinese standard 16Mn)
2. ANC boring and milling machine to ensure dimensional accuracy and tolerance;
3. Equipped with double-rim wheel, buffer and anti-derailment protection device,
which ensures safety;
4. 10.9 grade high strength bolts to ensure the structural strength and accuracy;
Hoist
1. Effectively improve the lifting space up to 1 meter;
2. Four-in-one integrated design(motor+brake+reducer+limit switch) ;
3. H igh transmission efficiency ;
4. High assembly accuracy;
5. Maintenance-free;
6. Work level is A5,;
7. protection level IP55;
8. H insulation;
9. Dust and waterproof;
Electrical Control System
1. Schneider/CHINT electric components is up to 5 million times;
2. Service life: 5 million times;
3. Schneider vector frequency converter(reduce sloshing and accurate positioning);
4. Built-in continuous protection;
5. Voltage loss protection;
6. Short circuit protection;
7. Overheating protection;
8. Overload protection;
9. Overspeed protection;
10. Limit protection;
11. Protection level IP55(waterproof, dust-proof protection);
12. No hidden danger of disconnection.
1. Condition of working ( working place, include hanged products size and frequency )
2. Lifting capacity
3. Free span/gauge
4. Cantilever and useable cantilever length
5. Hook height from top of rail
6. Working class
7. Protection class
8. Working temperature
9. Power supply
|
Cantilever crane(jib crane) Lift capacity: 225kg~20000kg Radius of gyration: 5m~12m Lifting height: 3m~12m Working class: A3~A5 Rotation angle: 270 ° ~ 360 ° Operation mode : Wireless remote
Application: short distance handling and intensive lifting
|
||
|
Gantry crane(MGB) Lift capacity: 5ton~50ton Span : 16m~35m Lifting height: 9m~18m Working class: A3/A5 Operation mode : Wireless remote and cab
Application: loading, unloading and handling in open places.
|
||
|
Single girder overhead crane(LDX) Lift capacity: 1ton~20ton Span : 7.5m~35m Lifting height: 6m~30m Working class: A5 Operation mode : Wireless remote
Application: indoor use
|
||
|
Double girder overhead crane(QD) Lift capacity: 20ton~160ton Span : 7.5m~35m Lifting height: 6m~30m Working class: A3~A7 Operation mode : Wireless remote and cab
Application: It can be used for lifting molten metal and metallurgical casting places
|
||
|
Container gantry crane(Split type) Lift capacity: 40ton L*W*H: 5055×2655×6320 (mm) Max. height of lifting beam : 4660mm Working class: A5 Operation mode : Wireless remote
Application: Handling and tipping of containers
|
||
|
Container gantry crane(one-piece) Lift capacity: 40ton L*W*H: 6782×5133×8767 (mm) Max. height of lifting beam : 5549mm Working class: A5 Operation mode : Wireless remote
Application: Handling and tipping of containers
|
