Quick Details
-
Size:
-
12380*2500mm
-
Place of Origin:
-
Henan, China
-
Product name:
-
container flatbed semi trailer chassis
-
Function:
-
Transport containers
-
Color:
-
Customers Optional
-
Axle:
-
13 Ton HuaJun Brand
-
Tire:
-
12R22.5
-
Capacity:
-
40 Ton
-
Tractor:
-
Kinds
-
Main Beam:
-
T700/Q345 Steel
-
Suspension System:
-
Strength Supension
-
Main beam height:
-
500mm
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
40T
-
Brand Name:
-
CIMC HUAJUN
-
Size:
-
12380*2500mm
-
Place of Origin:
-
Henan, China
-
Product name:
-
container flatbed semi trailer chassis
-
Function:
-
Transport containers
-
Color:
-
Customers Optional
-
Axle:
-
13 Ton HuaJun Brand
-
Tire:
-
12R22.5
-
Capacity:
-
40 Ton
-
Tractor:
-
Kinds
-
Main Beam:
-
T700/Q345 Steel
-
Suspension System:
-
Strength Supension
-
Main beam height:
-
500mm
Product Description
Leading brand container flatbed semi trailer chassis
for transport 20ft 40ft containers
|
Item
|
Details
|
|
Size
|
12400mm length*2500mm width, details are according to the drawing.
|
|
Axle
|
13T axle, braking pad width 220mm, without ABS.
|
|
Tire
|
12R22.5
|
|
Leaf spring
|
10 pieces, 13mm thickness, 90mm width.
|
|
Suspension
|
CIMC HUAJUN standard type
|
|
Twist lock
|
12 set; can load 1*40', 2* 20' or 1*20' containers.
|
|
Braking system
|
2 lines air braking system with air tank, emergency relay valve, braking chambers and mechanical slack adjusters.
|
|
Electrical system
|
24 volt electrical system. 7 pin electrical connector. parking, stop, reverse, number plate and indicator lights. rear lights conform to European standard, rear, front and side reflectors.
|
|
Relay valve
|
WABCO brand, customers can also choose domestic brand.
|
|
Landing gear
|
One side operation 28T
|
|
Kingpin 3.5''
|
90# JOST bolted type
|
|
Chamber
|
T30/30 on front and middle two axles, T30 on rear axle.
|
|
Side beam
|
16# channel steel
|
|
Floor
|
3mm checkered plate
|
|
Cross beam
|
80*40 square tube
|
|
Tool box
|
CIMC HUAJUN factory standard
|
|
Shotblasting and paint
|
Chassis is completely shot blasting to SA 2.5 grade, and painted with final layer of international Zinc Epoxy primer (30 Microns DEF), second layer of international high built polyurethane under coat (40 micros DFT). Third and forth layers international alkyd finish top coat. total 80-100 microns.
|
|
Spare tire carrier
|
Factory standard
|
Similar Products by Customer Order
Packing&Shipping
Leading brand container flatbed semi trailer chassis
for transport 20ft 40ft containers

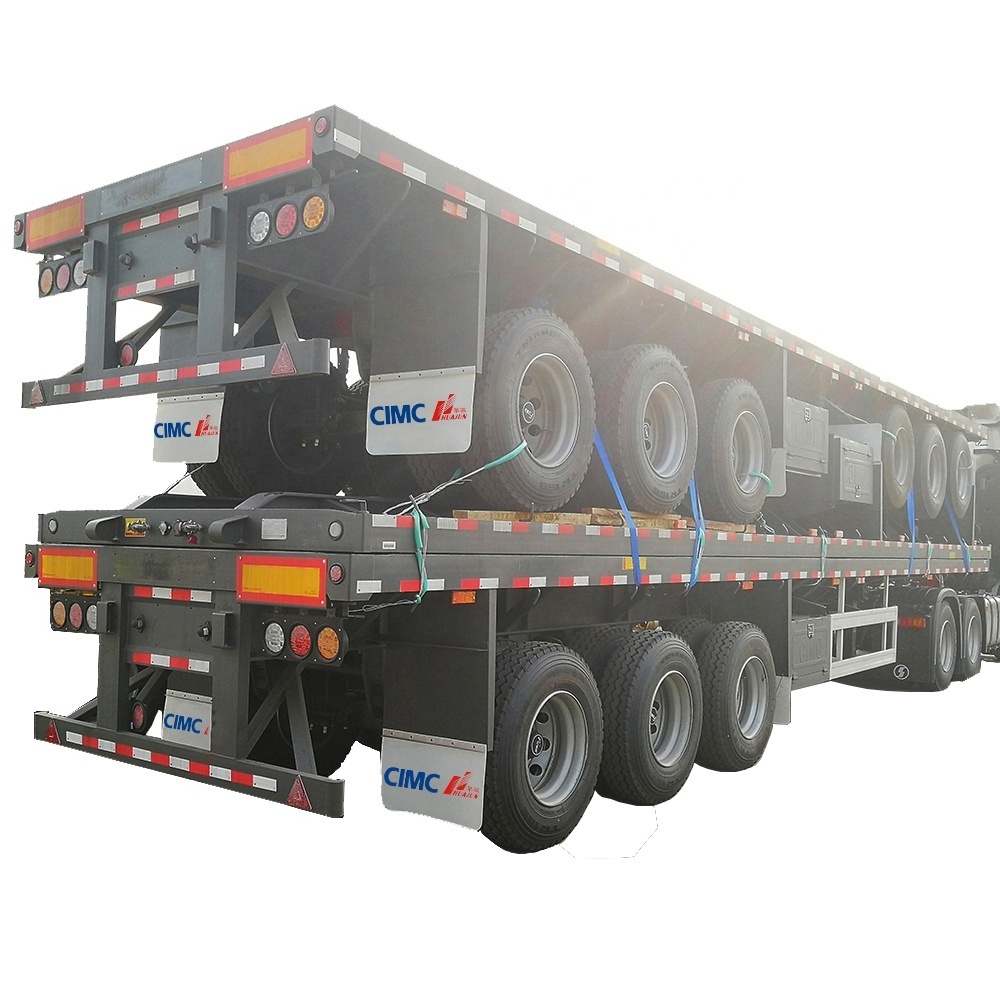

Waxed Packing by RO-RO or Vessel
1. One unit was shipped separately；
2. Two or units were packed as one set ;
Shipping by Containers
1. One or two units were packed in a container;
2. Shipping by containers via CKD or SKD;
Our Customers
Our factory was established in 1952, with more than 60 years' experience in trailer manufacturing industry, we make “CIMC HUAJUN” as the leading brand over the world
through years' unremitting efforts.
By now, our trailers were shipped
to more than
60
countries and area. S
uch as:
The Philippines, Vietnam, Laos, Myanmar, Thailand, Malaysia, Cambodia, Brunei, Singapore, Indonesia, Australia, Mongolia, Algeria, Ethiopia, Djibouti, Kenya, Tanzania, Rwanda, Mauritania, Mali, Guinea, Ghana, Chad, Nigeria, Gabon, Dr Congo, South Africa, Sudan, Mauritius, Uzbekistan, Kazakhstan, Bangladesh, Saudi Arabia, Egypt, Public of Costa Rica, Ukraine, etc.
More than 90% of our customers cooperated with our factory more than 15 years.
Write to customers:
Appreciated for each customer's trust.
We will never forget the mission and continue to provide
reliable trailers.
Our Supplier
Through the cooperation with famous brand suppliers, not only to ensure the quality of products, but also to sure the timeliness and reliability of after-sales service.
Our service
So far, we have visited more than 60 countries and regions to investigate the market demand and road conditions, and set up offices in many countries to make after-sales service more timely and easily.
In addition, we have built KD plant in Djibouti in 2018, which mainly serves the assembly of trailers for customers in Africa areas and provides technical and operational guidance.
Oversea Sales Team
Oversea Engineer Team
Certifications
Our Honor：
--China Well-Known Trademark
--Green Plants
--Intelligent Manufacturing Plant
--New High-tech Enterprise
--China Intellectual Property Advantage Enterprise
...
--Green Plants
--Intelligent Manufacturing Plant
--New High-tech Enterprise
--China Intellectual Property Advantage Enterprise
...
Our Certifications:
--CE
--CCC
--ISO
--TUV
--CCC
--ISO
--TUV
--SGS
...
...
Company Introduction
ZHUMADIAN CIMC HUAJUN VEHICLE CO., LTD., a joint venture company, located in ZHUMADIAN, HENAN, with convenient transportation, is a wholly-owned subsidiary of CIMC, one of the most important factories in CIMC VEHICLE GROUP. CIMC VEHICLE GROUP, as one of the nine CIMC major business sectors, comes to the world leadership position.
CIMC HUAJUN covers an area of 1.8 million square meters, total assets of USD 1.3 billion, about 2000 employees. Main products are semi-trailer, dump truck, tank trailer, box trailer, refrigerator truck or trailer, special purpose vehicle, etc. annual producing capacity of more than 65,000.00 units.
