Quick Details
-
Beam Angle(°):
-
35
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
12/24/220V
-
Lamp Luminous Flux(lm):
-
720
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20 - 45
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
ONN-M2
-
Brand Name:
-
ONN
-
Item Type:
-
Machine Tool Working Lamps
-
Light source:
-
7W / 9.5W
-
lifespan:
-
50000 Hours
-
Central Lux:
-
70cm: 1800-1900lux
-
Mounting:
-
Fixed by clamp and screws
-
Meterial of Frame:
-
Alumunium & Tempered glass
-
Arm Length:
-
190 / 270 / 370mm
-
Luminous Efficacy(lm/w):
-
80
Quick Details
-
Warranty(Year):
-
2-Year
-
Power Supply:
-
AC, DC
-
IP Rating:
-
IP65
-
Beam Angle(°):
-
35
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
12/24/220V
-
Lamp Luminous Flux(lm):
-
720
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20 - 45
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
ONN-M2
-
Brand Name:
-
ONN
-
Item Type:
-
Machine Tool Working Lamps
-
Light source:
-
7W / 9.5W
-
lifespan:
-
50000 Hours
-
Central Lux:
-
70cm: 1800-1900lux
-
Mounting:
-
Fixed by clamp and screws
-
Meterial of Frame:
-
Alumunium & Tempered glass
-
Arm Length:
-
190 / 270 / 370mm
-
Luminous Efficacy(lm/w):
-
80

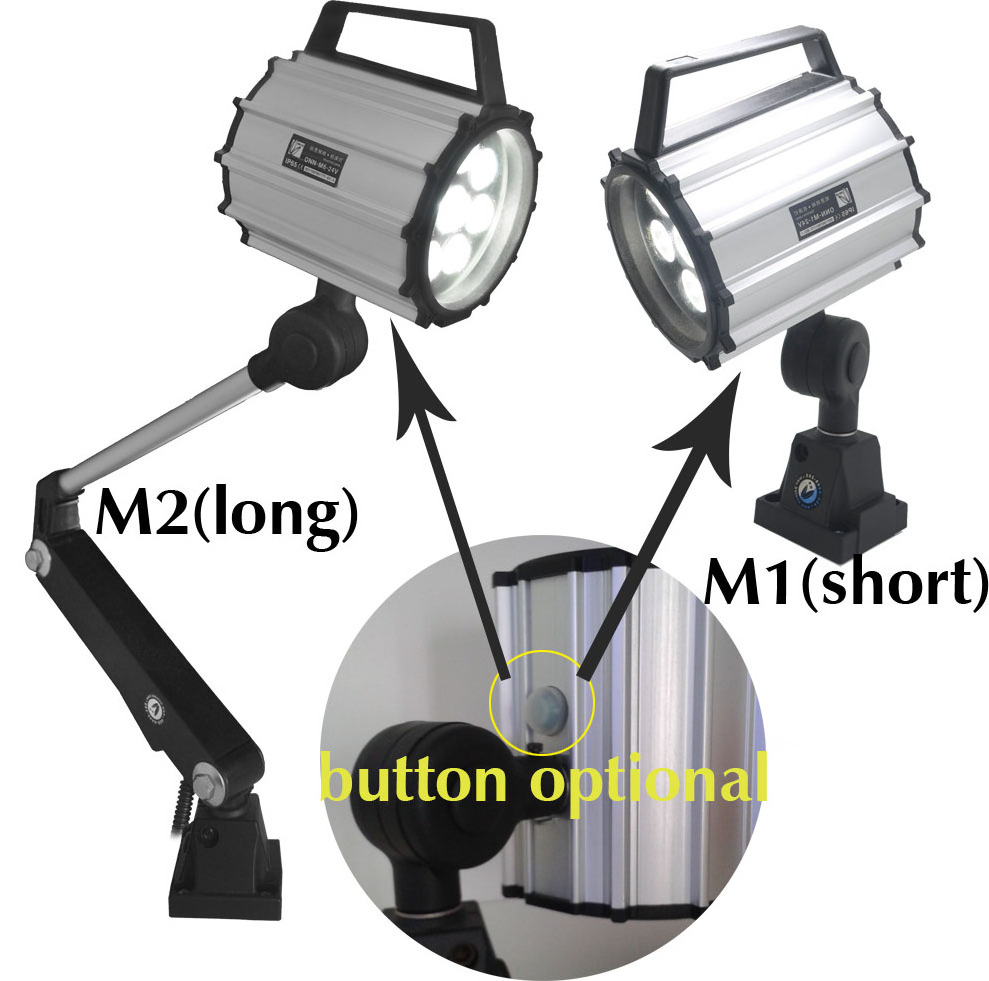

ONN-M2 24V/220V Mechanics work lamp & LED Machine Tool Light
Product Features :
| Brand | ONN | Surface Temperature | <50°C |
| Light source | 1-3W/PCS | Mounting | Fixed by clamp and screws |
| Lifespan of light source | 50000 hours | Place of Origi | Shenzhen China |
| Viewangle | 35° | CRI | 75% |
| Central LUX |
70cm: (7W)1400Lux / (9.5W)1800-1900Lux |
IP grade |
IP65 |
| Model | Power | Voltage | CCT |
| ONN-M2-B1-7 | 7W | DC24V | 5500-6000K |
| ONN-M2-B2-7 | 7W | DC24V | 4000-4000K |
| ONN-M2-B1-9 | 9.5W | DC24V | 5500-6000K |
| ONN-M2-B2-9 | 9.5W | DC24V | 4000-4500K |
| ONN-M2-C1-7 | 7W | AC100-240V | 5500-6000K |
| ONN-M2-C2-7 | 7W | AC100-240V | 4000-4500K |
| ONN-M2-C1-9 | 9.5W | AC100-240V | 5500-6000K |
| ONN-M2-C2-9 | 9.5W | AC100-240V | 4000-4500K |
Product Size Drawing :
Package Data :
|
P acking material |
Foam Bag+Innerbox + Carton Box |
|
Model Name |
ONN-M2 |
|
Net Weight / PC (Kg) |
1.5
|
|
Gross Weight / Cnt (Kg) |
18.5 |
|
Packing Qty (PCS) |
12 |
|
Inner box size ( L*W*H ) mm |
330*180*200 |
|
Outer box size ( L*W*H ) mm |
560*340*460 |
Application :
Machine interior lighting , C arved machine , Sparks machine .
All kinds of Numerically-controlled machine tool equipment. C enterless grinding machine .
Electrical discharge machine , Laser welder , Grinder , Work Bench and so on .
